Name: KR19-SK-PP-A INA
Brand: INA

Specifications

Availability 99 pcs
Brand INA
Item Number KR19-SK-PP-A INA
Manufacturer Part Number 0057440590000
EAN 4012802428261
Category Cam Follower

Weight and Dimensions

Inner (d) MM 8
Outer (D) MM 19
Width (B) MM 11
Inner (d) Inch 0.315
Outer (D) Inch 0.748
Width (B) Inch 0.4331
Weight (kg) 0.0285

Product Properties

Seal 2L - LS-seal at Both Sides
Excenterring Other Mounting Method
Running Surface Standard

Data from Schaeffler (medias)

Fit diameter of roller stud / stud (d 1) mm 8
Width of the roller stud (B) mm 32
Basic dynamic load rating, radial (C r w) 3550
Basic static load rating, radial (C 0r) 4100
Speed on permanent grease lubrication (n D G) 11000
ECLASS number 23-05-15-02
ECLASS2 number 23-05-15-02
Medias description Yoke type track roller KR..-SK-PP-A, with cage, with axial guidance, no eccentric

Suffix description

SK Stud Type Cam Follower, With Hexagonal Socket
PP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃
A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Downloads & Links

Link to manufacturer

Product description

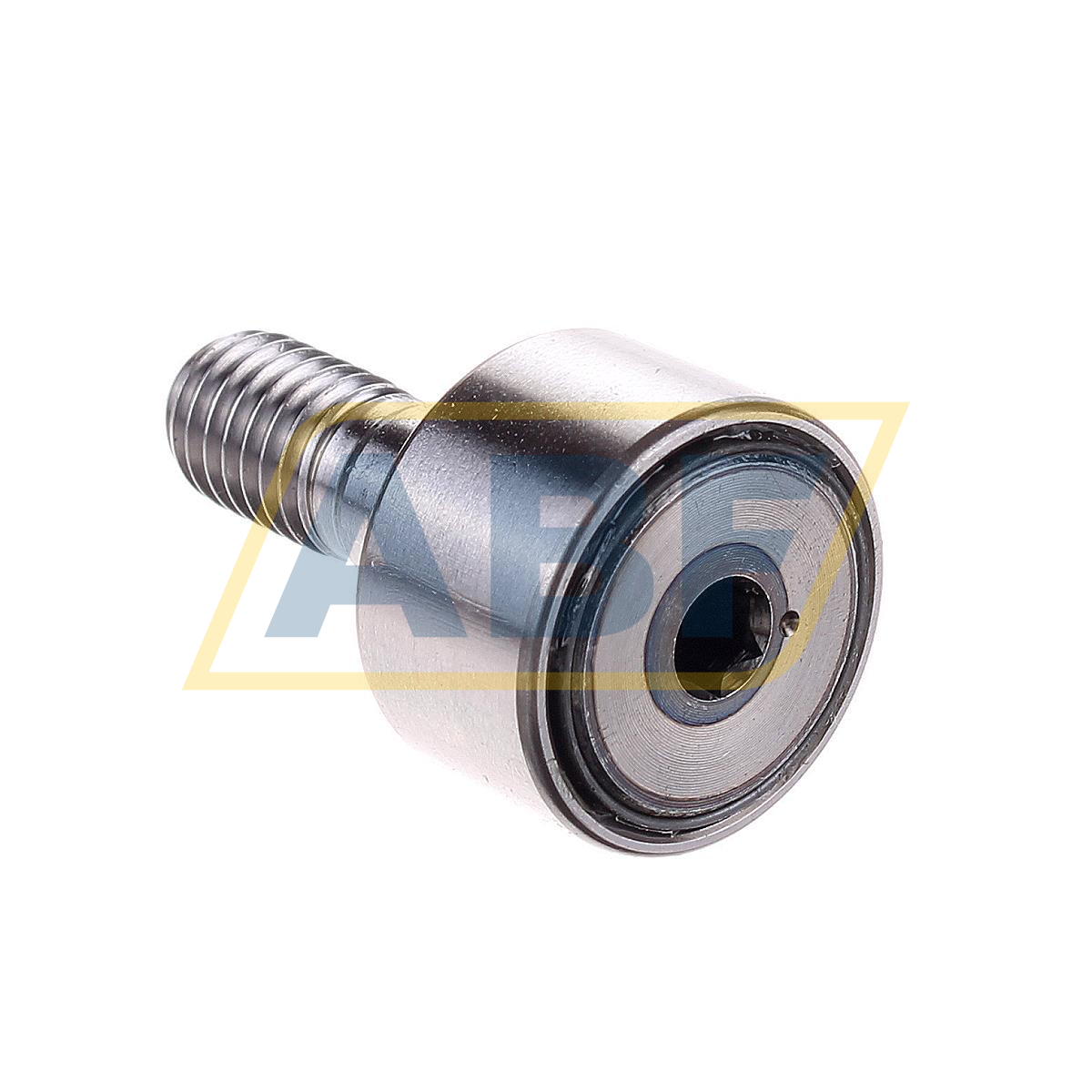

The KR19-SK-PP-A INA is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The KR19-SK-PP-A INA is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement cam followers, allowing for higher rotational speeds and less heat generation. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.

KR19-SK-PP-A INA

Cam Follower
