Also known as
N313ECP/C3
N313ETNGC3
N313-E-TVP2-C3
N313-E-XL-TVP2-C3
CategoryCylindrical Roller Bearing Single Row
Weight and Dimensions
Inner (d) MM
65,00
Outer (D) MM
140,00
Width (B) MM
33,00
Inner (d) Inch
2.5591
Outer (D) Inch
5.5118
Width (B) Inch
1.2992
Weight (kg)
2.24
Product Properties
Bore
C - Cylindrical Bore
Seal
No Seal
Cage Type
P - Plastic Molded Cage
External Modification
No External Modification
Radial Internal Play
C3 Internal Play (Higher than Cn)
Precision
Standard Precision
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Suffix description
EIncreased Load Capacity
TVP2Solid Window Cage Made From Glass Fibre Reinforced Polyamide PA66. Roller Riding
C3Internal Clearance Larger Than Normal
Product description

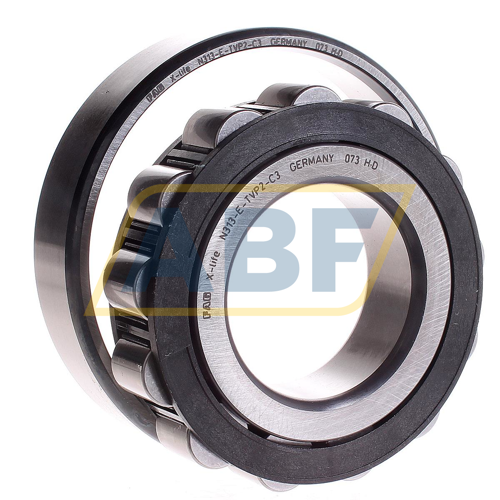

The N313E.TVP2.C3 FAG is a single-row cylindrical roller bearing with cage. This bearing consists of a solid inner and outer ring with cylindrical rollers in a cage. This cage prevents contact between the cylinder rollers, so this bearing type can support higher speeds than full-complement cylinder roller bearings. Also, single-row cylindrical roller bearings with cages are very rigid and they can take high radial forces. As the inner and outer rings of these bearings can be easily disassembled, they are very easy to install. Applications of single-row cylindrical roller bearings include gearboxes, agricultural machinery, pumps, compressors, and electric motors.
The N313E.TVP2.C3 FAG is a single-row cylinder bearing with N design. The inner ring has two rigid ribs, while the outer ring has none. As a result, N bearings are only capable of supporting radial forces. This bearing type is commonly used as a floating bearing. Floating bearings allow axial displacement of the shaft relative to the housing in both directions. This is necessary in applications where the shaft material shrinks or expands due to temperature changes (thermal expansion).
