Specifications
Availability4 pcs
BrandFAG

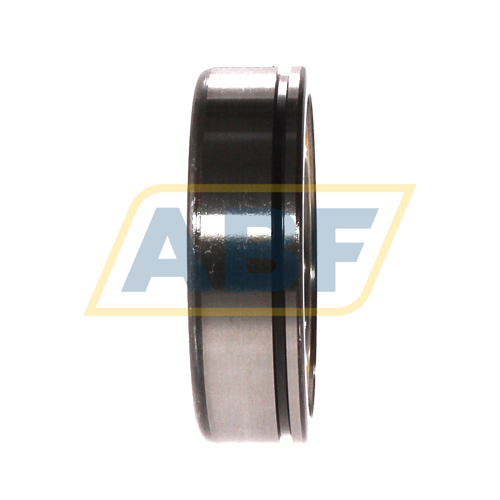

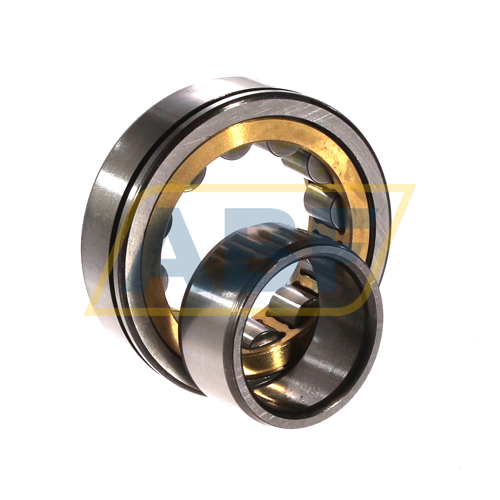

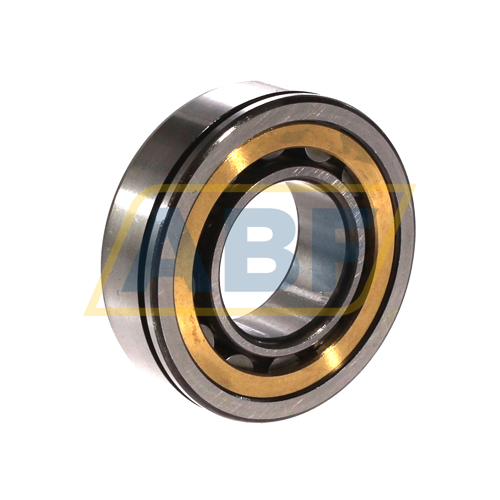

Item NumberNU205-E-N-MPA-F59-C3 FAG
Also known as
NU205-E-XL-N-MPA-F59-C3
CategoryCylindrical Roller Bearing Single Row
Weight and Dimensions
Inner (d) MM
25
Outer (D) MM
52
Width (B) MM
15
Inner (d) Inch
0.9843
Outer (D) Inch
2.0472
Width (B) Inch
0.5906
Weight (kg)
0.148
Product Properties
Bore
C - Cylindrical Bore
Seal
No Seal
Cage Type
MA - Brass Cage, Centered on Outer Ring
External Modification
N - Snap Ring Groove in Outer Ring
Radial Internal Play
C3 Internal Play (Higher than Cn)
Precision
A2 - Reduced Width Tolerance
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Suffix description
EIncreased Load Capacity
NSnap Ring Groove In The Outer Ring
MPAType Machined Brass Cage; Guidance By The Outer Ring (Housing)
F59Replaced By
H68Bearing And Bearing Parts For Voith Getriebe KG, Heidenheim; For Special Cage Design, Width Tolerance, Radial Runout And Bearing Clearance See Specifications
C3Internal Clearance Larger Than Normal
