Loading equivalents
Specifications
Availability100 pcs
BrandINA
Item NumberPE30-XL INA
Manufacturer Part Number0009493530000
Also known as
PE30
EAN4012802801996
CategoryBearings for Housings
Weight and Dimensions
Inner (d) MM
30
Outer (D) MM
72
Width (B) MM
37,2
Inner (d) Inch
1.1811
Outer (D) Inch
2.8346
Width (B) Inch
1.4646
Weight (kg)
0.48
Product Properties
Seal
2F - Standard Seal for Y-bearings
Lubrication
Standard Lubrication
Special Treatment
No Special Treatment
Data from Schaeffler (medias)
Width (U) mm
37,2
Radial Static Load Rating C0r (N)
11300
Radial Dynamic Load Rating Cr (N)
20700
ECLASS number
23-05-08-02
ECLASS2 number
23-05-08-02
Medias description

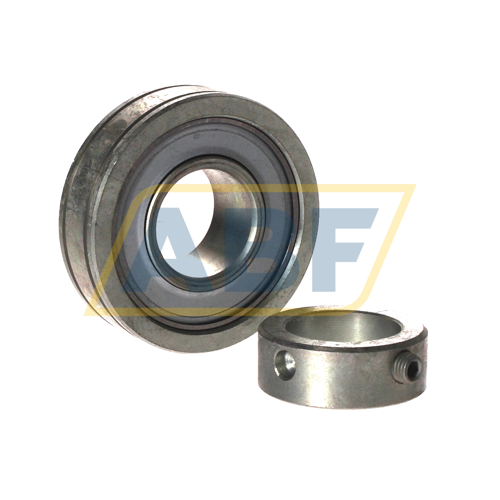

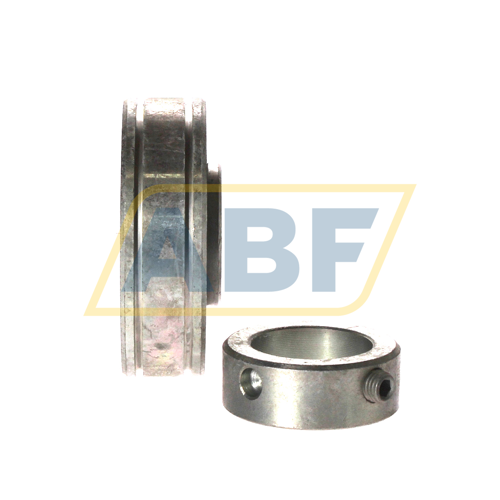

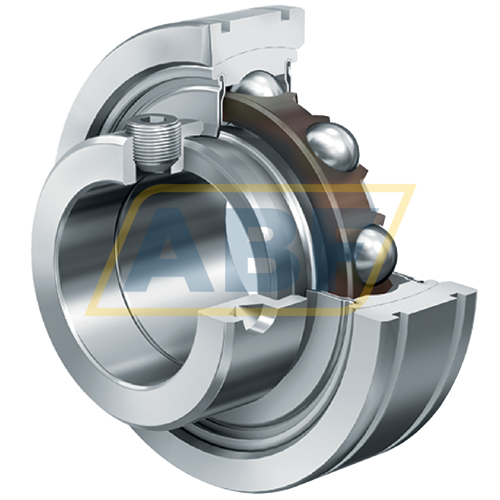

Radial insert ball bearings PE, cylindrical outer ring, with steel aligning ring, location by eccentric locking collar, P seals on both sides
