Specifications
Availability158 pcs
BrandGlycodur
Item NumberPG151720A Glycodur
Also known as
GLY.PG151720A
CategoryBushing
Weight and Dimensions
Inner (d) MM
15
Outer (D) MM
17
Width (B) MM
20
Inner (d) Inch
0.5906
Outer (D) Inch
0.6693
Width (B) Inch
0.7874
Weight (kg)
0.0074
Suffix description
APOM Composite consists of three bonded layers: a copper plated steel backing strip and a sintered porous tin bronze matrix covered with an acetal (polyoxymethylene, POM) resin
Product description

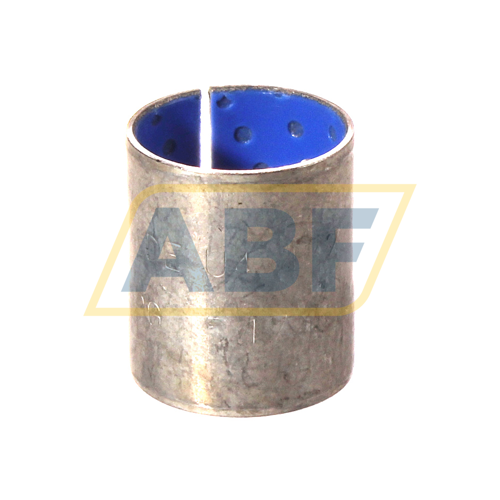

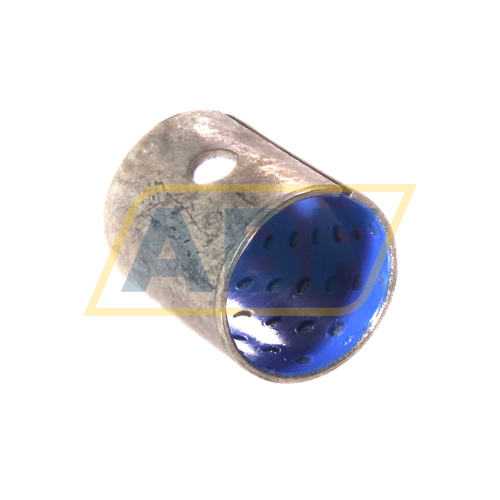

The PG151720A Glycodur is a bushing. Bushings have a very simple, one-piece cylindrical design without rolling elements. Instead, they have a sliding contact where the shaft slides into the bore. This construction makes these bushings a cost-effective and reliable solution. Additionally, they are easy to install and require little installation space. The direct contact between the bushing and the shaft results in greater friction between the surfaces. Compared to roller bearings, they have lower speed and load capacities. Bushings are primarily used for rotating, oscillating, and linear movements.
