Loading equivalents
Specifications
Availability62 pcs
BrandINA
Item NumberRAE25-XL-NPP-NR INA
Manufacturer Part Number (MPN)0009731300000
Also known as
RAE25-NPP-NR
EAN4012802820935
CategoryBearings for Housings
Weight and Dimensions
Inner (d) MM
25
Outer (D) MM
52
Width (B) MM
31
Inner (d) Inch
0.9843
Outer (D) Inch
2.0472
Width (B) Inch
1.2205
Weight (kg)
0.2
Product Properties
Seal
2F - Standard Seal for Y-bearings
Lubrication
Non-Regreaseable
Special Treatment
No Special Treatment
Data from Schaeffler (medias)
Width (b) mm
21,4
Locking collar total width (B 1) mm
31
Radial Static Load Rating C0r (N)
7800
Radial Dynamic Load Rating Cr (N)
14900
ECLASS number
23-05-08-02
ECLASS2 number
23-05-08-02
Medias description

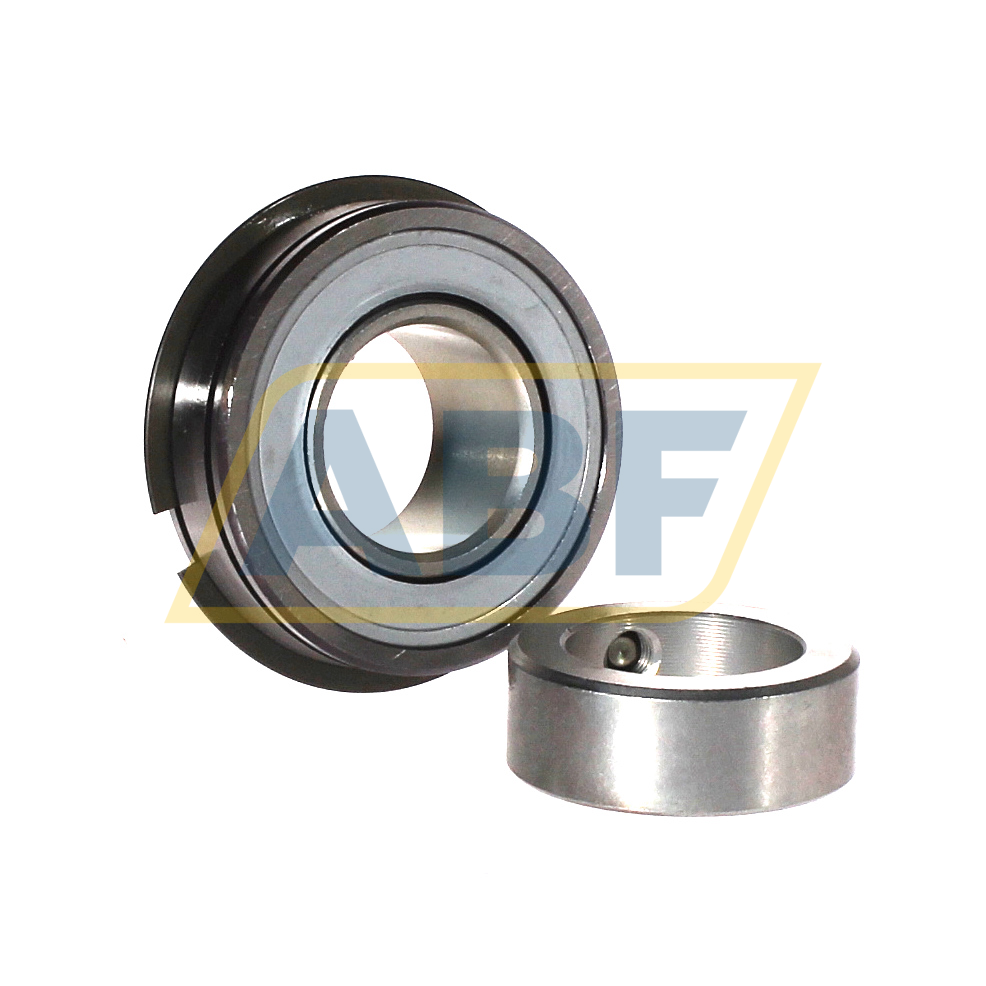

Radial insert ball bearings RAE..-NPP-NR, cylindrical outer ring, location by eccentric locking collar, slots in outer ring, P seals on both sides
Suffix description
XLX-Life
NPPLip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
NRSlot And Snap Ring For Radial Insert Ball Bearings With Cylindrical Outer Ring
