Loading equivalents
Specifications
Availability24 pcs
BrandINA
Item NumberRSL185011-A INA
Manufacturer Part Number (MPN)0015722700000
EAN4012802606508
CategoryCylindrical Roller Bearing Single Row
Weight and Dimensions
Inner (d) MM
55
Outer (D) MM
83,54
Width (B) MM
46
Inner (d) Inch
2.1654
Outer (D) Inch
3.289
Width (B) Inch
1.811
Weight (kg)
0.86
Product Properties
Bore
C - Cylindrical Bore
Seal
No Seal
Cage Type
FC - Full Complement, No Cage
External Modification
No External Modification
Radial Internal Play
Cn Normal Internal Play
Precision
Standard Precision
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Data from Schaeffler (medias)
Rib diameter inner ring (d) mm
55
E w mm
83,54
Width (b) mm
46
Radial Static Load Rating C0r (N)
275000
Radial Dynamic Load Rating Cr (N)
182000
Limiting speed (n G)
4550
Reference speed (n ϑr)
2950
ECLASS number
23-05-09-01
ECLASS2 number
23-05-09-01
Medias description

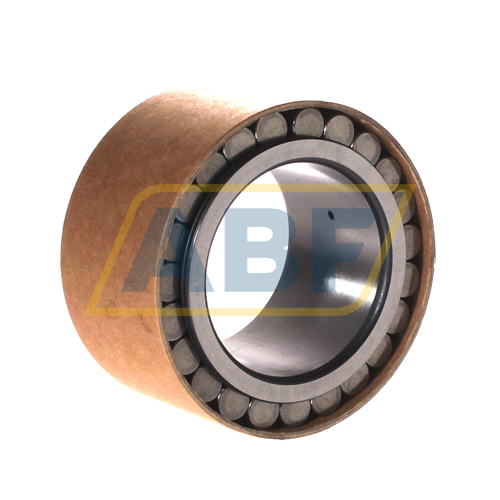

Cylindrical roller bearing RSL18, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, type RSL18
Suffix description
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
