Also known as
GAR30DO
GAR30ES
SA30E
SAA30ES
TFE30MK
EAN7316577002655
CategoryRod End
Weight and Dimensions
Inner (d) MM
30
Outer (D) MM
73
Width (B) MM
22
Inner (d) Inch
1.1811
Outer (D) Inch
2.874
Width (B) Inch
0.8661
Weight (kg)
0.8988
Product Properties
Seal
No Seal
Contact Material
Steel on Steel
Suffix description
ESSteel-On-Steel, Annular Groove And Lubrication Holes In Both Inner And Outer Rings
Product description

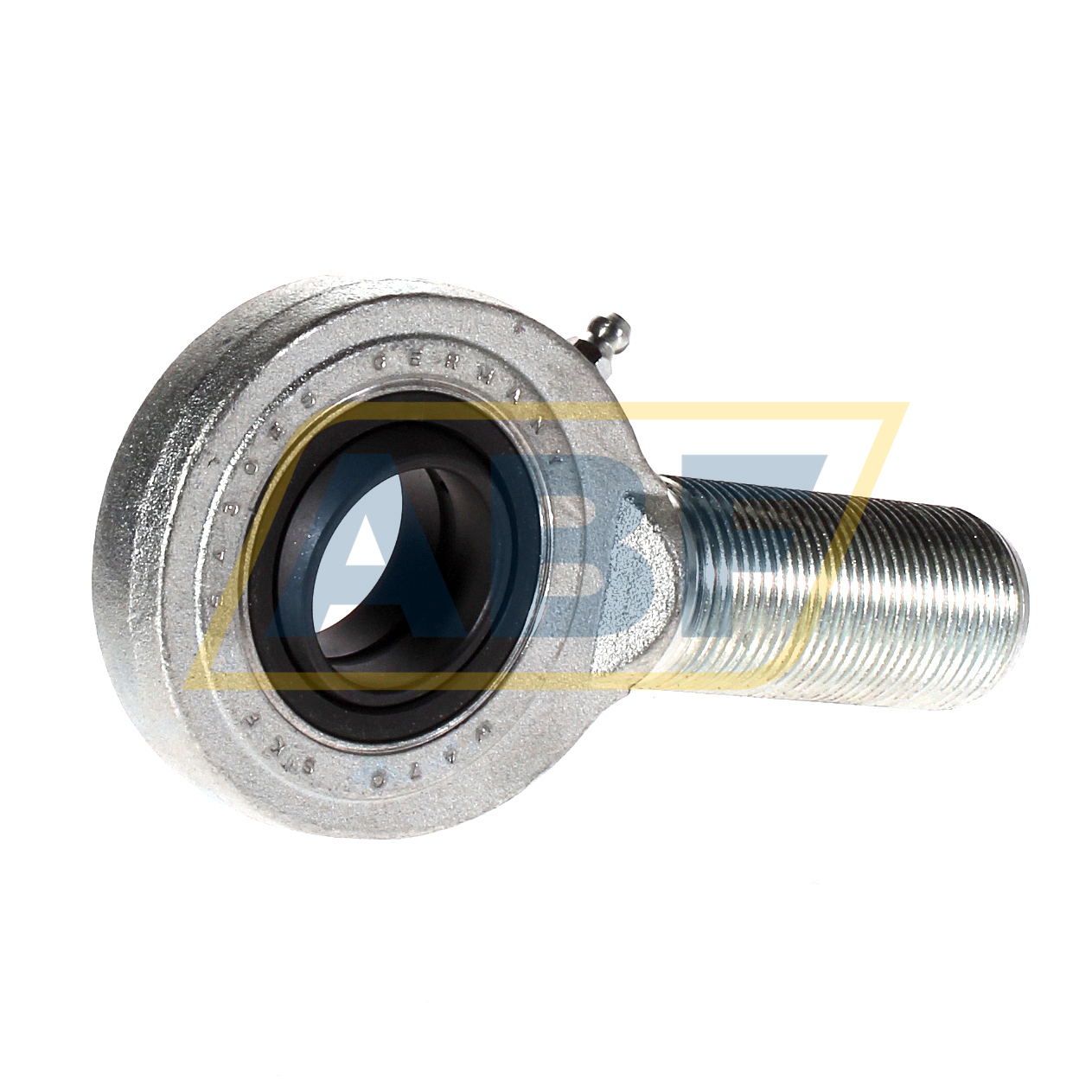

The SA30ES SKF is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.
The SA30ES SKF has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.
