Specifications
Availability9 pcs
BrandSKF
Item NumberSIQG50ES SKF
Also known as
GIHNK50LO
GIHN-K50LO
SIQG50DO
EAN7316577022554
CategoryRod End
Weight and Dimensions
Inner (d) MM
50
Outer (D) MM
110
Width (B) MM
50
Inner (d) Inch
1.9685
Outer (D) Inch
4.3307
Width (B) Inch
1.9685
Weight (kg)
3.75
Product Properties
Seal
No Seal
Contact Material
Steel on Steel
Suffix description
ESSteel-On-Steel, Annular Groove And Lubrication Holes In Both Inner And Outer Rings
Product description

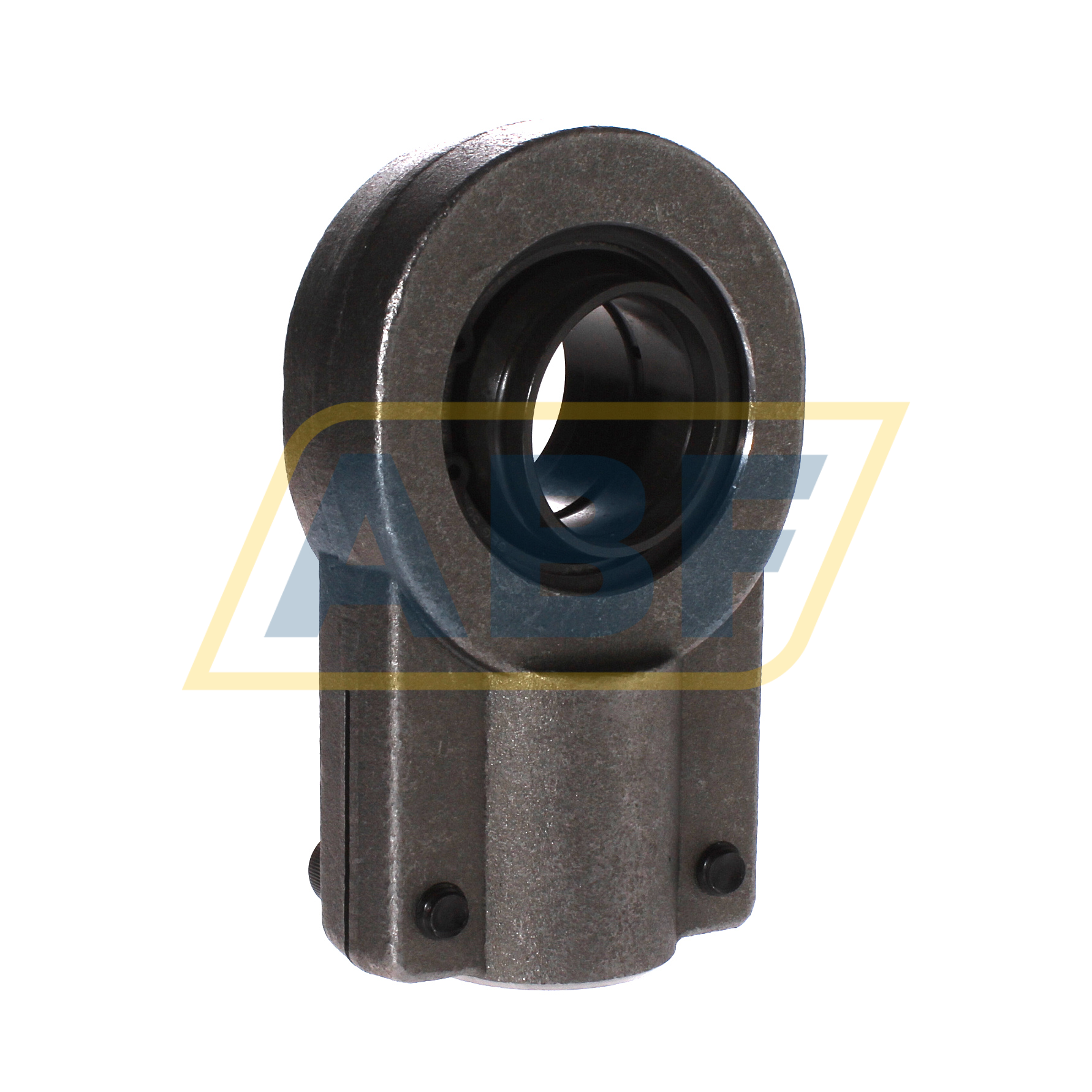

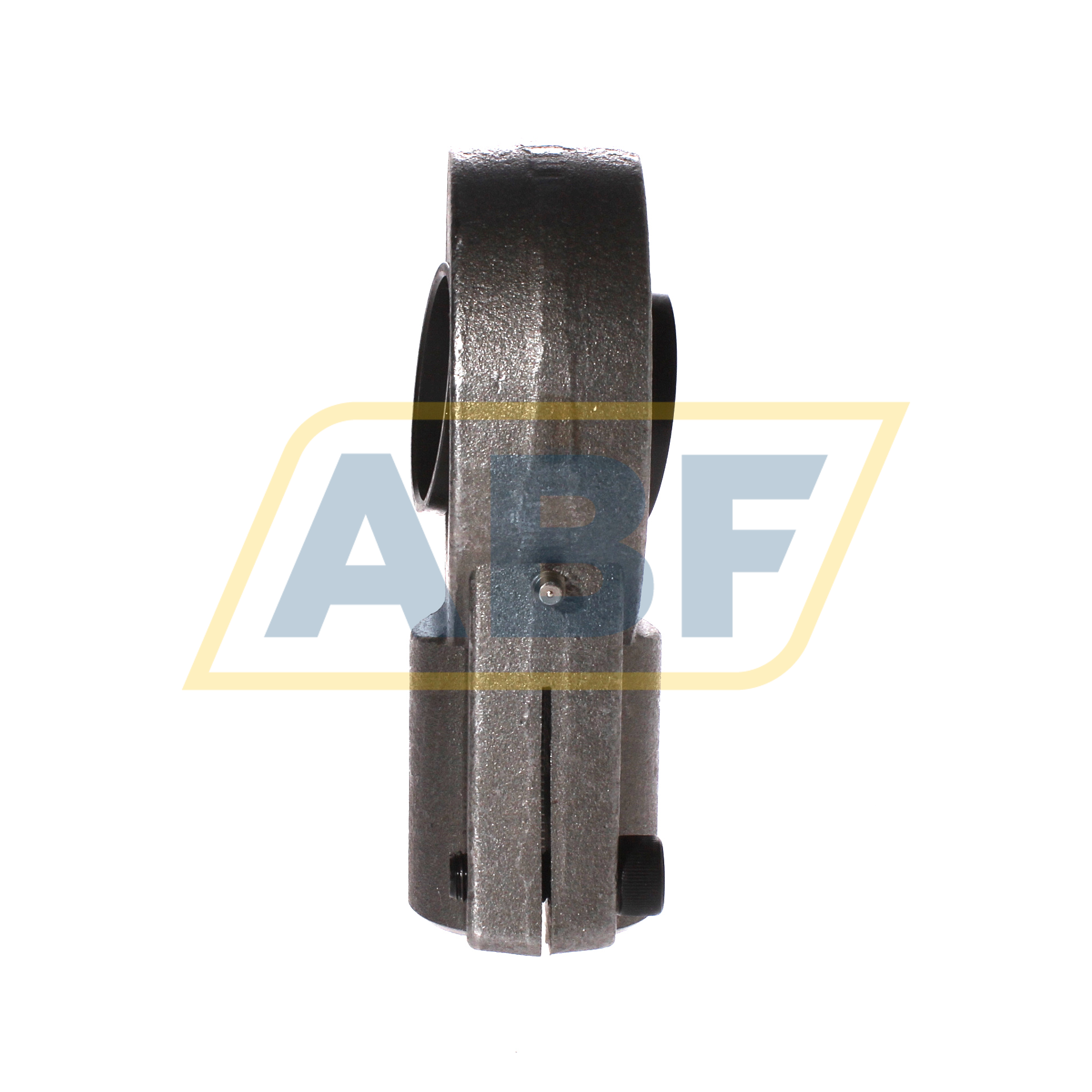

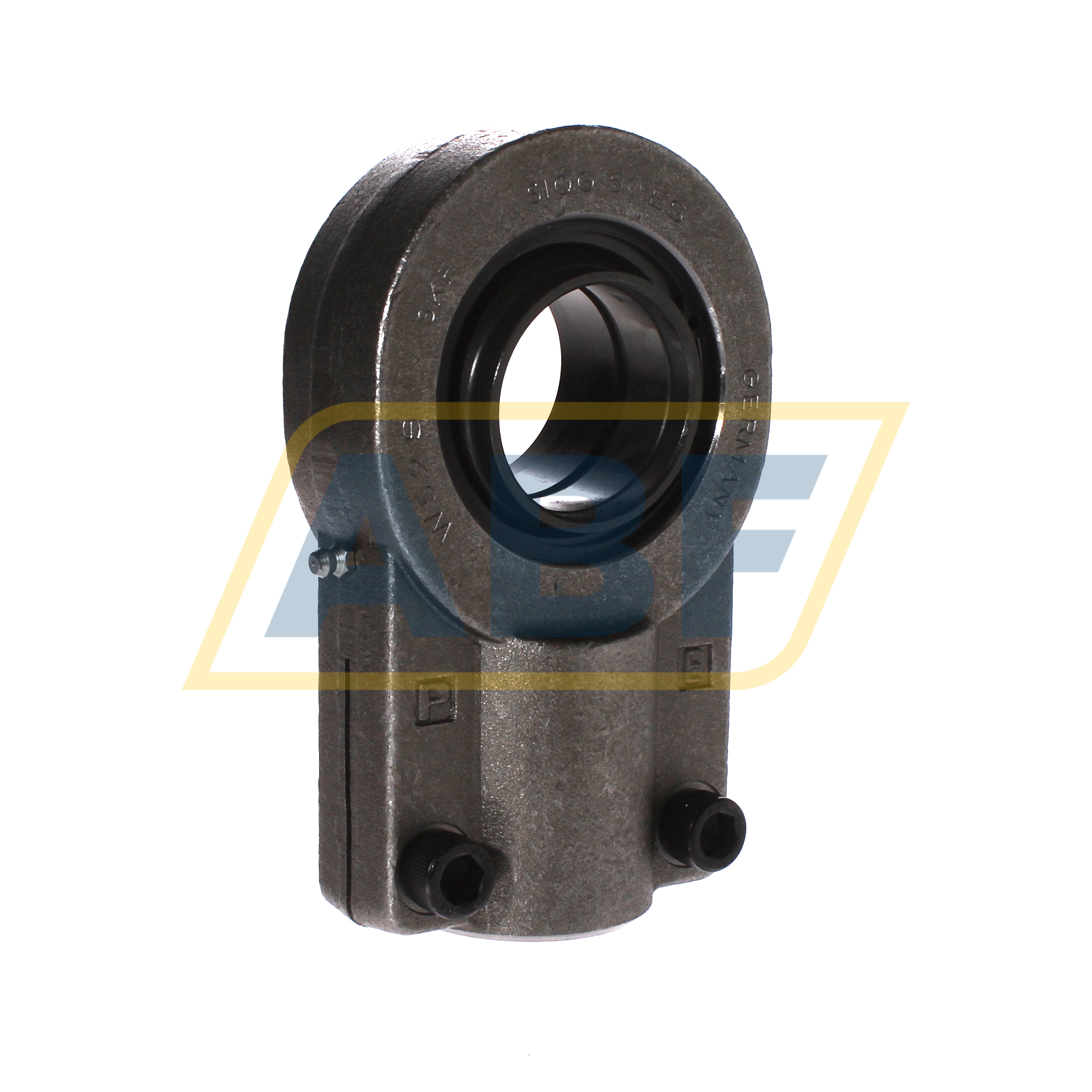

The SIQG50ES SKF is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.
The SIQG50ES SKF has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.
