Name: SL182219-A INA
Brand: INA

Specifications

Availability 5 pcs
Brand INA
Item Number SL182219-A INA
Also known as 0000580840000
NCF2219V
EAN 4012802415964
Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

Inner (d) MM 95,00
Outer (D) MM 170,00
Width (B) MM 43,00
Inner (d) Inch 3.7402
Outer (D) Inch 6.6929
Width (B) Inch 1.6929
Weight (kg) 4.17

Product Properties

Bore C - Cylindrical Bore
Seal No Seal
Cage Type FC - Full Complement, No Cage
External Modification No External Modification
Radial Internal Play Cn Normal Internal Play
Precision Standard Precision
Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

Width (b) mm 43,00
Radial Static Load Rating C0r (N) 425000
Radial Dynamic Load Rating Cr (N) 330000
Basic static load rating, radial (C 0r) "425000.0000"
Limiting speed (n G) "2420.0000"
Reference speed (n ϑr) "1780.0000"
ECLASS number 23-05-09-01
ECLASS2 number 23-05-09-01
Medias description Cylindrical roller bearing SL1822..-A, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18

Suffix description

A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Downloads & Links

Link to manufacturer

Product description

The SL182219-A INA is a single-row, full-complement cylinder bearing. This bearing type has a solid outer and inner ring and a high number of cylindrical rollers. These rollers are guided between the ribs of the rings. Since there is no cage, the maximum number of rolls can be used. As a result, these bearings can support very high radial loads. However, the maximum speed is lower than the speed of cylindrical roller bearings with cages. Single-row full-complement cylindrical roller bearings can also support axial forces in one direction. They are used as support bearings. Support bearings allow axial displacement of the shaft relative to the housing in one direction. The shaft is located axially in the other direction.

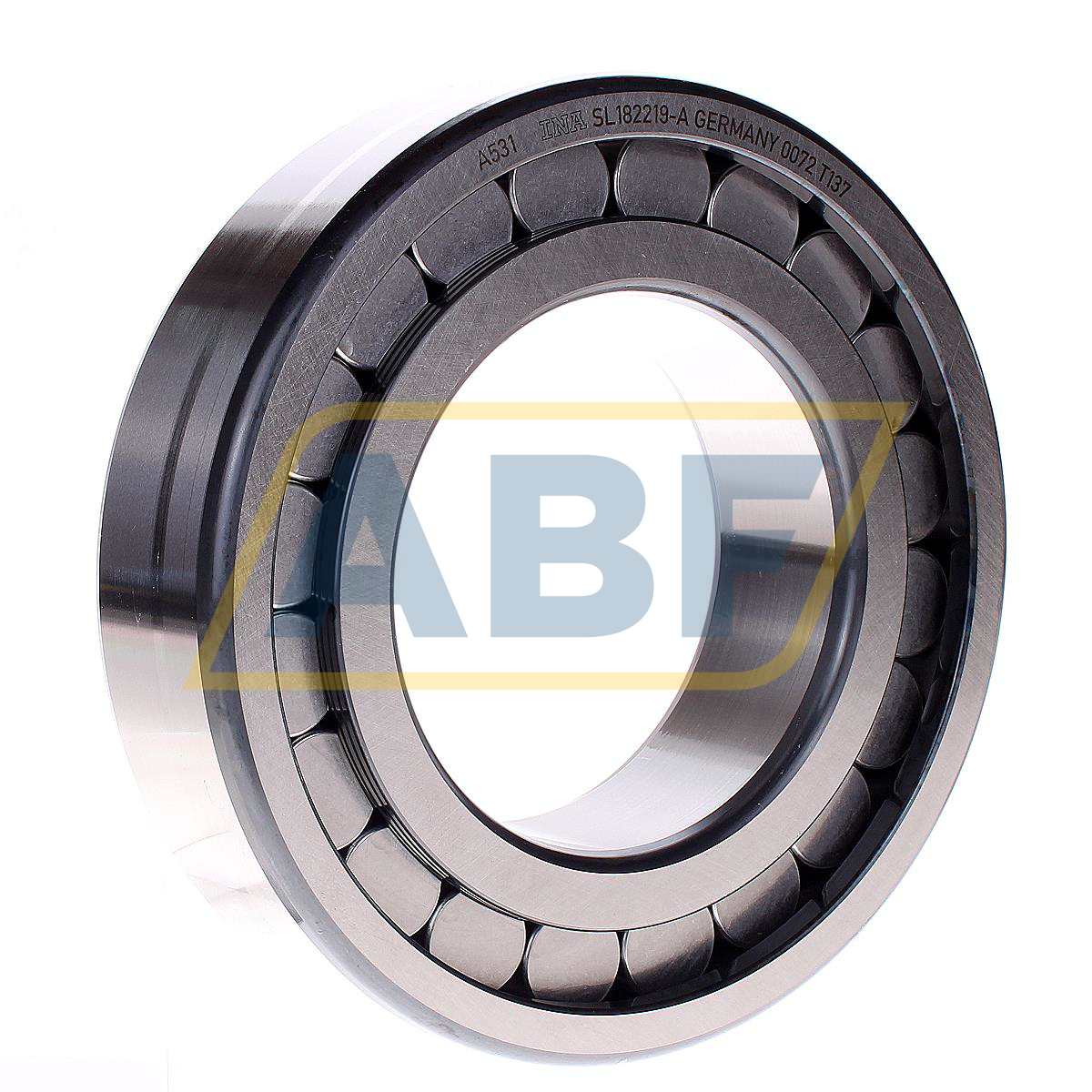

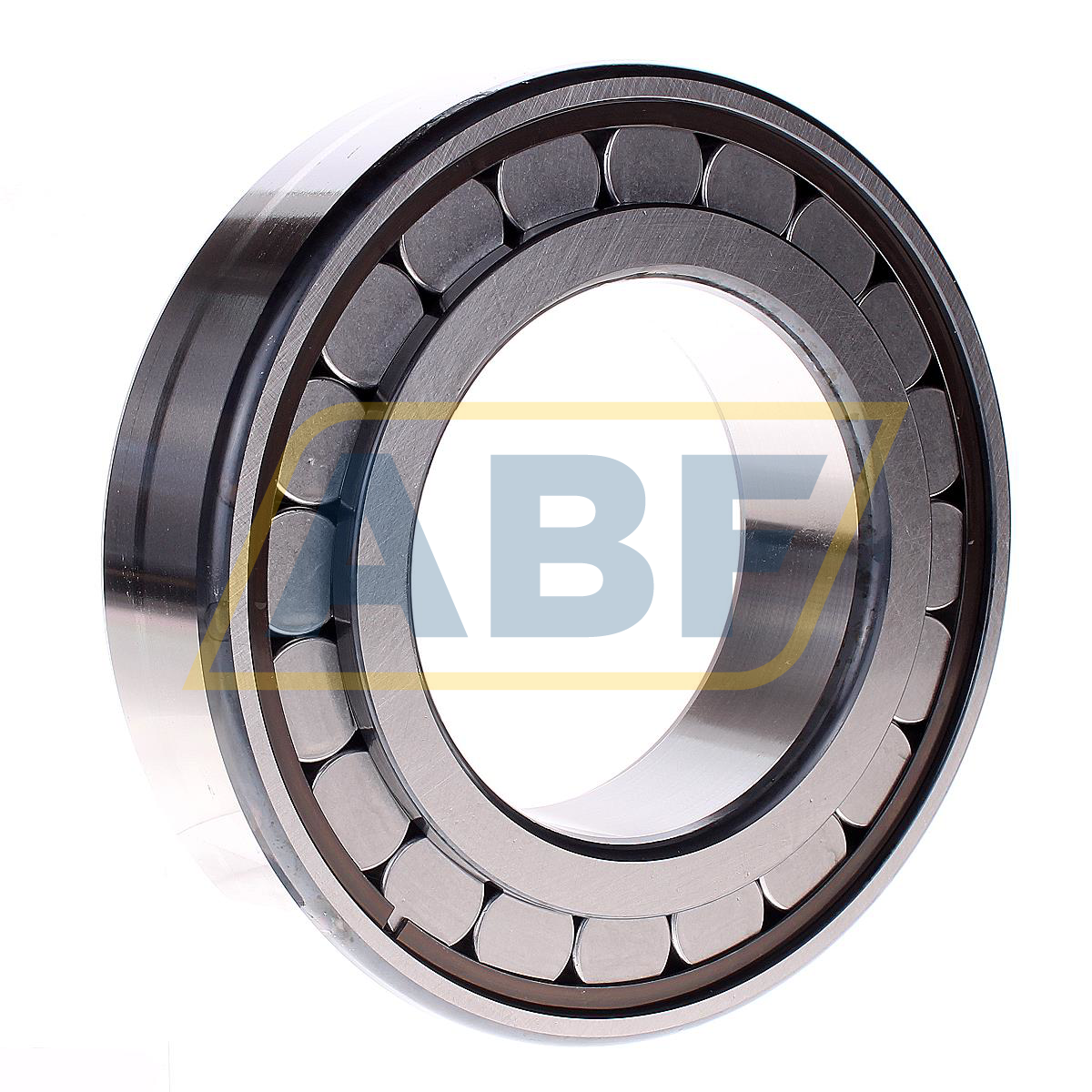

SL182219-A INA

Single-row full-complement cylindrical roller bearing
