Specifications

• Availability 0 pcs
• Brand FAG

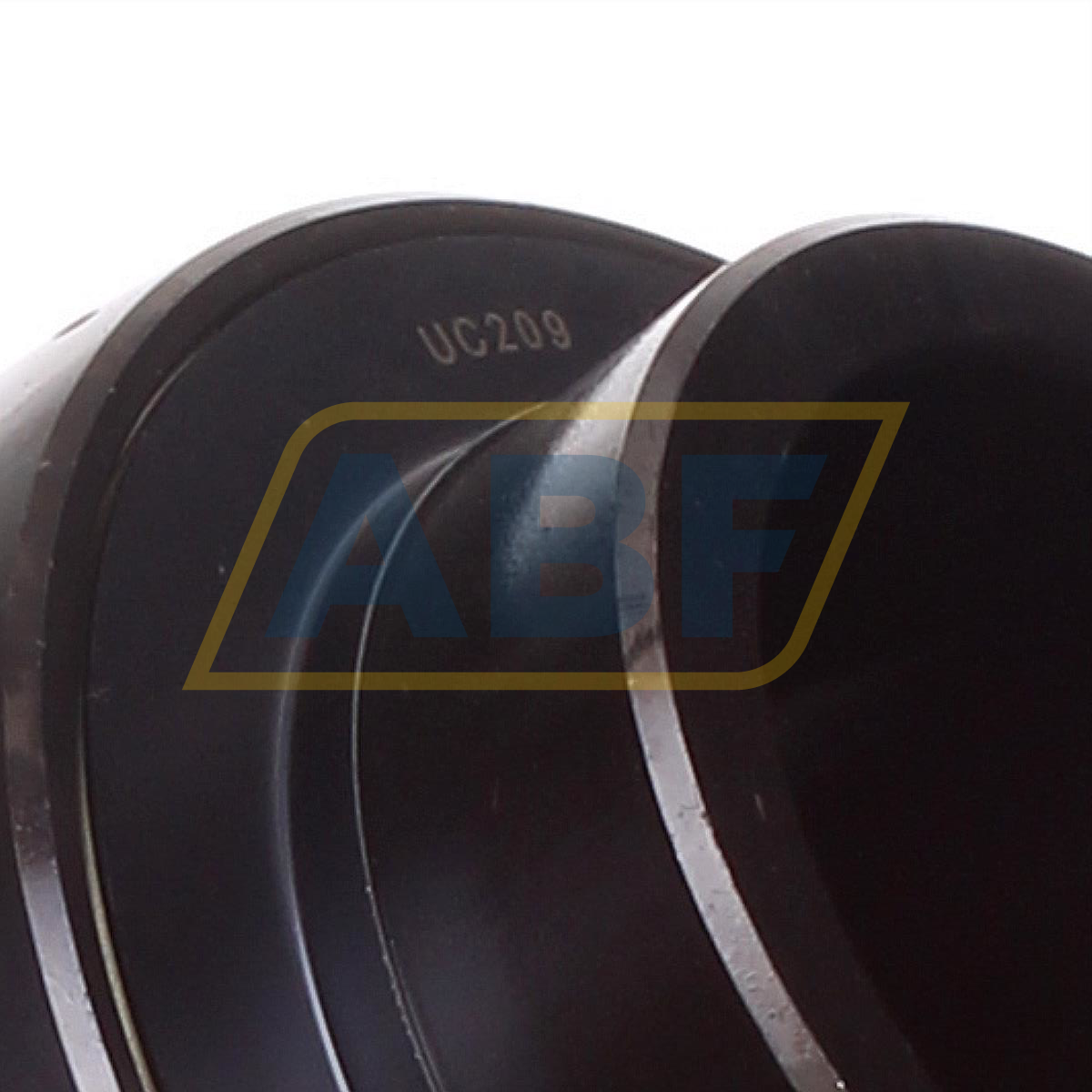

• Item Number UC209 FAG
• Manufacturer Part Number 0693714150000
• Also known as 56209
  GYE45KRRB
  YAR209-2F

• EAN 4012802627442
• Category Bearings for Housings

Weight and Dimensions

• Inner (d) MM 45
• Outer (D) MM 85
• Width (B) MM 49,2
• Inner (d) Inch 1.7717
• Outer (D) Inch 3.3465
• Width (B) Inch 1.9375
• Weight (kg) 0.74

Product Properties

• Seal 2F - Standard Seal for Y-bearings
• Lubrication Standard Lubrication
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Outside diameter (D SP) mm 85
• Width (b) mm 49,2
• Radial Static Load Rating C0r (N) 20400
• Radial Dynamic Load Rating Cr (N) 34500
• ECLASS number 23-05-08-02
• ECLASS2 number 23-05-08-02

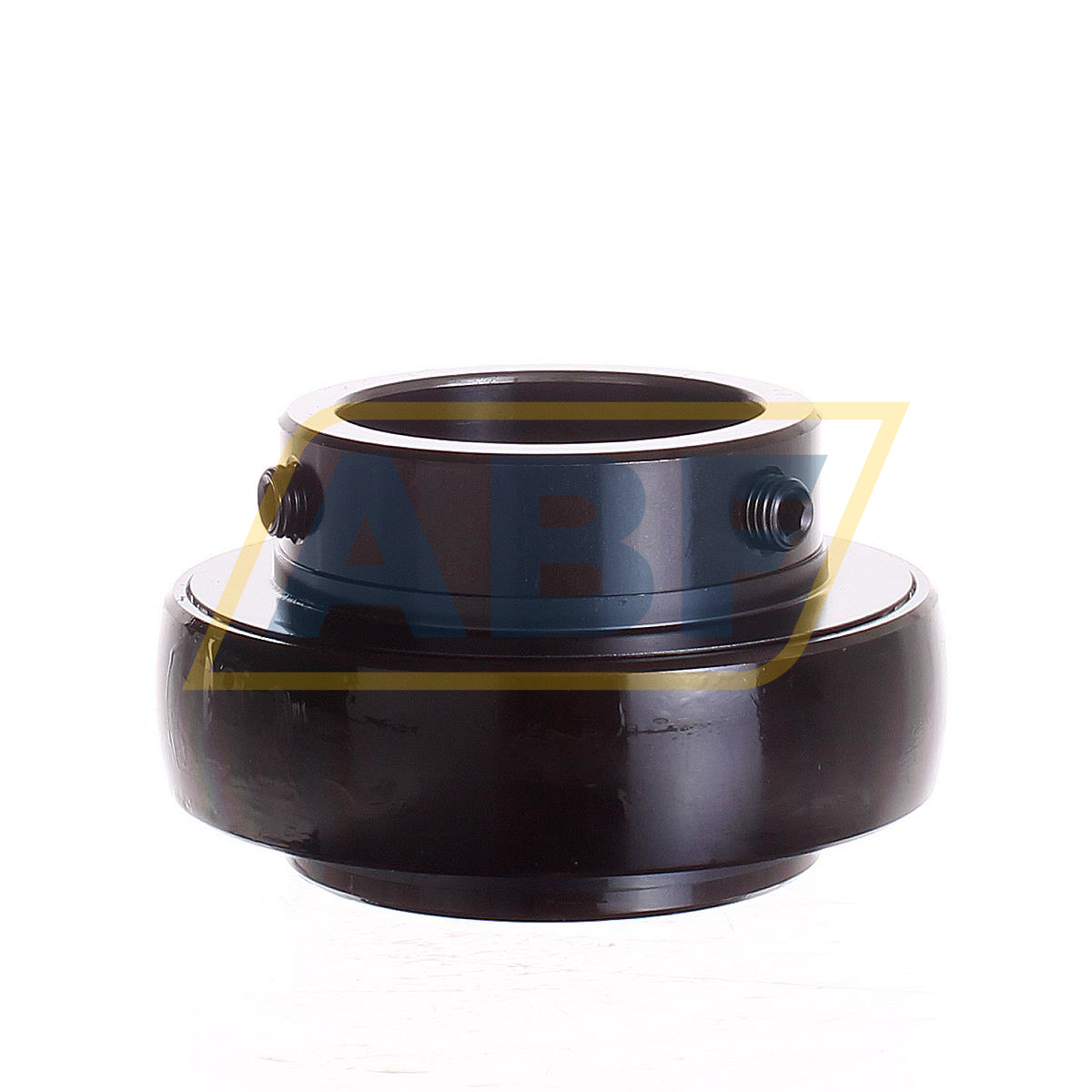

• Medias description Radial insert ball bearings UC, spherical outer ring, location by grub screws, RSR seals on both sides
