Specifications

• Availability 7 pcs
• Brand INA
• Item Number ZKLFA1050-2RS INA
• Also known as 0001309660000

• EAN 4012802178166
• Category Angular Contact Ball Bearing Double Row

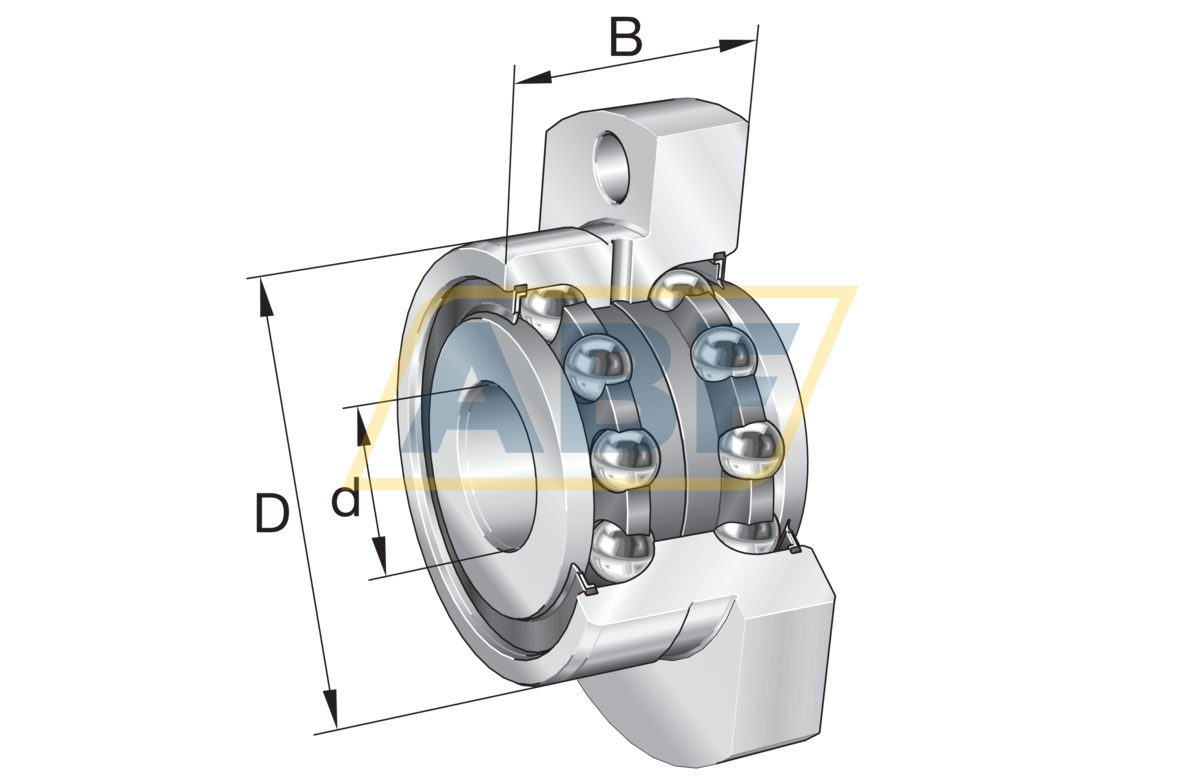

Weight and Dimensions

• Inner (d) MM 10,00
• Outer (D) MM 32,00
• Width (B) MM 20,00
• Inner (d) Inch
• Outer (D) Inch
• Width (B) Inch
• Weight (kg) 0.18

Product Properties

• Bore C - Cylindrical Bore
• Seal 2RS - Rubber Seal on Two Sides
• Cage Type S - Steel or Standard Cage
• External Modification No External Modification
• Radial Internal Play Cn Normal Internal Play
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
• Split Inner ring / Outer ring Split inner ring

Data from Schaeffler (medias)

• Width (b) mm 20,00
• Basic dynamic load rating, axial (C a) "13400.0000"
• Axial Static Load Rating C0a (N) 18800
• Basic static load rating, axial (C 0a) "18800.0000"
• Axial Dynamic Load Rating Ca (N) 13400
• Limiting speed for grease lubrication (n G Grease) "10900.0000"
• Thermally permissible speed (n ϑ) "4600.0000"
• ECLASS number 23-05-10-02
• ECLASS2 number 23-05-10-02

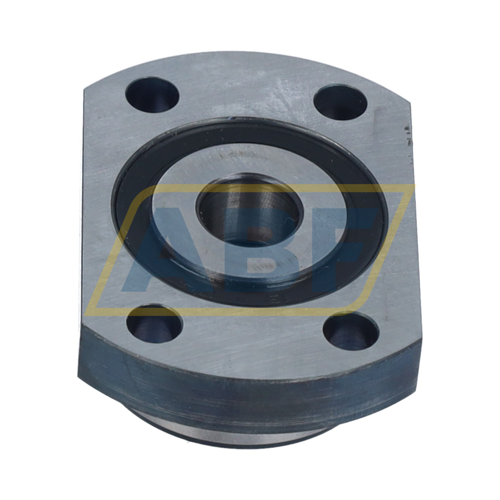

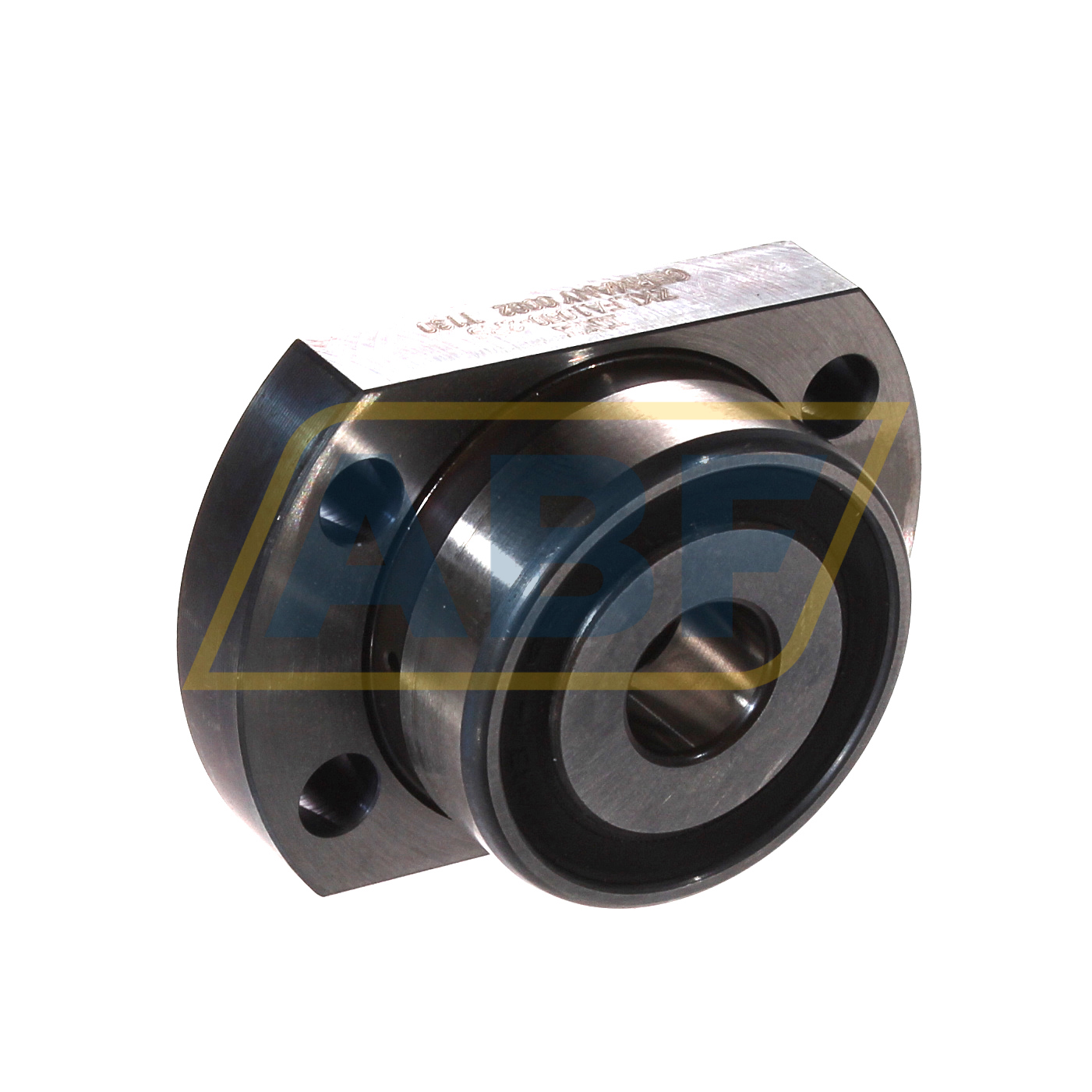

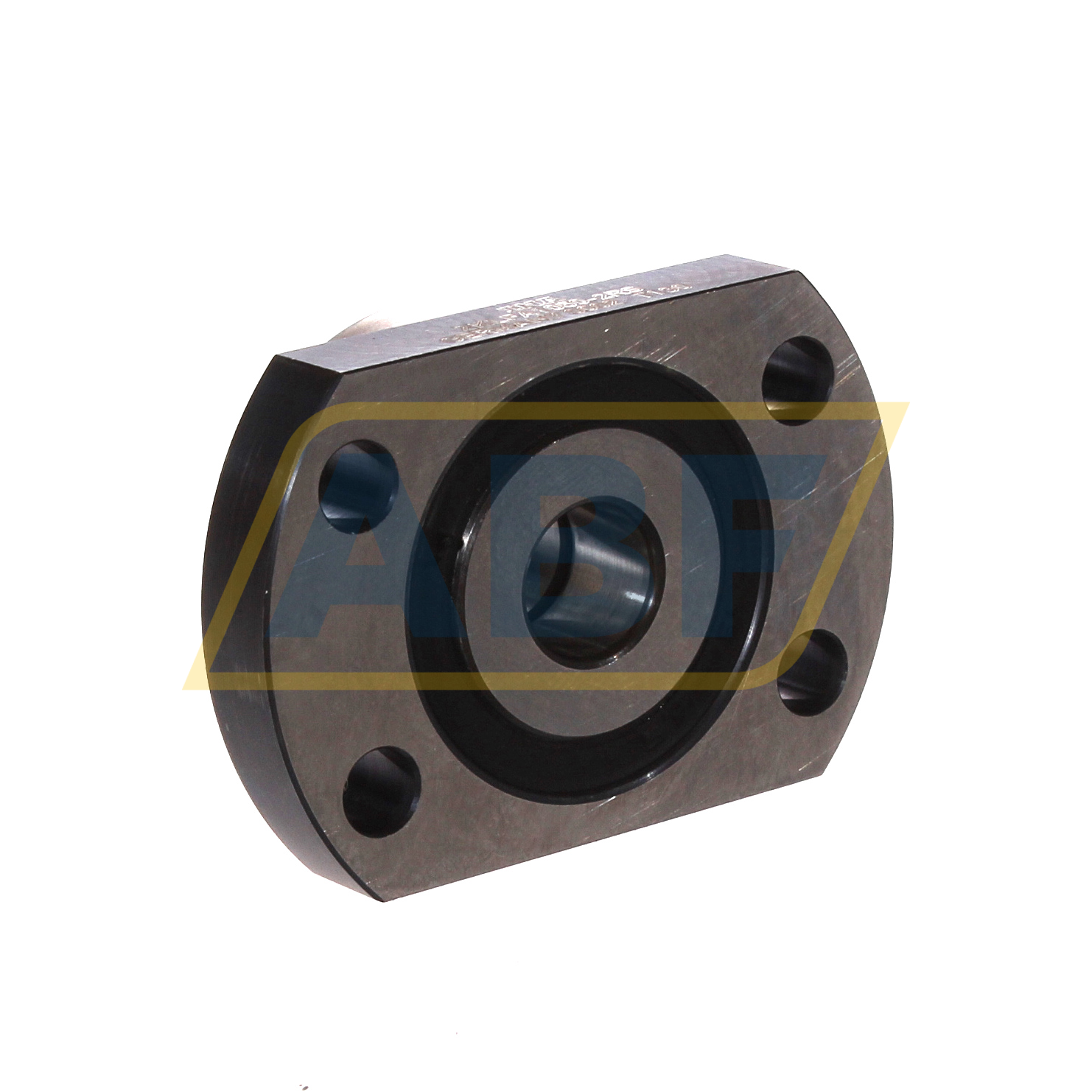

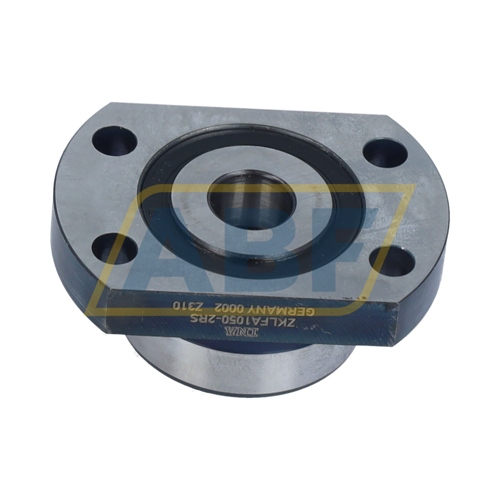

• Medias description Angular contact ball bearing units ZKLFA..-2RS, double direction, for screw mounting, lip seals on both sides, with flattened flange
