Specifications

• Availability 1 pc
• Brand Siemens
• Item Number 1LE1501-2AB53-4FA4 Siemens
• Category 3-Phase Motors

Weight and Dimensions

• Weight (kg) 230

Product Properties

• Rated power (kW) 30
• Speed at 50Hz (rpm) 1500 / 4-Poles
• Frequency 50/60 Hz
• Energy efficiency IE2 = High = EFF1

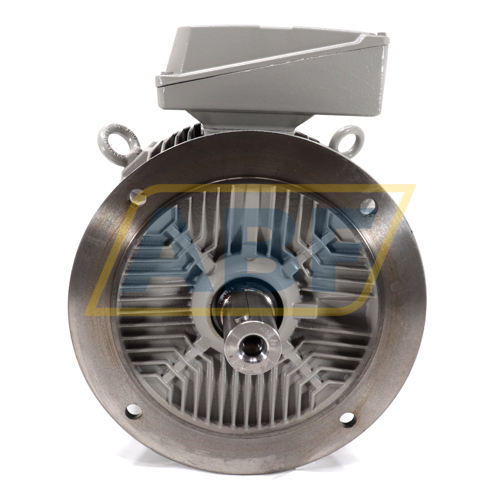

• Mounting B5 (outer flange)
• Brake No Brake
• IP Class IP55
• Explosion safety (Atex) No protection
• IEC Framesize 200

Detailed Product Properties

• Voltage 380-400VD / 660-690VY
• IEC Framesize 200
• Shaft diameter (mm) 55
• Housing material Cast Iron
• AC/DC AC
• Standard IEC
• Shaft height IEC in JDE 200
• Shaft length (mm) 110
• Shaft key width (mm) 16
• Shaft key length (mm) 100
• Thread shaft bore M20
• Shaft height, B3 mounted (mm) 200
• Width foot holes, B3 mounted (mm) 318
• Length foot holes, B3 mounted (mm) L=305
• Diameter foot holes (mm) 19
• Outer diameter flange B5/V1/B35/V3 (mm) 400
• Spigot B5/V1/B35/V3 (mm) 300
• Pitch circle diameter B5/V1/B35/V3 (mm) 350
• Number of flange holes 4
• Diameter flange holes B5/V1/B35/V3 (mm) 18.5
