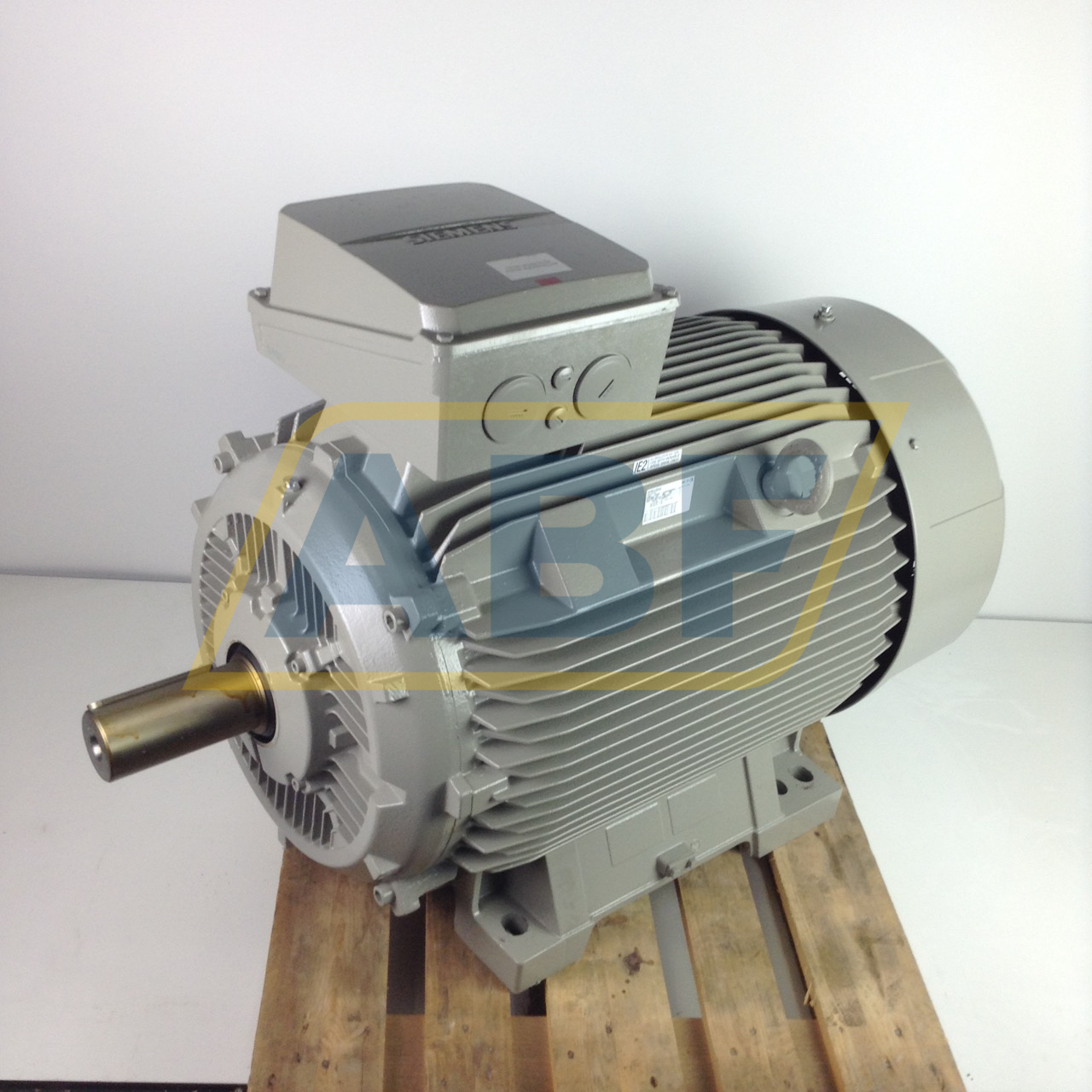

1LE1501-3AB43-4AB4-Z Siemens

315-4P 160kW 400/690V B3 CI

Loading equivalents

Product properties

Downloads & Links

Details

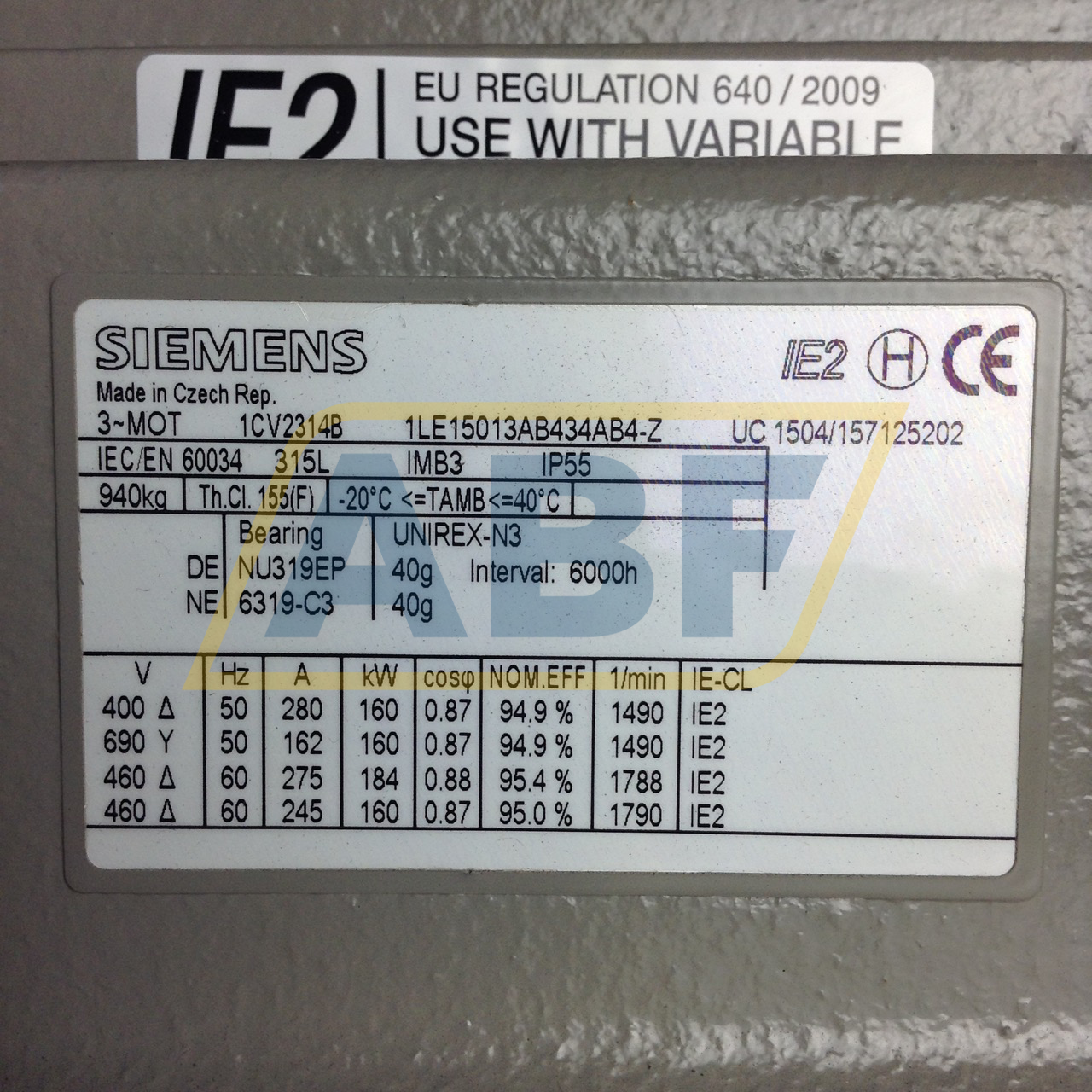

SIMOTICS SD MOTOR TYPE: 1CV2314B Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 Temperature class 155(F) according to 130(B) cast iron frame Basic line High Efficiency IE2, In EEA: Minimum efficiency according to applicable statutory regulations ! 4-pole * Size 315L, * 160kW (50 Hz) 184kW (60 Hz) 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, 3 PTC thermistors for disconnection (2 terminals) Terminal box at top L22=Bearing for increased transverse forcesSIMOTICS SD MOTOR TYPE: 1CV2314B Low-voltage motor, IEC Squirrel-cage rotor, self-ventilated, IP55 Temperature class 155(F) according to 130(B) cast iron frame Basic line High Efficiency IE2, In EEA: Minimum efficiency according to applicable statutory regulations ! 4-pole * Size 315L, * 160kW (50 Hz) 184kW (60 Hz) 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 3, 3 PTC thermistors for disconnection (2 terminals) Terminal box at top L22=Bearing for increased transverse forces
