Specifications
Availability1 pc
BrandFelstrom
Item Number3F2A-100LB-4B35 Felstrom
EAN8719735013323
Category3-Phase Motors
Weight and Dimensions
Weight (kg)
24
Product Properties
Rated power (kW)
4
Speed at 50Hz (rpm)
1500 / 4-Poles
Frequency
50/60 Hz
Energy efficiency
IE2 = High = EFF1
Mounting
B35 (foot + outer flange)
Brake
No Brake
IP Class
IP55
Explosion safety (Atex)
No protection
IEC Framesize
100
Detailed Product Properties
Voltage
380-400VD / 660-690VY
IEC Framesize
100
Shaft diameter (mm)
28
Housing material
Alu
AC/DC
AC
Standard
IEC
Shaft height IEC in JDE
100
Shaft length (mm)
60
Shaft key width (mm)
8
Shaft key length (mm)
50
Thread shaft bore
M10
Shaft height, B3 mounted (mm)
100
Width foot holes, B3 mounted (mm)
160
Length foot holes, B3 mounted (mm)
S=286, M=311
Diameter foot holes (mm)
12

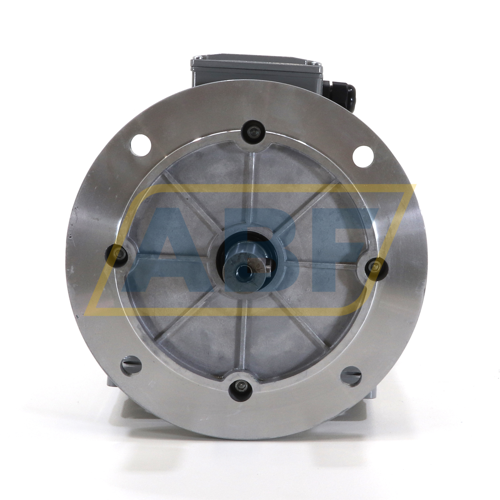

Outer diameter flange B5/V1/B35/V3 (mm)
250
Spigot B5/V1/B35/V3 (mm)
180
Pitch circle diameter B5/V1/B35/V3 (mm)
215
Number of flange holes
4
Diameter flange holes B5/V1/B35/V3 (mm)
14.5
Pitch circle diameter B14/B34/V18/V19 (mm)
130
Thread flange holes B14/B34/V18/V19
M8
Outer diameter flange B14/B34/V18/V19 (mm)
160
Spigot B14/B34/V18/V19 (mm)
110
Product description

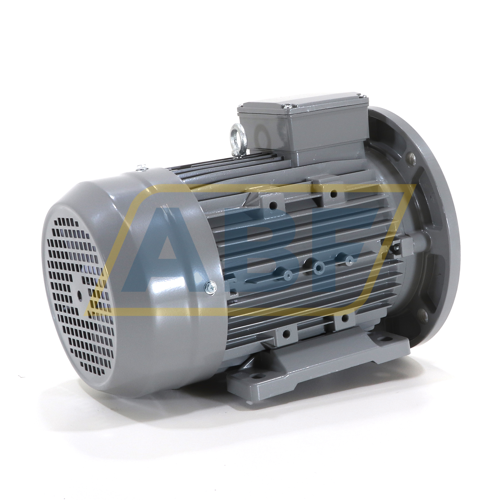

The 3F2A-100LB-4B35 Felstrom has no unwelcome surprises in store. The solid, versatile design guarantees top performance in a variety of situations. Its integrated PTC resistors protect this electric motor against overloads. In addition, this Felstrom motor with B35 mounting position has removable feet. By removing the feet, this type can also be used as a motor with a B5 mounting position. There is no price difference between the B35 and B5 version of this motor.
Felstrom electric motors combine their secure and solid construction with a very friendly price level. They also work extremely efficiently. All Felstrom motors have the highest possible efficiency class per power category and fully comply with European regulations. With the 3F2A-100LB-4B35 Felstrom you choose for carefree ease-of-use and an excellent price/quality ratio.
