Specifications
Availability1 pc
BrandFelstrom
Item Number3F2A-80MC-2B34 Felstrom
EAN8719735013941
Category3-Phase Motors
Weight and Dimensions
Weight (kg)
9.2
Product Properties
Rated power (kW)
1.5
Speed at 50Hz (rpm)
3000 / 2-Poles
Frequency
50/60 Hz
Energy efficiency
IE2 = High = EFF1
Mounting
B34 (foot + inner flange)
Brake
No Brake
IP Class
IP55
Explosion safety (Atex)
No protection
IEC Framesize
80
Detailed Product Properties
Voltage
220-230VD / 380-400VY
IEC Framesize
80
Shaft diameter (mm)
19
Housing material
Alu
AC/DC
AC
Standard
IEC
Shaft height IEC in JDE
080
Shaft length (mm)
40
Shaft key width (mm)
6
Shaft key length (mm)
32
Thread shaft bore
M6
Shaft height, B3 mounted (mm)
80
Width foot holes, B3 mounted (mm)
125
Length foot holes, B3 mounted (mm)
100
Diameter foot holes (mm)
9.5
Outer diameter flange B5/V1/B35/V3 (mm)
200
Spigot B5/V1/B35/V3 (mm)
130
Pitch circle diameter B5/V1/B35/V3 (mm)
165
Number of flange holes
4
Diameter flange holes B5/V1/B35/V3 (mm)
12
Pitch circle diameter B14/B34/V18/V19 (mm)
100
Thread flange holes B14/B34/V18/V19
M6
Outer diameter flange B14/B34/V18/V19 (mm)
120
Spigot B14/B34/V18/V19 (mm)
80
Product description

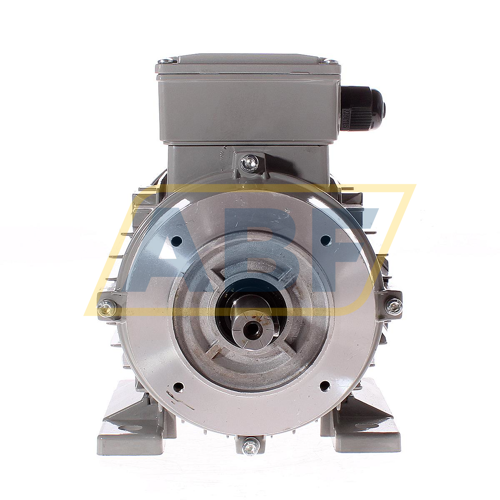

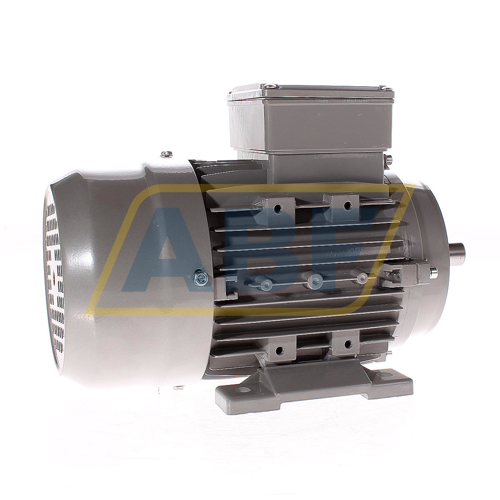

The 3F2A-80MC-2B34 Felstrom has no unwelcome surprises in store. The solid, versatile design guarantees top performance in a variety of situations. Its integrated PTC resistors protect this electric motor against overloads. In addition, this Felstrom motor with B34 mounting position has removable feet. By removing the feet, this type can also be used as a motor with a B14 mounting position. There is no price difference between the B34 and B14 version of this motor.
Felstrom electric motors combine their secure and solid construction with a very friendly price level. They also work extremely efficiently. All Felstrom motors have the highest possible efficiency class per power category and fully comply with European regulations. With the 3F2A-80MC-2B34 Felstrom you choose for carefree ease-of-use and an excellent price/quality ratio.
