Specifications

• Availability 0 pcs
• Brand ABB

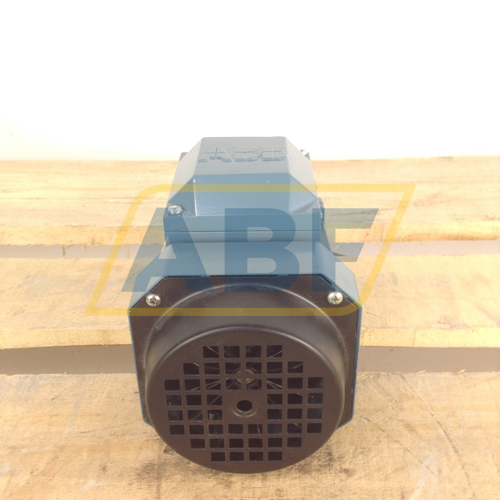

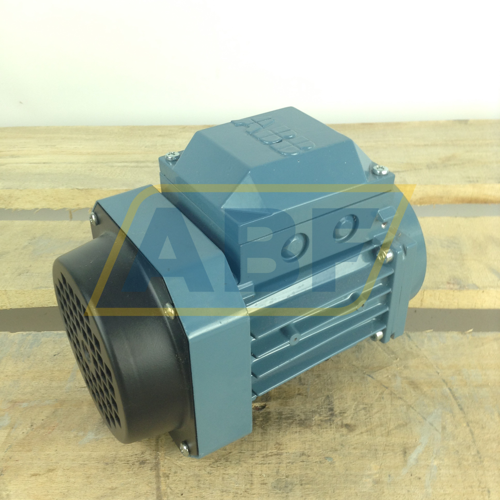

• Item Number 3GVA063002-CSC ABB
• Category 3-Phase Motors

Weight and Dimensions

• Weight (kg) 4.18

Product Properties

• Rated power (kW) 0.12
• Speed at 50Hz (rpm) 1000 / 6-Poles
• Frequency 50/60 Hz
• Energy efficiency Not applicable

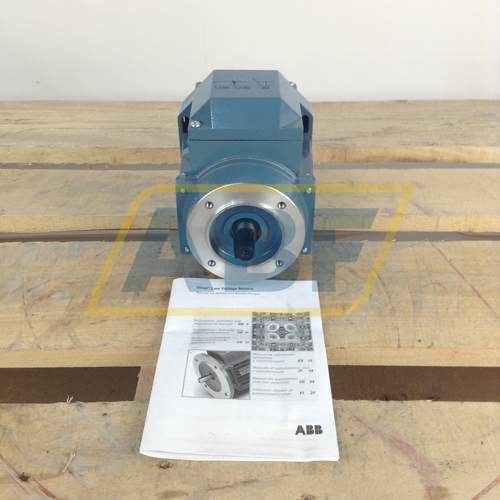

• Mounting B14 (inner flange)
• Brake No Brake
• IP Class IP55
• Explosion safety (Atex) No protection
• IEC Framesize 63

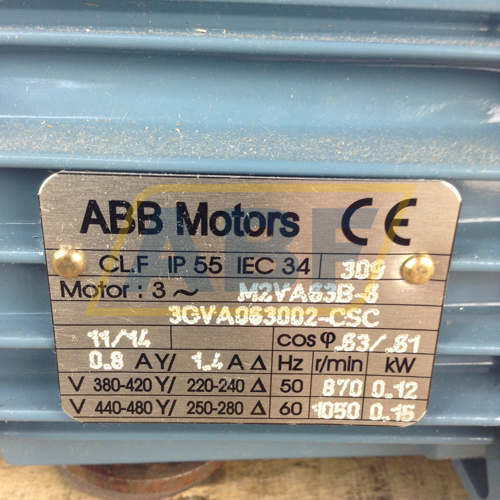

Detailed Product Properties

• Voltage 220-230VD / 380-400VY
• IEC Framesize 63
• Shaft diameter (mm) 11
• Housing material Alu
• AC/DC AC
• Standard IEC
• Shaft height IEC in JDE 063
• Shaft length (mm) 23
• Shaft key width (mm) 4
• Shaft key length (mm) 16
• Thread shaft bore M4
• Shaft height, B3 mounted (mm) 63
• Width foot holes, B3 mounted (mm) 100
• Length foot holes, B3 mounted (mm) 80
• Diameter foot holes (mm) 7
• Outer diameter flange B5/V1/B35/V3 (mm) 140
• Spigot B5/V1/B35/V3 (mm) 95
• Pitch circle diameter B5/V1/B35/V3 (mm) 115
• Number of flange holes 4
• Diameter flange holes B5/V1/B35/V3 (mm) 10
• Pitch circle diameter B14/B34/V18/V19 (mm) 75
• Thread flange holes B14/B34/V18/V19 M5
• Outer diameter flange B14/B34/V18/V19 (mm) 90
• Spigot B14/B34/V18/V19 (mm) 60
