Specifications

• Availability 0 pcs
• Brand BEGE

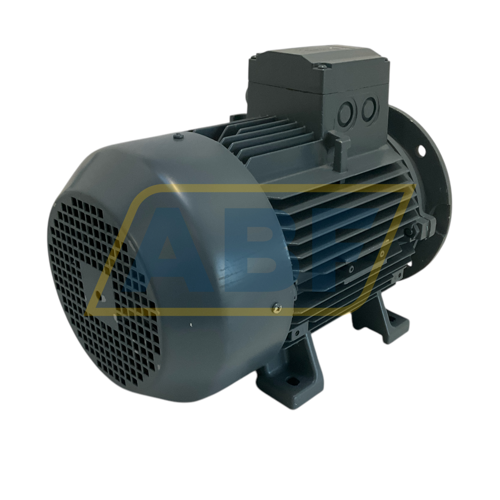

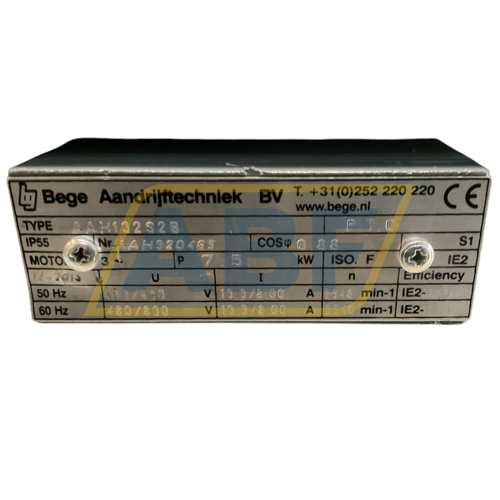

• Item Number AAH132S2B-B35 BEGE
• Category 3-Phase Motors

Weight and Dimensions

• Weight (kg) 54

Product Properties

• Rated power (kW) 7.5
• Speed at 50Hz (rpm) 3000 / 2-Poles
• Frequency 50/60 Hz
• Energy efficiency IE2 = High = EFF1
• Mounting B35 (foot + outer flange)
• Brake No Brake
• IP Class IP55
• Explosion safety (Atex) No protection
• IEC Framesize 132

Detailed Product Properties

• Voltage 220-230VD / 380-400VY
• IEC Framesize 132
• Shaft diameter (mm) 38
• Housing material Alu
• AC/DC AC
• Standard IEC
• Shaft height IEC in JDE 132
• Shaft length (mm) 80
• Shaft key width (mm) 10
• Shaft key length (mm) 70
• Thread shaft bore M12
• Shaft height, B3 mounted (mm) 132
• Width foot holes, B3 mounted (mm) 216
• Length foot holes, B3 mounted (mm) S=286, M=311
• Diameter foot holes (mm) 12

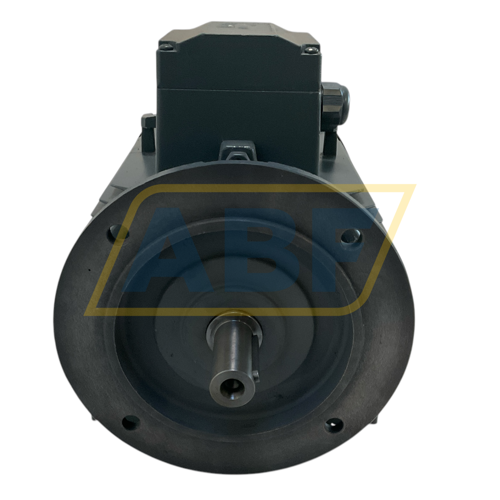

• Outer diameter flange B5/V1/B35/V3 (mm) 300
• Spigot B5/V1/B35/V3 (mm) 230
• Pitch circle diameter B5/V1/B35/V3 (mm) 265
• Number of flange holes 4
• Diameter flange holes B5/V1/B35/V3 (mm) 14.5
• Pitch circle diameter B14/B34/V18/V19 (mm) 165
• Thread flange holes B14/B34/V18/V19 M10
• Outer diameter flange B14/B34/V18/V19 (mm) 200
• Spigot B14/B34/V18/V19 (mm) 130
