Specifications

• Availability 1 pc
• Brand Rossi

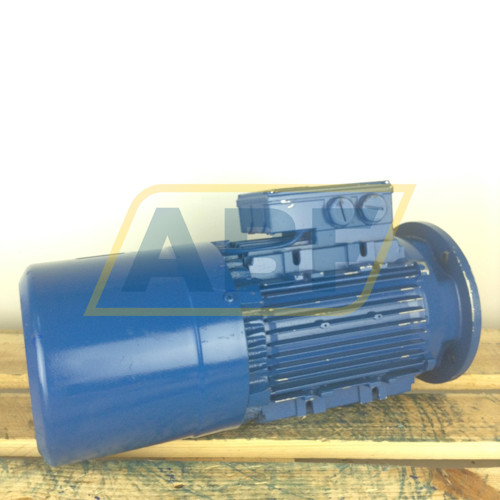

• Item Number F0112M0423046060B5R Rossi
• Category Brake Motors

Weight and Dimensions

• Weight (kg) 45

Product Properties

• Rated power (kW) 6.6
• Speed at 50Hz (rpm) 1500 / 4-Poles
• Frequency 60 Hz
• Energy efficiency Not applicable
• Mounting non standard
• Brake AC Brake
• IP Class IP55
• Explosion safety (Atex) No protection
• IEC Framesize 112

Detailed Product Properties

• Voltage All other voltages
• IEC Framesize 112
• Shaft diameter (mm) 24
• Housing material Alu
• AC/DC AC
• Standard IEC
• Shaft height IEC in JDE 112
• Shaft length (mm) 50
• Shaft key width (mm) 8
• Shaft key length (mm) 50
• Thread shaft bore M10
• Shaft height, B3 mounted (mm) 112
• Width foot holes, B3 mounted (mm) 190
• Length foot holes, B3 mounted (mm) S=286, M=311
• Diameter foot holes (mm) 12

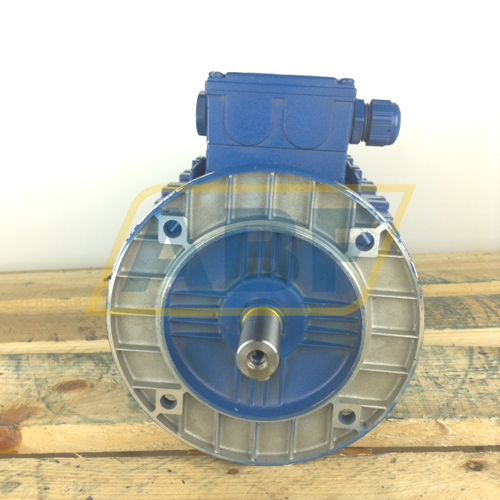

• Outer diameter flange B5/V1/B35/V3 (mm) 200
• Spigot B5/V1/B35/V3 (mm) 180
• Pitch circle diameter B5/V1/B35/V3 (mm) 215
• Number of flange holes 4
• Diameter flange holes B5/V1/B35/V3 (mm) 14.5
• Pitch circle diameter B14/B34/V18/V19 (mm) 130
• Thread flange holes B14/B34/V18/V19 M8
• Outer diameter flange B14/B34/V18/V19 (mm) 160
• Spigot B14/B34/V18/V19 (mm) 110
