Specifications

• Availability 0 pcs
• Brand Electro Adda

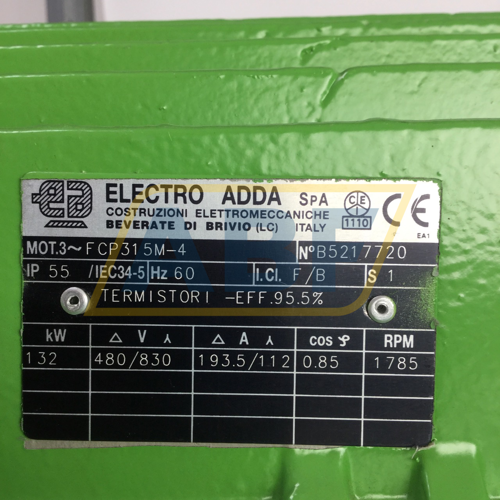

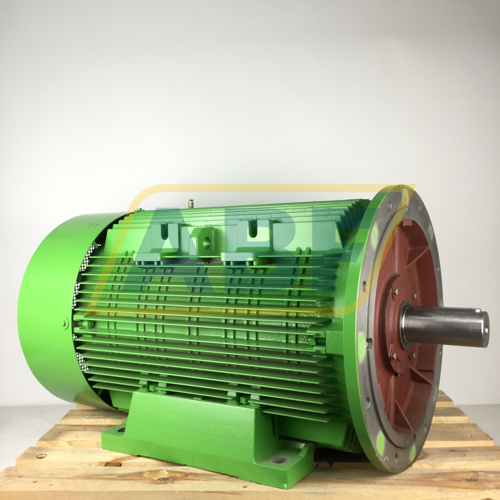

• Item Number FCP315M-4-B35 Electro Adda
• Category 3-Phase Motors

Weight and Dimensions

• Weight (kg) 860

Product Properties

• Rated power (kW) 132
• Speed at 50Hz (rpm) 1500 / 4-Poles
• Frequency 60 Hz
• Energy efficiency IE3 = Premium
• Mounting B35 (foot + outer flange)
• Brake No Brake
• IP Class IP55
• Explosion safety (Atex) No protection
• IEC Framesize 315

Detailed Product Properties

• Voltage All other voltages
• IEC Framesize 315
• Shaft diameter (mm) 65
• Housing material Cast Iron
• AC/DC AC
• Standard IEC
• Shaft height IEC in JDE 315
• Shaft length (mm) 140
• Shaft key width (mm) 18
• Shaft key length (mm) 125
• Thread shaft bore M20
• Shaft height, B3 mounted (mm) 315
• Width foot holes, B3 mounted (mm) 508
• Length foot holes, B3 mounted (mm) S=286, M=311
• Diameter foot holes (mm) 28

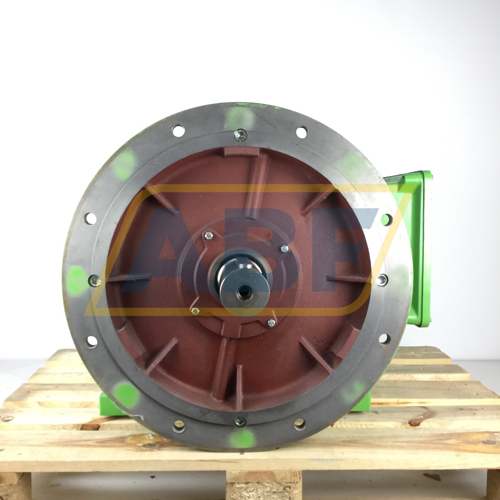

• Outer diameter flange B5/V1/B35/V3 (mm) 660
• Spigot B5/V1/B35/V3 (mm) 550
• Pitch circle diameter B5/V1/B35/V3 (mm) 600
• Number of flange holes 8
• Diameter flange holes B5/V1/B35/V3 (mm) 24
