Specifications

• Availability 0 pcs
• Brand Varvel

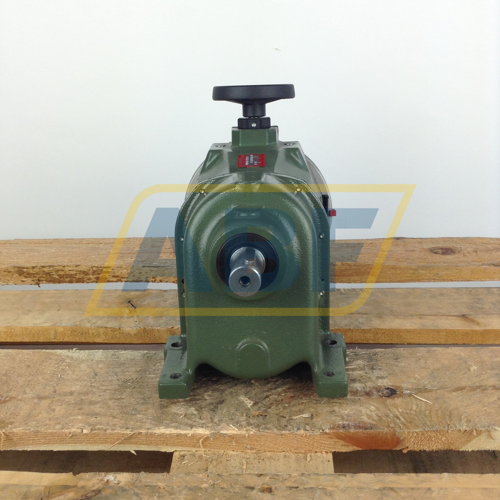

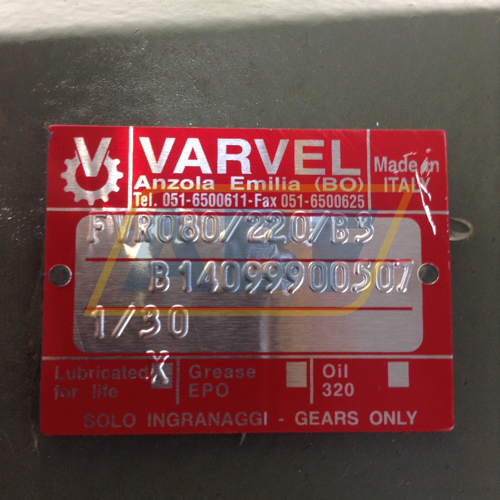

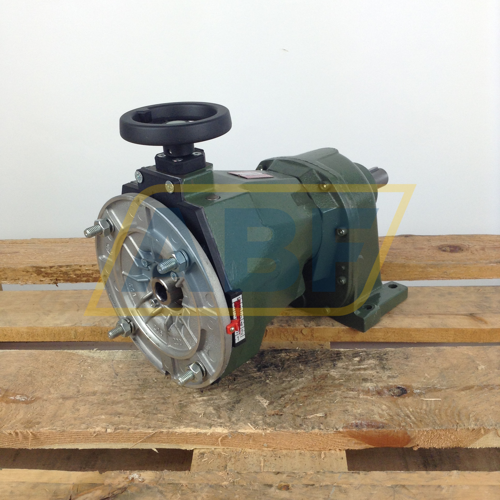

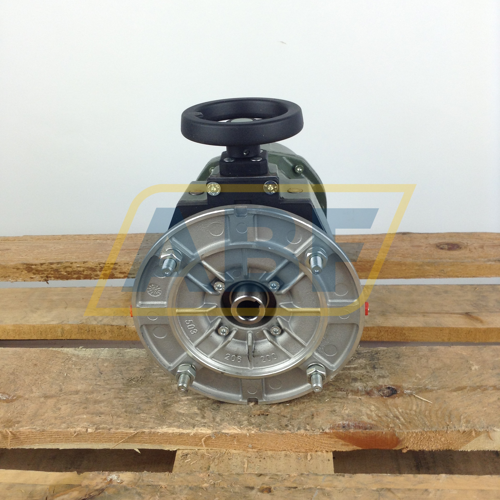

• Item Number FVR080/220B3-80B5I30 Varvel
• Category Gearboxes

Weight and Dimensions

• Weight (kg) 22.35

Product Properties

• Mounting B5 (outer flange)
• Gear ratio i = n1/n2 30
• IEC Framesize 80

Detailed Product Properties

• IEC Framesize 80
• Shaft diameter (mm) 19
• Shaft height IEC in JDE 080
• Shaft length (mm) 40
• Shaft key width (mm) 6
• Shaft key length (mm) 32
• Thread shaft bore M6
• Shaft height, B3 mounted (mm) 80
• Width foot holes, B3 mounted (mm) 125
• Length foot holes, B3 mounted (mm) 100
• Diameter foot holes (mm) 9.5
• Outer diameter flange B5/V1/B35/V3 (mm) 200
• Spigot B5/V1/B35/V3 (mm) 130
• Pitch circle diameter B5/V1/B35/V3 (mm) 165
• Number of flange holes 4
• Diameter flange holes B5/V1/B35/V3 (mm) 12
• Pitch circle diameter B14/B34/V18/V19 (mm) 100
• Thread flange holes B14/B34/V18/V19 M6
• Outer diameter flange B14/B34/V18/V19 (mm) 120
• Spigot B14/B34/V18/V19 (mm) 80
