Specifications

• Availability 0 pcs
• Brand VEM

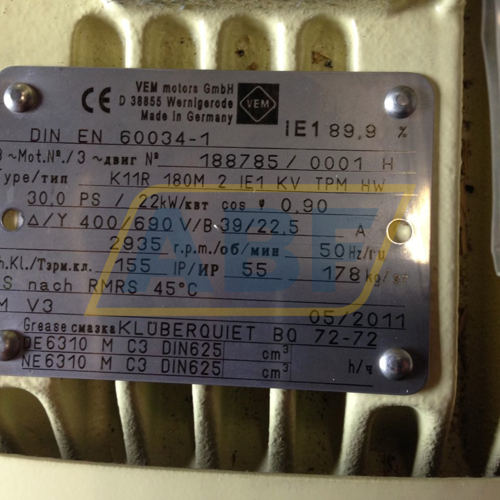

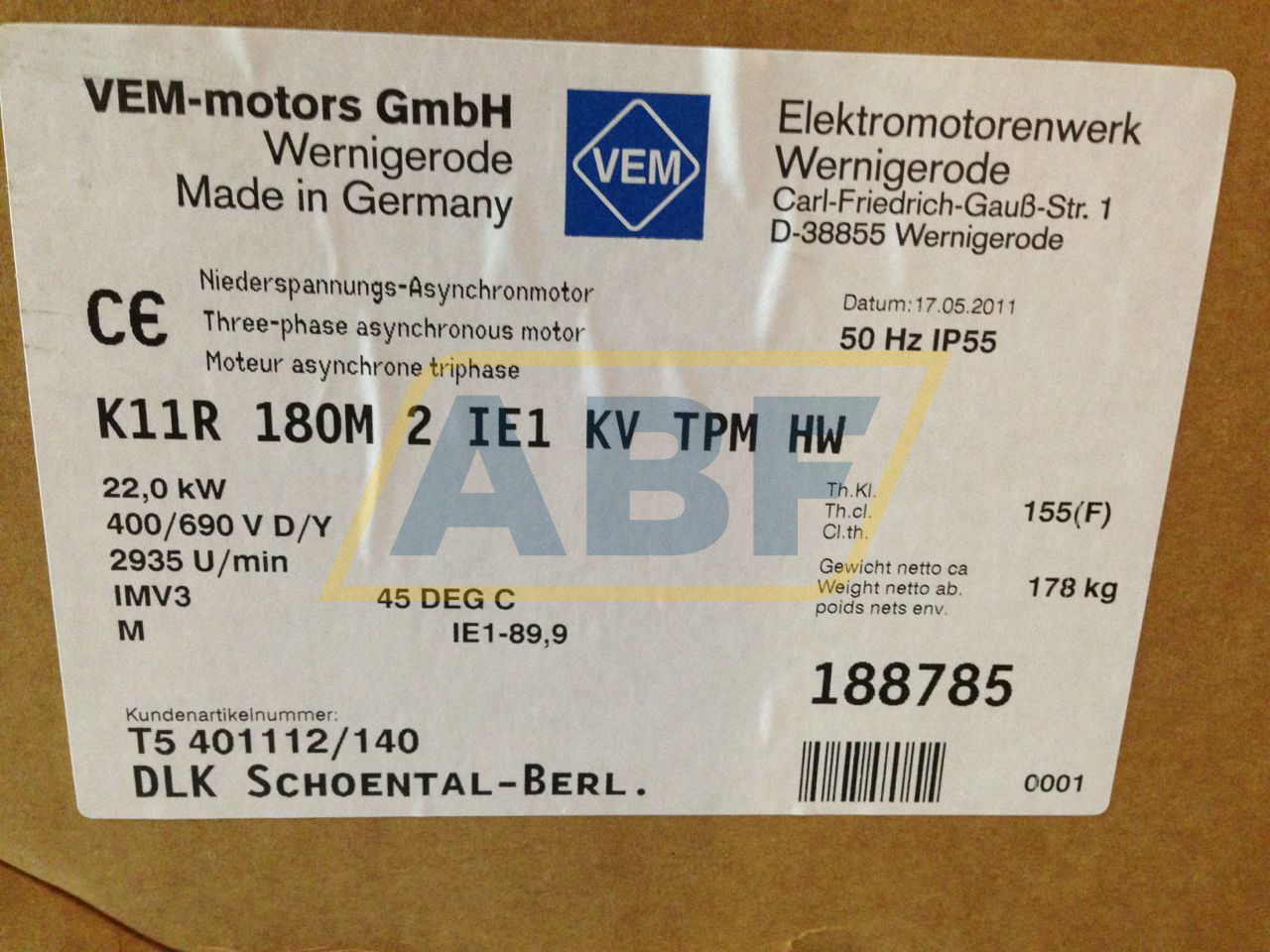

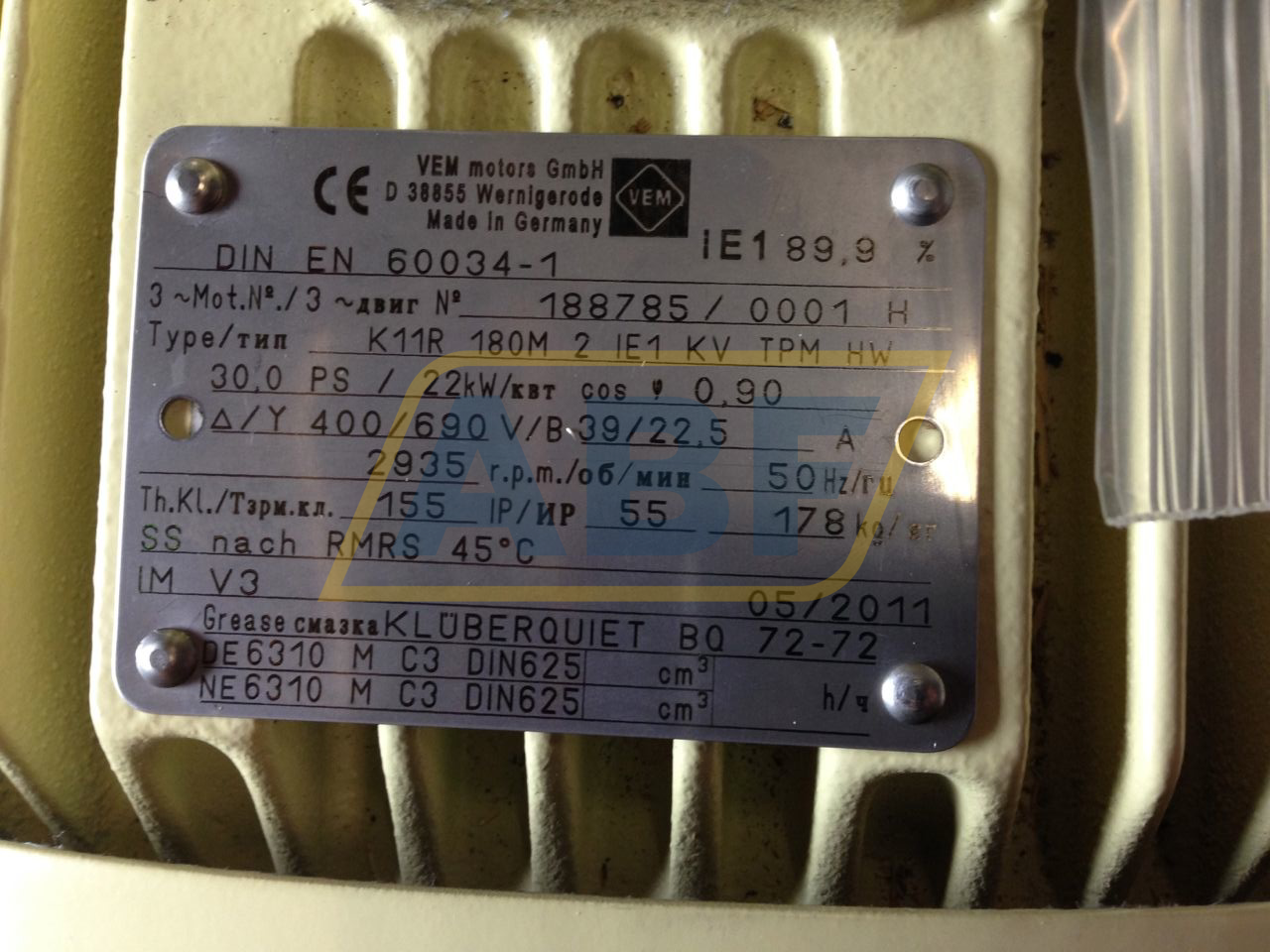

• Item Number K11R180M2V3 VEM
• Category 3-Phase Motors

Weight and Dimensions

• Weight (kg) 178

Product Properties

• Rated power (kW) 22
• Speed at 50Hz (rpm) 3000 / 2-Poles
• Frequency 50 Hz
• Energy efficiency IE1 = standard = EFF2
• Mounting V3 (outer flange)
• Brake No Brake
• IP Class IP55
• Explosion safety (Atex) No protection
• IEC Framesize 180

Detailed Product Properties

• Voltage 380-400VD / 660-690VY
• IEC Framesize 180
• Shaft diameter (mm) 48
• Housing material Cast Iron
• AC/DC AC
• Standard IEC
• Shaft height IEC in JDE 180
• Shaft length (mm) 110
• Shaft key width (mm) 14
• Shaft key length (mm) 100
• Thread shaft bore M16
• Shaft height, B3 mounted (mm) 180
• Width foot holes, B3 mounted (mm) 279
• Length foot holes, B3 mounted (mm) S=286, M=311
• Diameter foot holes (mm) 15
• Outer diameter flange B5/V1/B35/V3 (mm) 350
• Spigot B5/V1/B35/V3 (mm) 250
• Pitch circle diameter B5/V1/B35/V3 (mm) 300
• Number of flange holes 4
• Diameter flange holes B5/V1/B35/V3 (mm) 18.5
