Specifications

• Availability 1 pc
• Brand Varvel

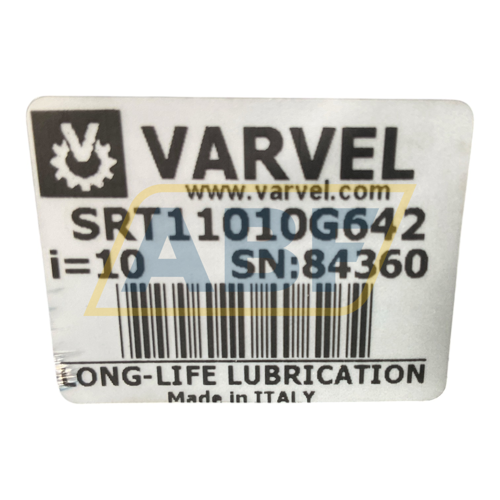

• Item Number SRT11010G642-100B14 Varvel
• Category Gearboxes

Weight and Dimensions

• Weight (kg) 39

Product Properties

• Mounting B14 (inner flange)
• Gear ratio i = n1/n2 10
• IEC Framesize 100

Detailed Product Properties

• IEC Framesize 100
• Shaft diameter (mm) 28
• Shaft height IEC in JDE 100
• Shaft length (mm) 60
• Shaft key width (mm) 8
• Shaft key length (mm) 50
• Thread shaft bore M10
• Shaft height, B3 mounted (mm) 100
• Width foot holes, B3 mounted (mm) 160
• Length foot holes, B3 mounted (mm) S=286, M=311
• Diameter foot holes (mm) 12
• Outer diameter flange B5/V1/B35/V3 (mm) 250
• Spigot B5/V1/B35/V3 (mm) 180
• Pitch circle diameter B5/V1/B35/V3 (mm) 215
• Number of flange holes 4
• Diameter flange holes B5/V1/B35/V3 (mm) 14.5
• Pitch circle diameter B14/B34/V18/V19 (mm) 130
• Thread flange holes B14/B34/V18/V19 M8
• Outer diameter flange B14/B34/V18/V19 (mm) 160
• Spigot B14/B34/V18/V19 (mm) 110
