Specifications

• Availability 0 pcs
• Brand Varvel

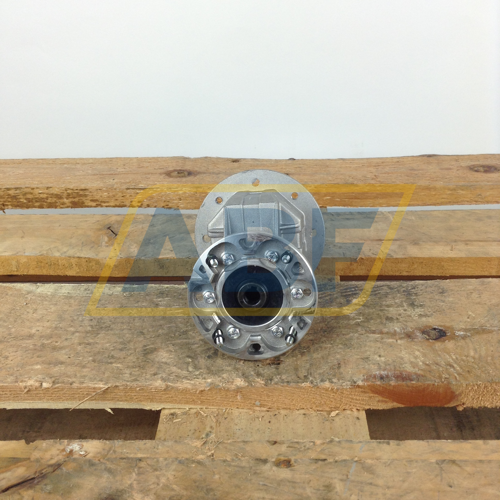

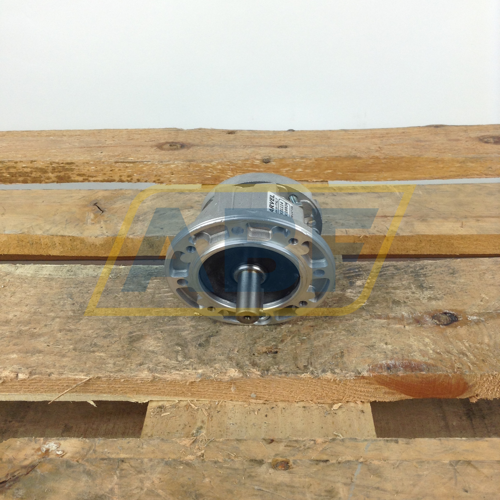

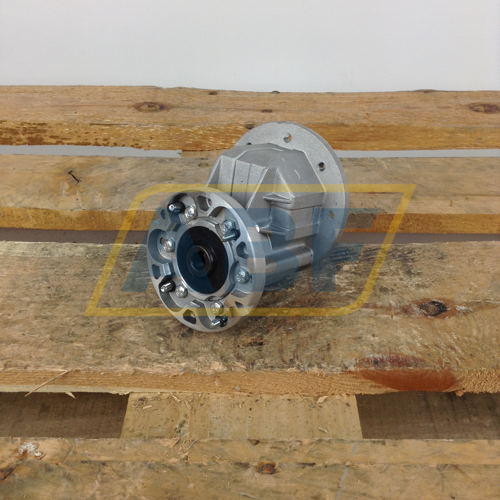

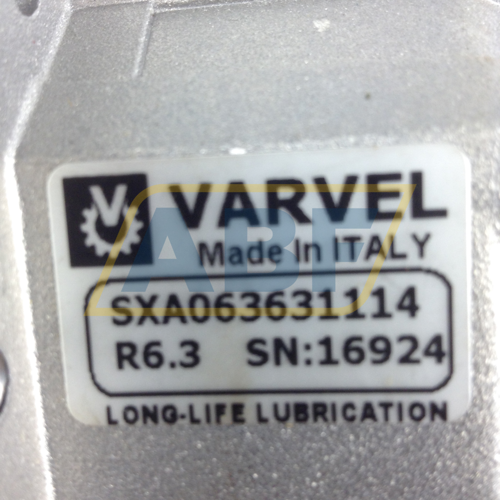

• Item Number SXA063631114 Varvel
• Category Gearboxes

Weight and Dimensions

• Weight (kg) 1.35

Product Properties

• Mounting B5 (outer flange)
• Gear ratio i = n1/n2 6
• IEC Framesize 63

Detailed Product Properties

• IEC Framesize 63
• Shaft diameter (mm) 11
• Shaft height IEC in JDE 063
• Shaft length (mm) 23
• Shaft key width (mm) 4
• Shaft key length (mm) 16
• Thread shaft bore M4
• Shaft height, B3 mounted (mm) 63
• Width foot holes, B3 mounted (mm) 100
• Length foot holes, B3 mounted (mm) 80
• Diameter foot holes (mm) 7
• Outer diameter flange B5/V1/B35/V3 (mm) 140
• Spigot B5/V1/B35/V3 (mm) 95
• Pitch circle diameter B5/V1/B35/V3 (mm) 115
• Number of flange holes 4
• Diameter flange holes B5/V1/B35/V3 (mm) 10
• Pitch circle diameter B14/B34/V18/V19 (mm) 75
• Thread flange holes B14/B34/V18/V19 M5
• Outer diameter flange B14/B34/V18/V19 (mm) 90
• Spigot B14/B34/V18/V19 (mm) 60
