Specifications

• Availability 0 pcs
• Brand DR Drives

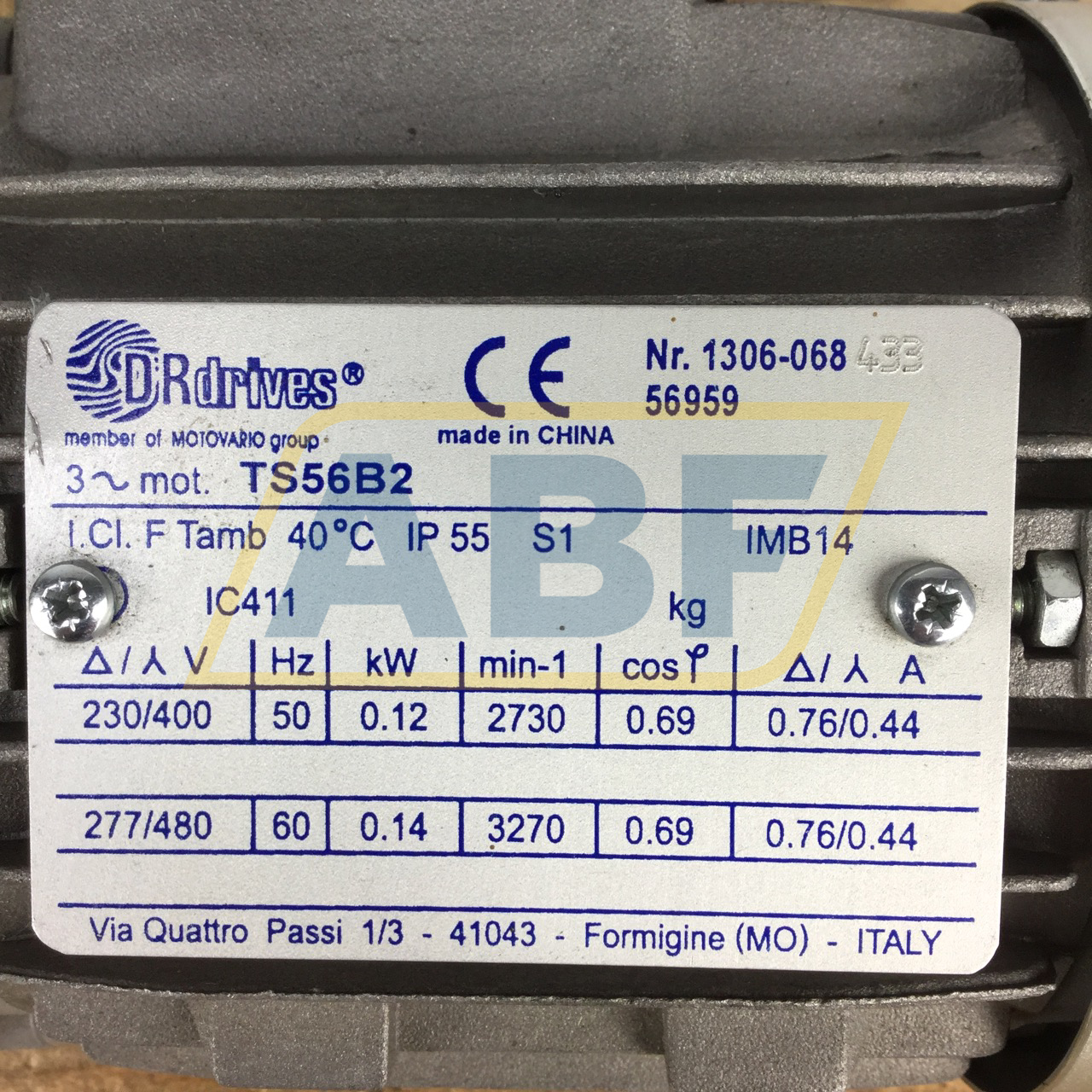

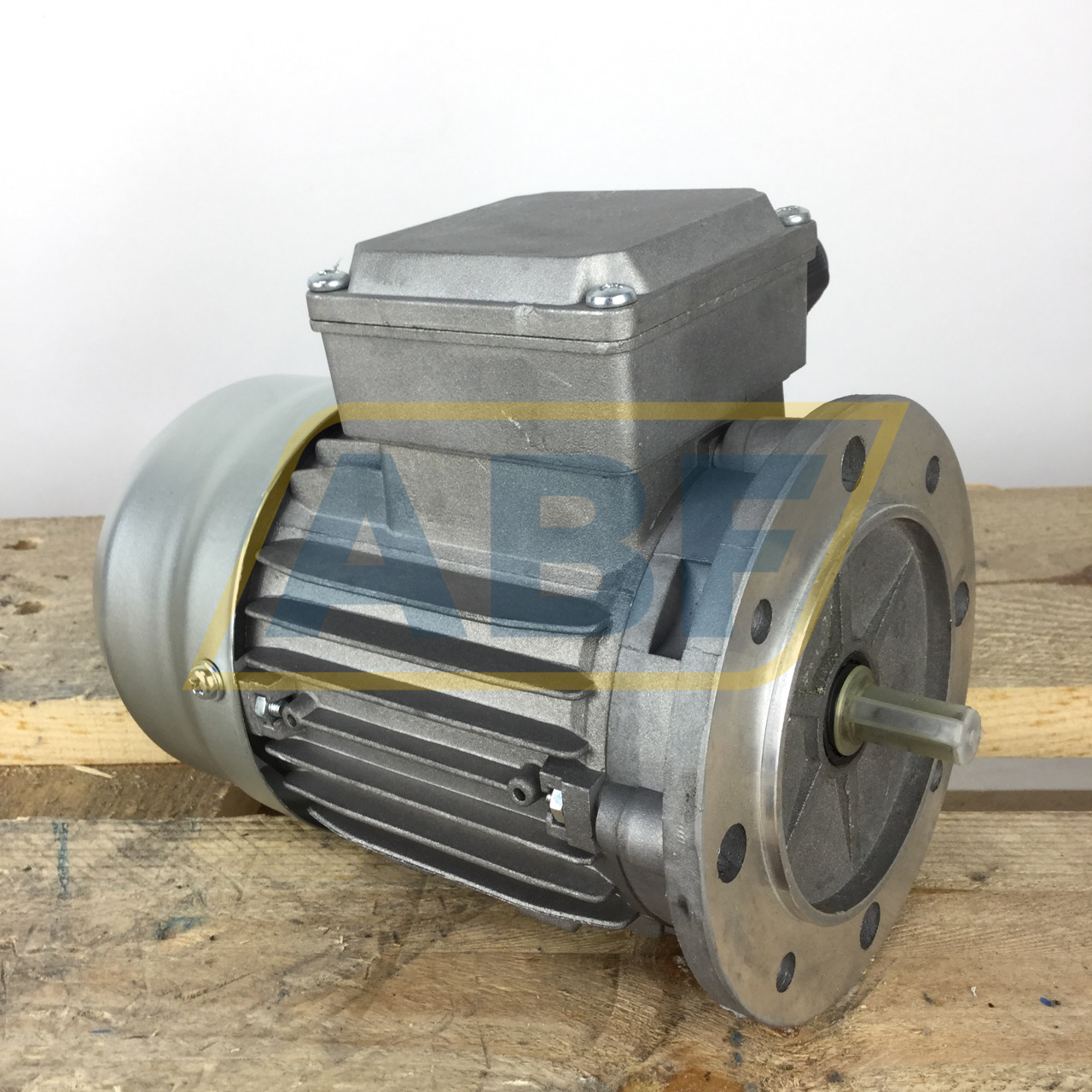

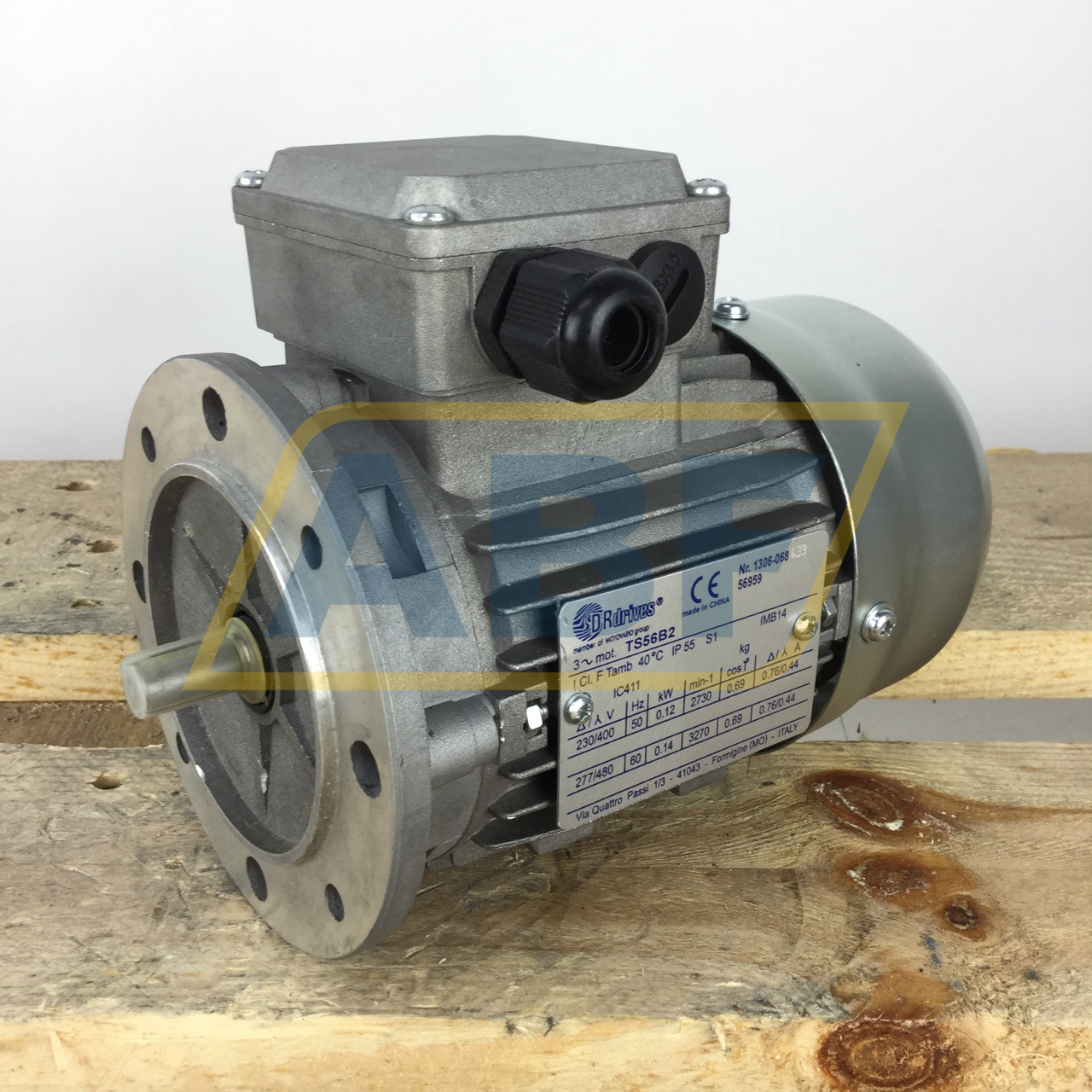

• Item Number TS56B2B14 DR Drives
• Category 3-Phase Motors

Weight and Dimensions

• Weight (kg) 3.2

Product Properties

• Rated power (kW) 0.12
• Speed at 50Hz (rpm) 3000 / 2-Poles
• Frequency 50/60 Hz
• Energy efficiency Not applicable

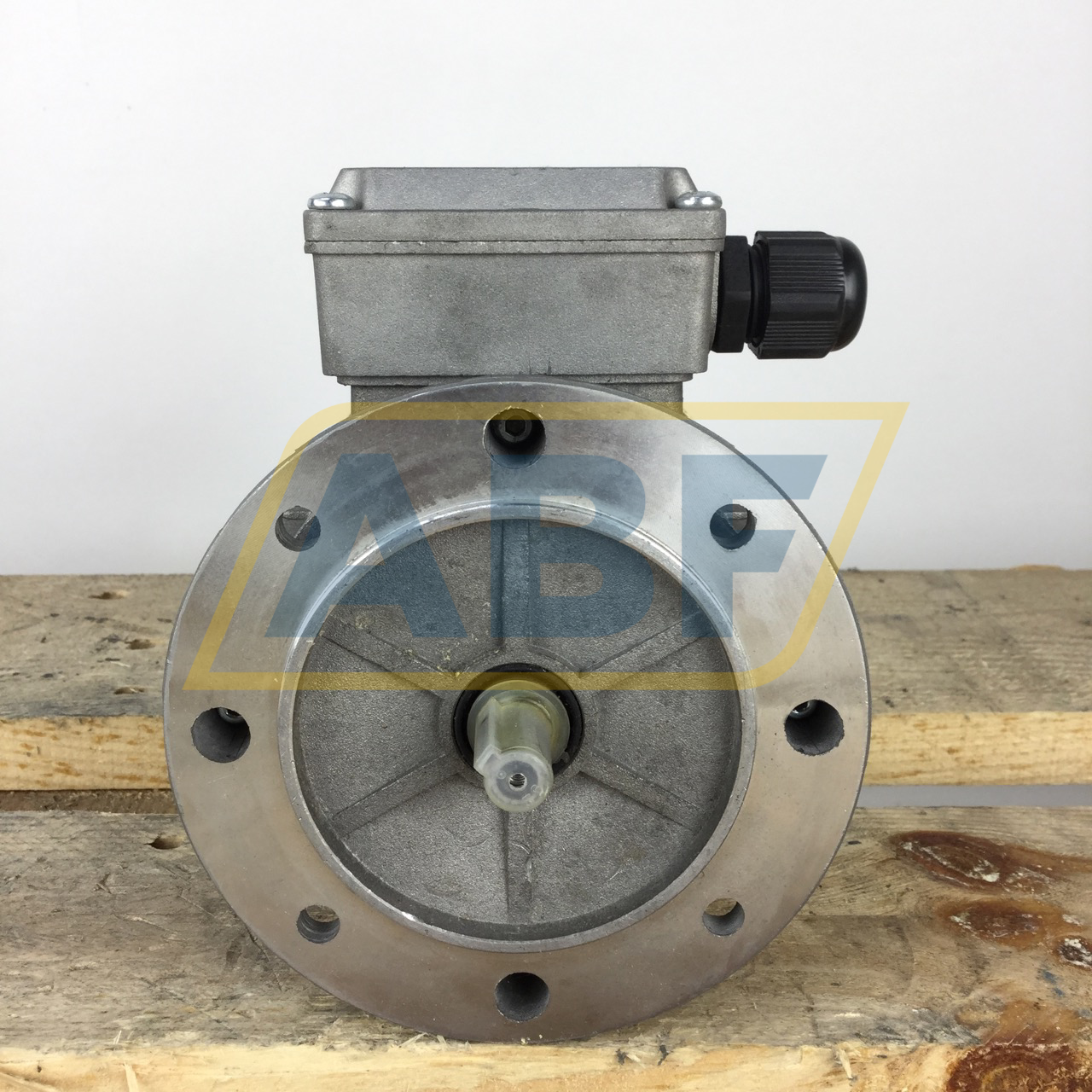

• Mounting B14 (inner flange)
• Brake No Brake
• IP Class IP55
• Explosion safety (Atex) No protection
• IEC Framesize 56

Detailed Product Properties

• Voltage 220-230VD / 380-400VY
• Shaft diameter (inch) 0.625
• Housing material Alu
• AC/DC AC
• NEMA framesize 56
• Standard IEC
• Shaft height NEMA in JDE 056
• Shaft length (inch) 1.875
• Shaft height, B3 mounted (inch) 3.5
• Width foot holes, B3 mounted (inch) 4.875
• Length foot holes, B3 mounted (inch) 3
• Diameter foot holes (inch) 0.3438
• Pitch flange holes C-face (inch) 5.875
• Outer diameter flange C-face (inch) 6.5
• Spigot C-face (inch) 4.5
