Loading equivalents
Specifications
Availability195 pcs
BrandINA

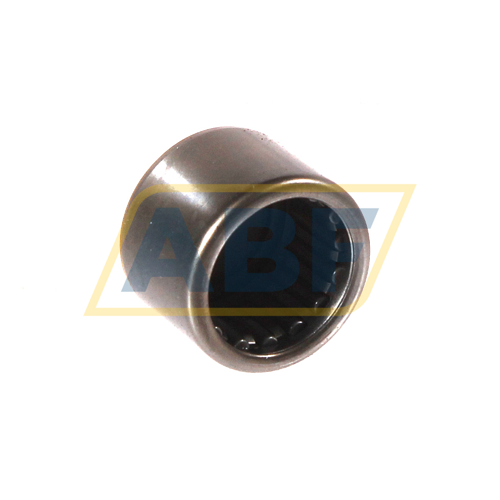

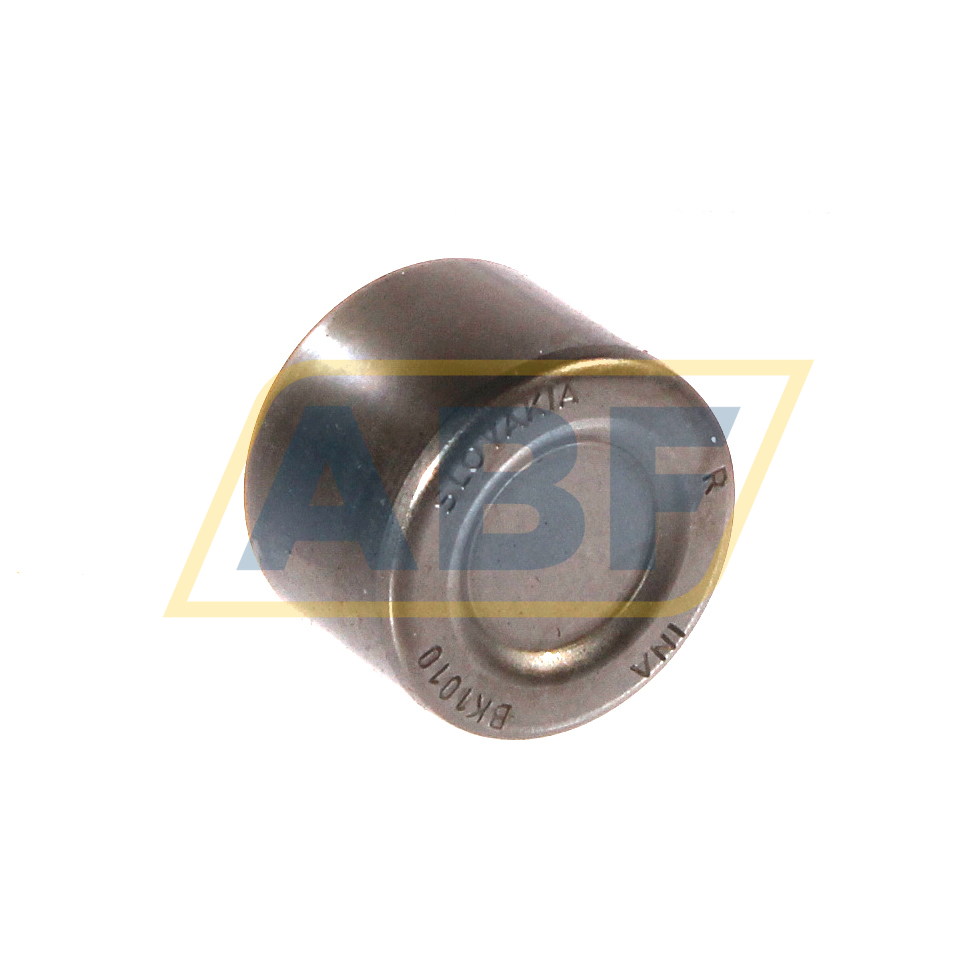

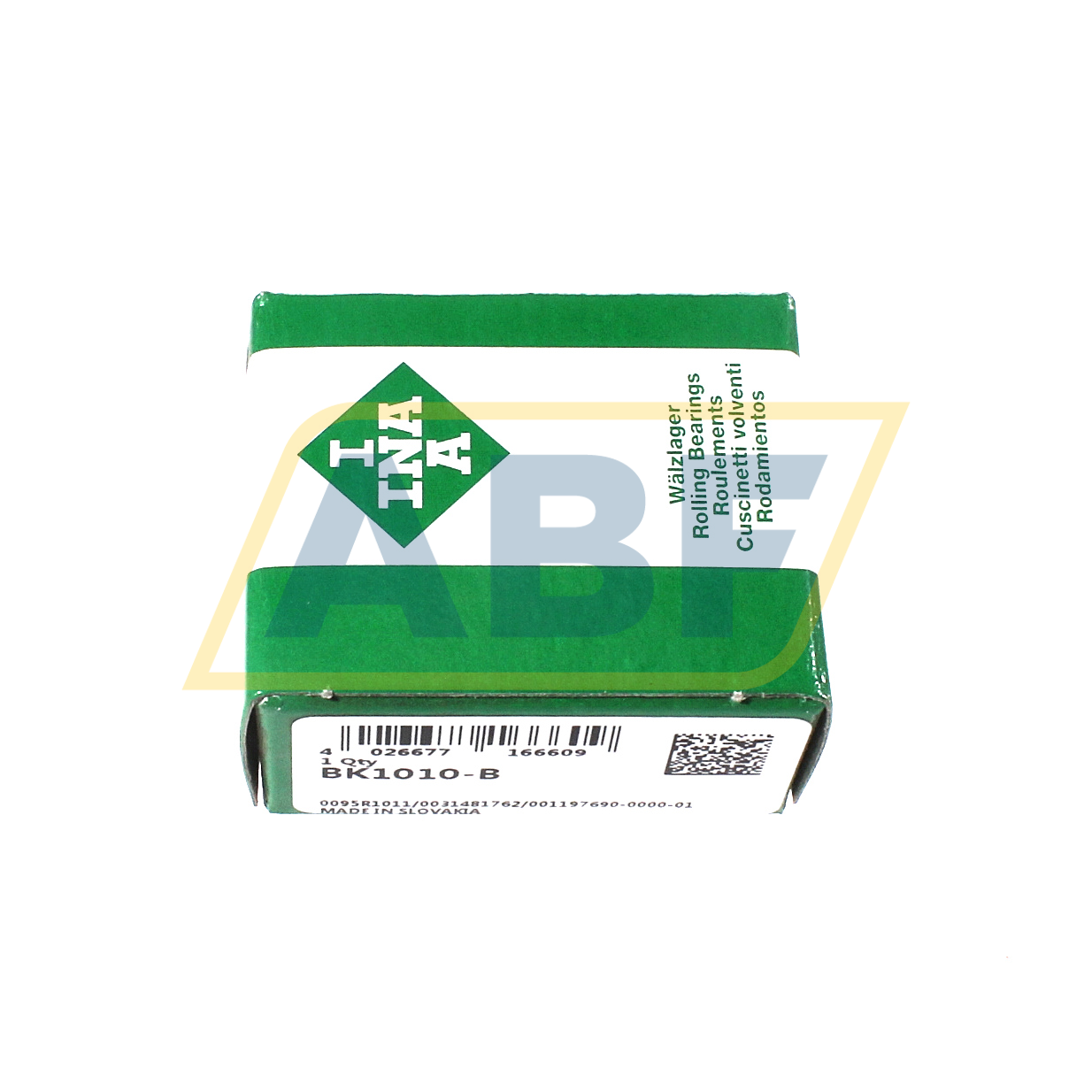

Item NumberBK1010-B INA
Manufacturer Part Number0011976900000
EAN4026677166609
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
10
Outer (D) MM
14
Width (B) MM
10
Inner (d) Inch
0.3937
Outer (D) Inch
0.5512
Width (B) Inch
0.3937
Weight (kg)
0.004
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Under roller diameter (F w) mm
10
Radial Static Load Rating C0r (N)
5100
Radial Dynamic Load Rating Cr (N)
4400
Limiting speed (n G)
24300
Limiting speed for grease lubrication (n G Grease)
14600
Reference speed (n ϑr)
18700
ECLASS number
23-05-09-06
ECLASS2 number
23-05-09-06
Medias description
Drawn cup needle roller bearings with closed end BK, to DIN 618/ISO 3245
Suffix description
BThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
