Loading equivalents
Specifications
Availability669 pcs
BrandINA
Item NumberBK1210-B INA
Manufacturer Part Number0011977110000
EAN4012802413922
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
12
Outer (D) MM
16
Width (B) MM
10
Inner (d) Inch
0.4724
Outer (D) Inch
0.6299
Width (B) Inch
0.3937
Weight (kg)
0.005
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Under roller diameter (F w) mm
12
Radial Static Load Rating C0r (N)
6200
Radial Dynamic Load Rating Cr (N)
4950
Limiting speed (n G)
20700
Limiting speed for grease lubrication (n G Grease)
12400
Reference speed (n ϑr)
15700
ECLASS number
23-05-09-06
ECLASS2 number
23-05-09-06
Medias description

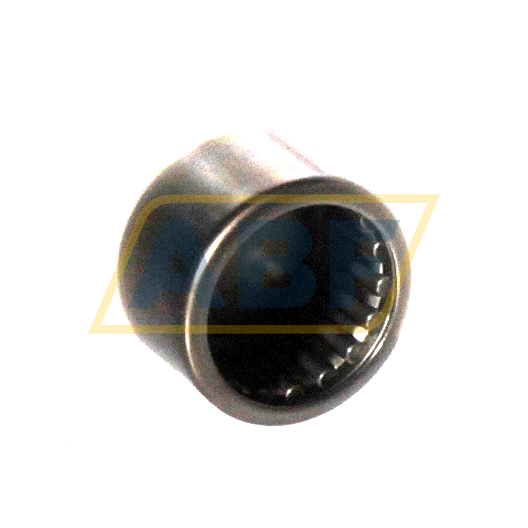

Drawn cup needle roller bearings with closed end BK, to DIN 618/ISO 3245
Suffix description
BThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
