Loading equivalents
Specifications
Availability7,617 pcs
BrandINA

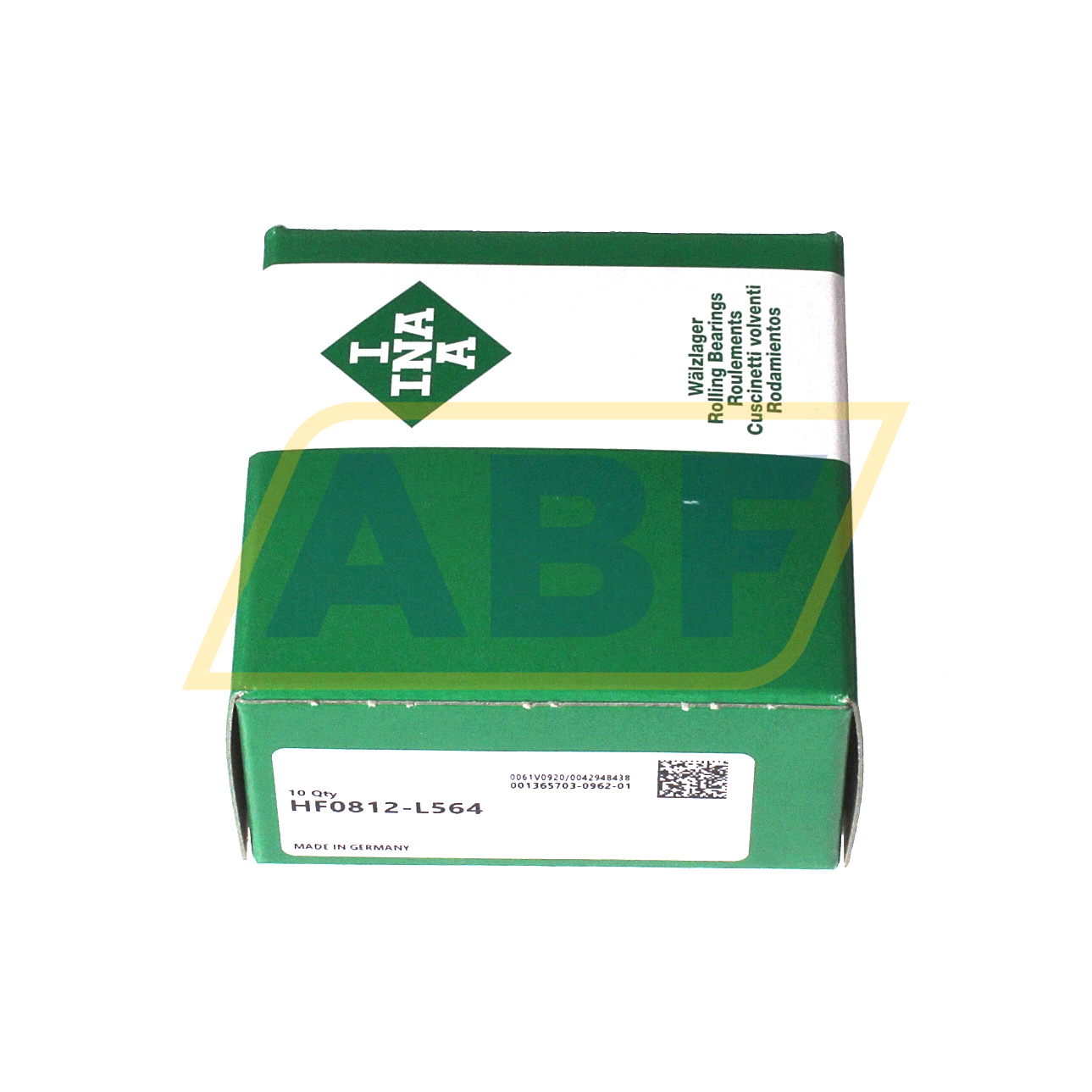

Item NumberHF0812-L564 INA
Also known as
0013657030962
HF0812
EAN4012802611892
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
8,00
Outer (D) MM
12,00
Width (B) MM
12,00
Inner (d) Inch
0.3150
Outer (D) Inch
0.4724
Width (B) Inch
0.4724
Weight (kg)
0.0035
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Under roller diameter (F w) mm
8,00
Permissible torque (M d per)
"3.1500"
Limiting speed for rotating shaft (n GW)
"17000.0000"
Limiting speed for rotating outer ring (n GA)
"12000.0000"
ECLASS number
23-05-21-90
ECLASS2 number
23-05-21-90
Medias description
Drawn cup roller clutches HF, with steel springs
Suffix description
L564Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication
