Loading equivalents
Specifications
Availability17 pcs
BrandINA
Item NumberHF1012-KF-L564 INA
Manufacturer Part Number0005001780962
Also known as
HF1012KF
EAN4047643177313
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
10
Outer (D) MM
14
Width (B) MM
12
Inner (d) Inch
0.3937
Outer (D) Inch
0.5512
Width (B) Inch
0.4724
Weight (kg)
0.004
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Under roller diameter (F w) mm
10
Permissible torque (M d per)
5.3
Limiting speed for rotating shaft (n GW)
14000
Limiting speed for rotating outer ring (n GA)
11000
ECLASS number
23-05-21-90
ECLASS2 number
23-05-21-90
Medias description

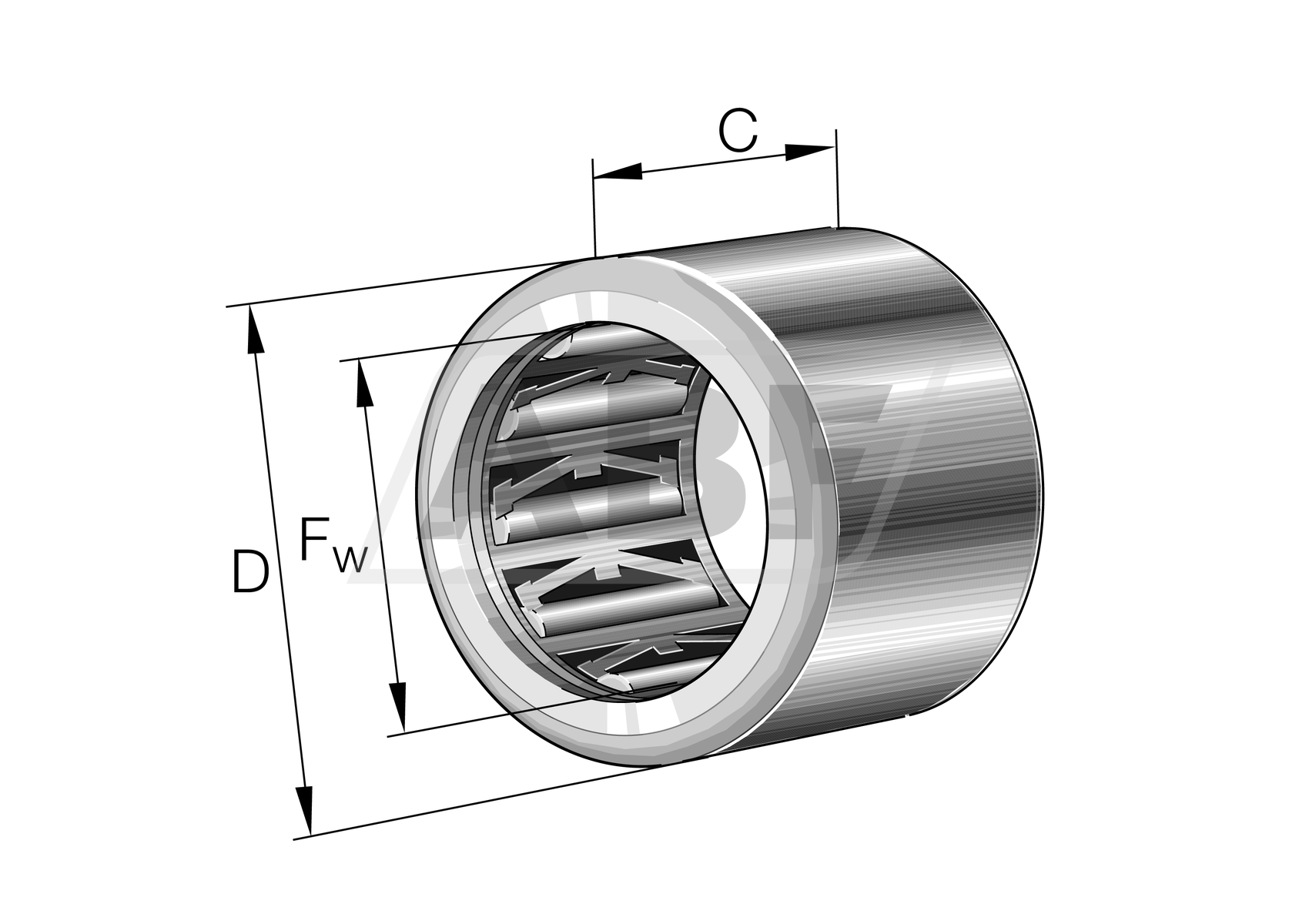

Drawn cup roller clutches HF..-KF, with plastic springs
Suffix description
KFPlastic Springs
L564Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication
