Specifications
Availability289 pcs
BrandINA

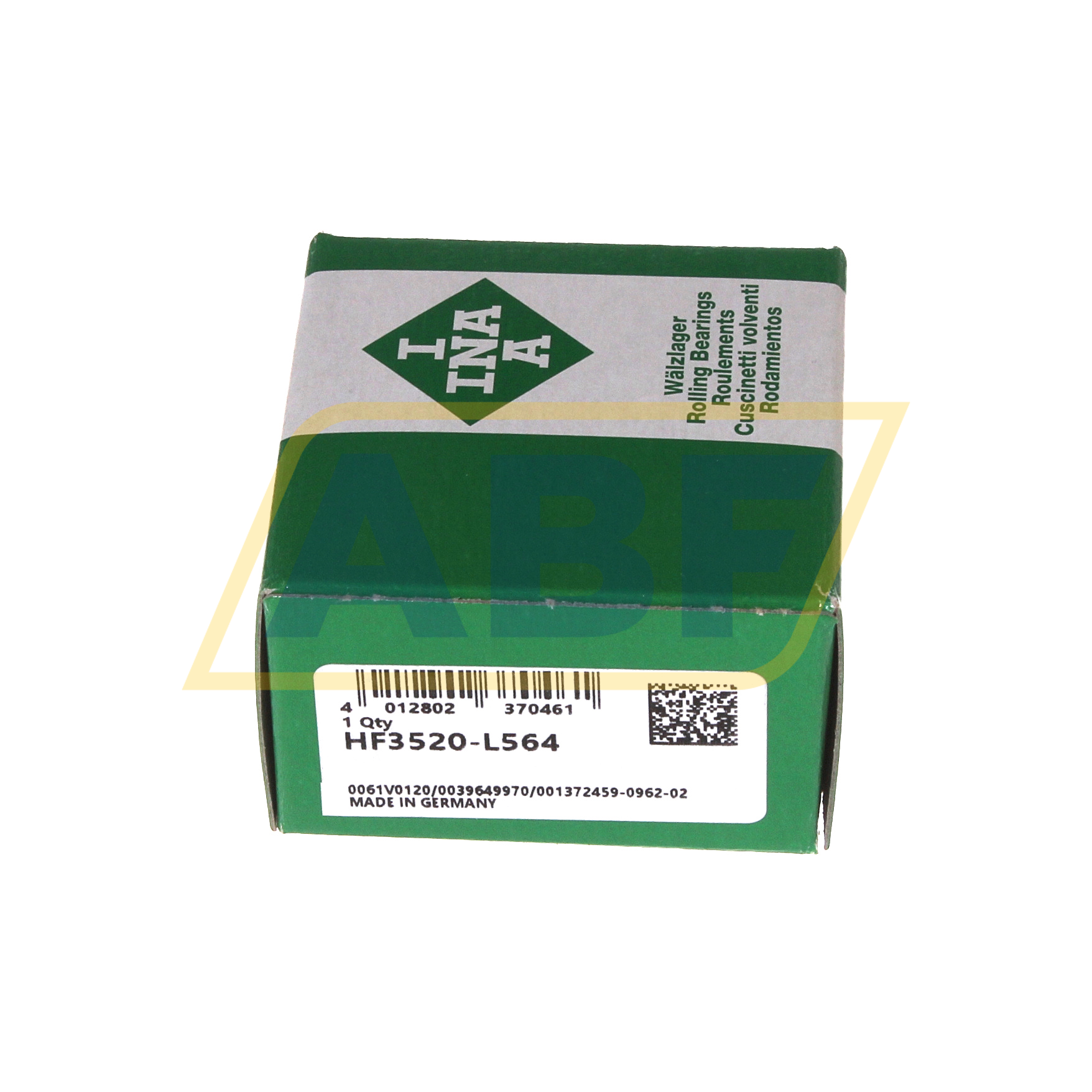

Item NumberHF3520-L564 INA
Also known as
0013724590962
HF3520
EAN4012802370461
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
35,00
Outer (D) MM
42,00
Width (B) MM
20,00
Inner (d) Inch
1.3780
Outer (D) Inch
1.6535
Width (B) Inch
0.7874
Weight (kg)
0.04
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Under roller diameter (F w) mm
35,00
Permissible torque (M d per)
"121.0000"
Limiting speed for rotating shaft (n GW)
"3900.0000"
Limiting speed for rotating outer ring (n GA)
"3900.0000"
ECLASS number
23-05-21-90
ECLASS2 number
23-05-21-90
Medias description

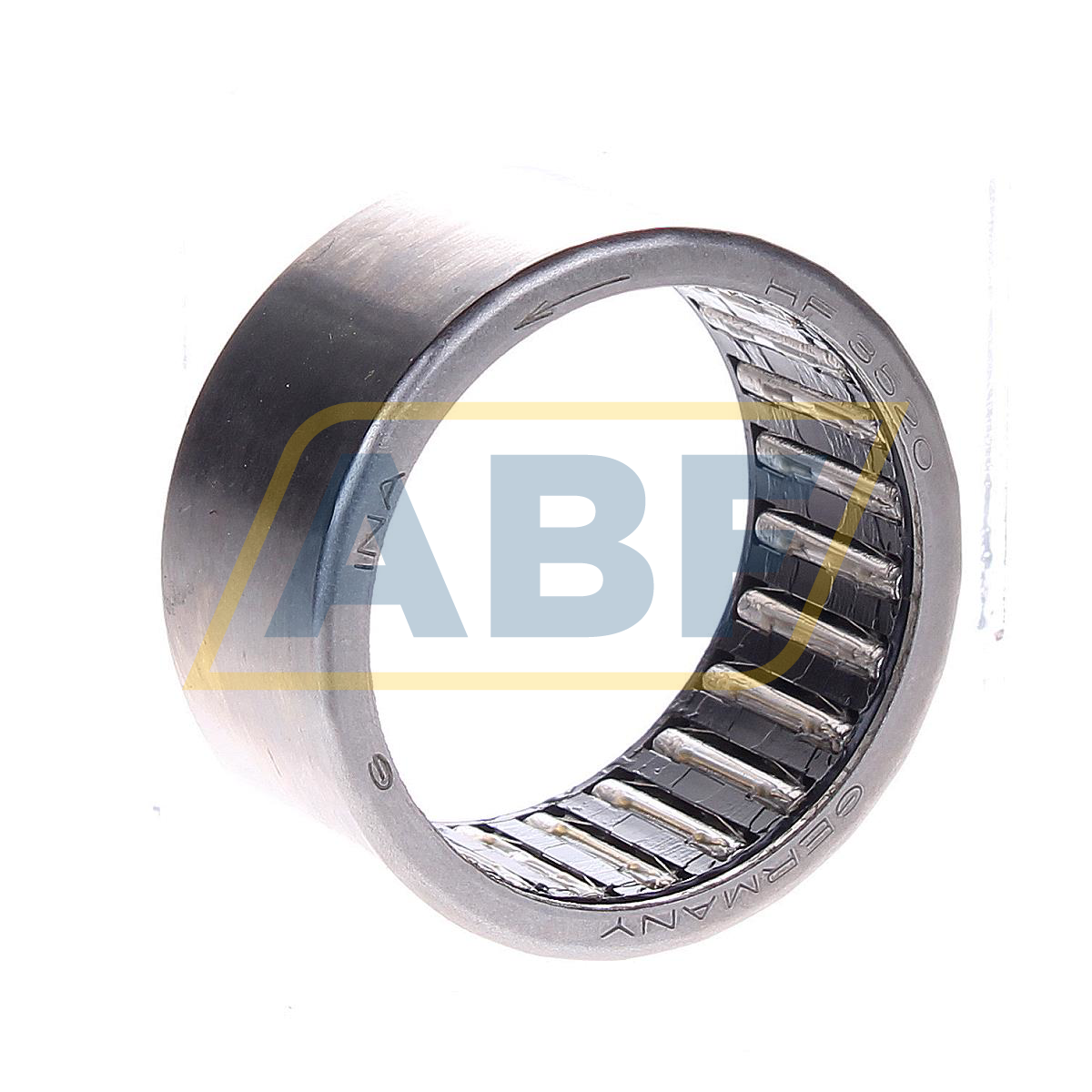

Drawn cup roller clutches HF, with steel springs
Suffix description
L564Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication
