Specifications
Availability195 pcs
BrandINA

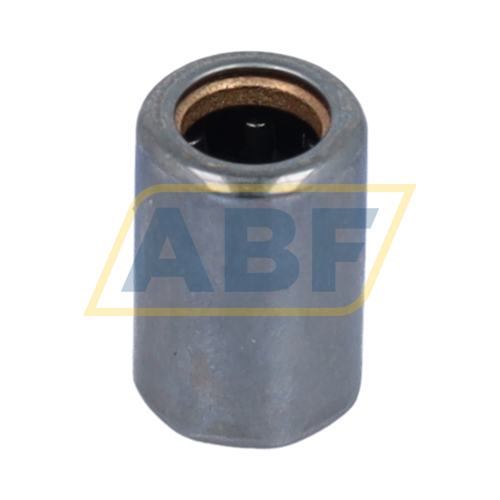

Item NumberHFL0615-L564 INA
Also known as
0017066830962
HFL0615
EAN4012802204896
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
6,00
Outer (D) MM
10,00
Width (B) MM
15,00
Inner (d) Inch
0.2362
Outer (D) Inch
0.3937
Width (B) Inch
0.5906
Weight (kg)
0.004
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Under roller diameter (F w) mm
6,00
Limiting speed for rotating shaft (n GW)
"23000.0000"
Limiting speed for rotating outer ring (n GA)
"13000.0000"
ECLASS number
23-05-21-90
ECLASS2 number
23-05-21-90
Medias description
Drawn cup roller clutch HFL, with bearing
Suffix description
L564Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication
