Loading equivalents
Specifications
Availability22 pcs
BrandINA

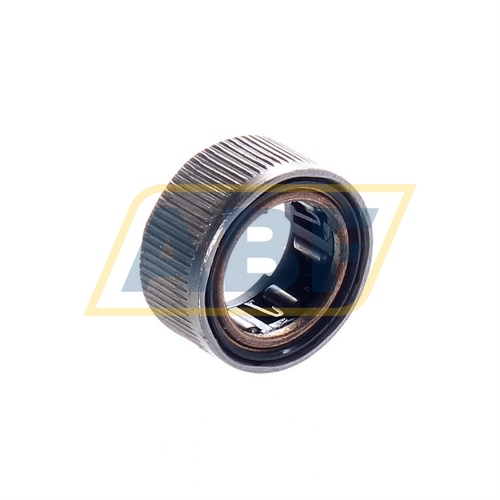

Item NumberHFL0806-KF-R-A-L564 INA
Also known as
0057621620962
HFL0806-KF-R-A
EAN4054362383246
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
8,00
Outer (D) MM
12,00
Width (B) MM
6,00
Inner (d) Inch
0.3150
Outer (D) Inch
0.4724
Width (B) Inch
0.2362
Weight (kg)
0.002
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Under roller diameter (F w) mm
8,00
Limiting speed for rotating shaft (n GW)
"17000.0000"
Limiting speed for rotating outer ring (n GA)
"12000.0000"
ECLASS number
23-05-21-90
ECLASS2 number
23-05-21-90
Medias description
Drawn cup roller clutches HFL..-KF-R, with plain or rolling bearing arrangement, plastic springs, knurled outer ring
Suffix description
KFPlastic Springs
RPartially Knurled Outer Ring For Assembly In Plastic Housing
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
L564Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication
