Loading equivalents
Specifications
Availability72 pcs
BrandINA

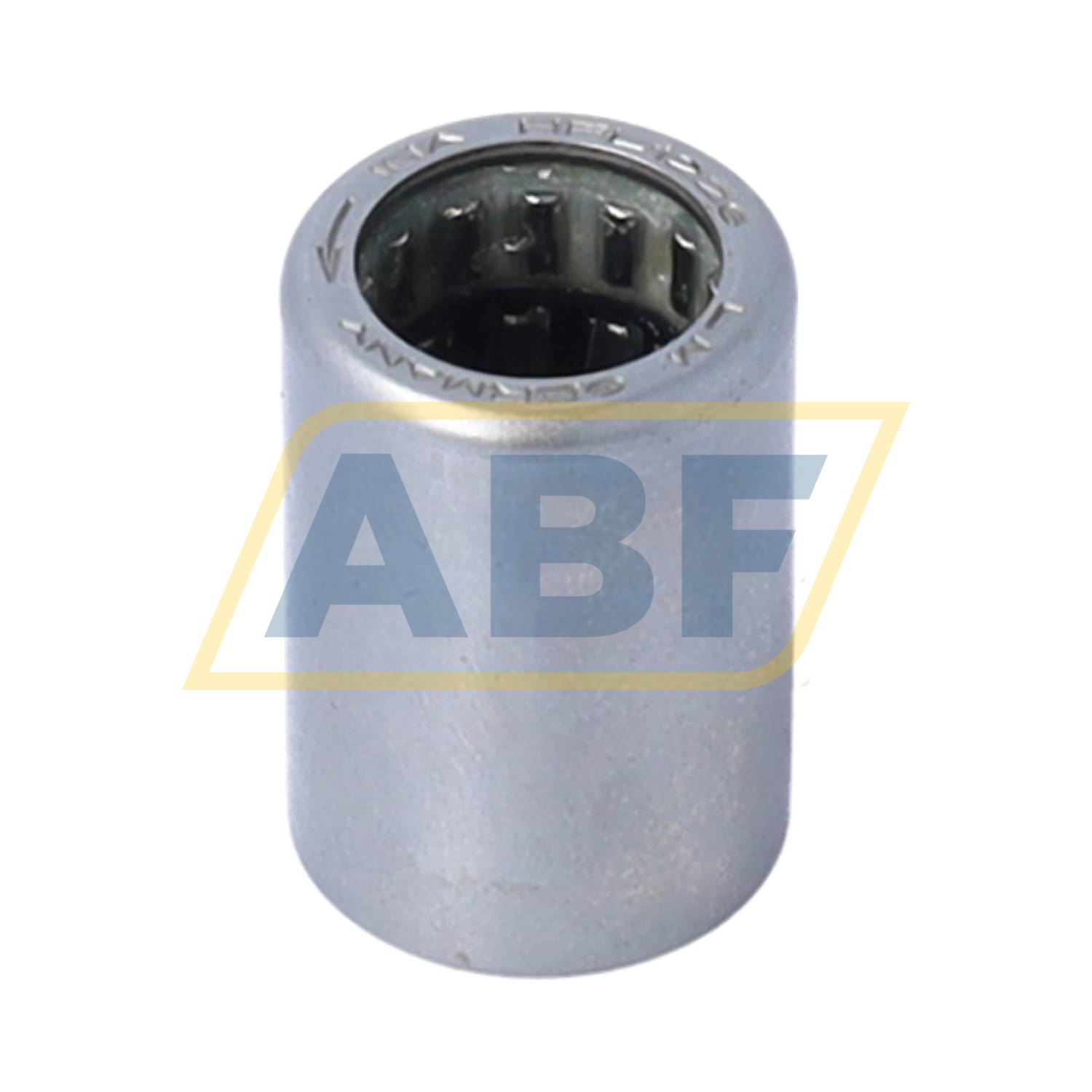

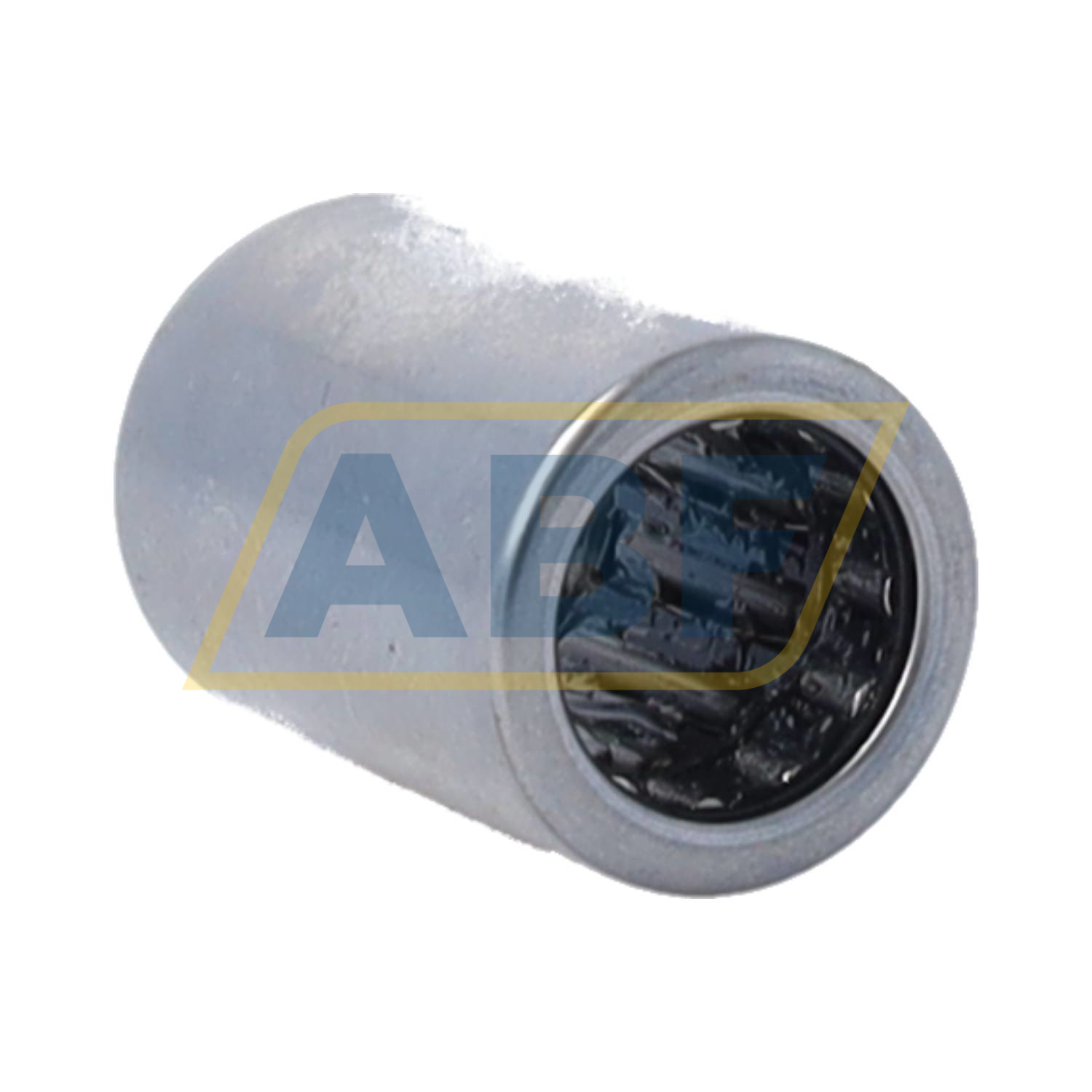

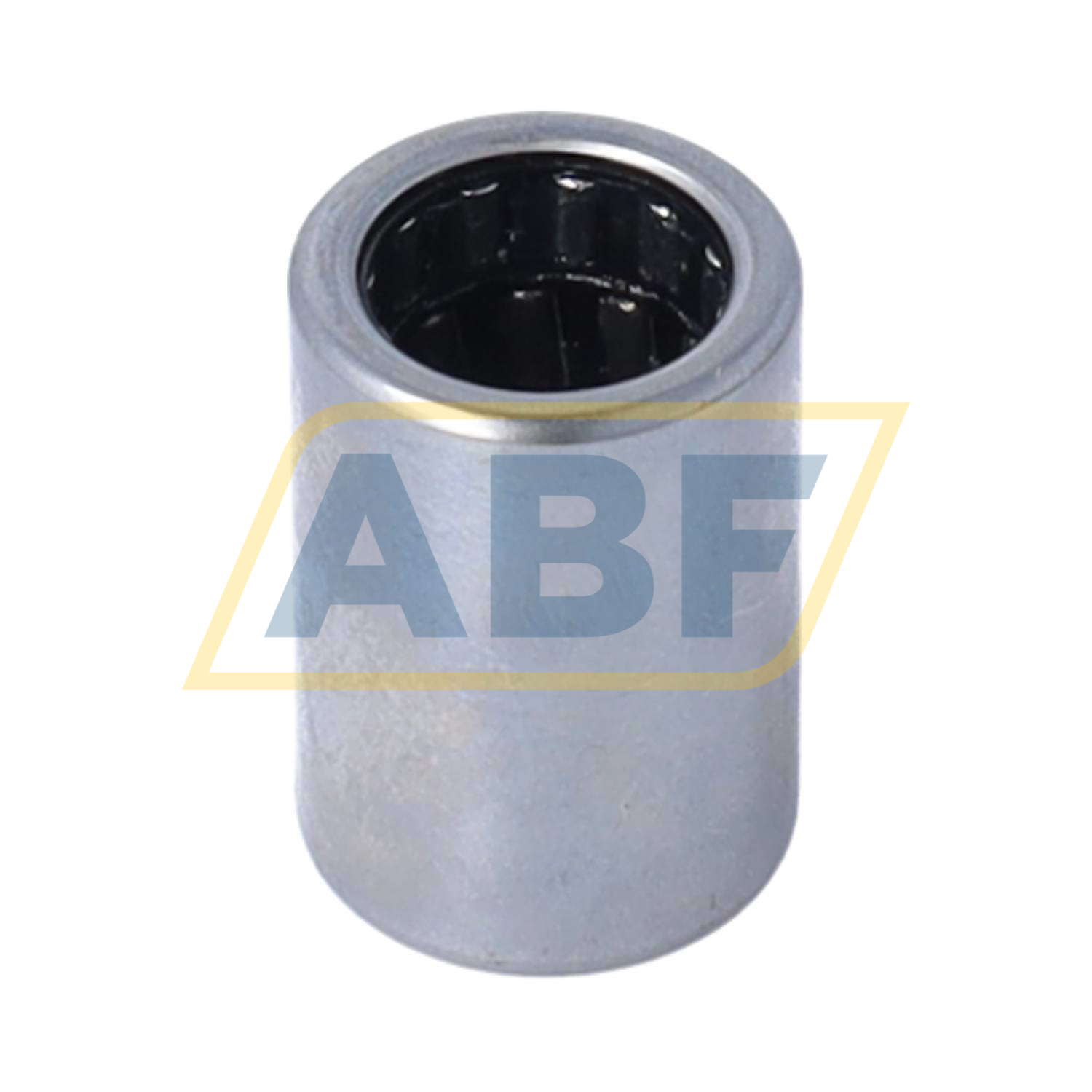

Item NumberHFL1226-L564 INA
Manufacturer Part Number0016001840962
Also known as
HFL1226
EAN4047643183222
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
12
Outer (D) MM
18
Width (B) MM
26
Inner (d) Inch
0.4724
Outer (D) Inch
0.7087
Width (B) Inch
1.0236
Weight (kg)
0.01777
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Under roller diameter (F w) mm
12
Radial Static Load Rating C0r (N)
6700
Radial Dynamic Load Rating Cr (N)
6300
Limiting speed for rotating shaft (n GW)
11000
Limiting speed for rotating outer ring (n GA)
8000
ECLASS number
23-05-21-90
ECLASS2 number
23-05-21-90
Medias description
Drawn cup roller clutch HFL, with bearing
Suffix description
L564Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication
