Loading equivalents
Specifications
Availability467 pcs
BrandINA

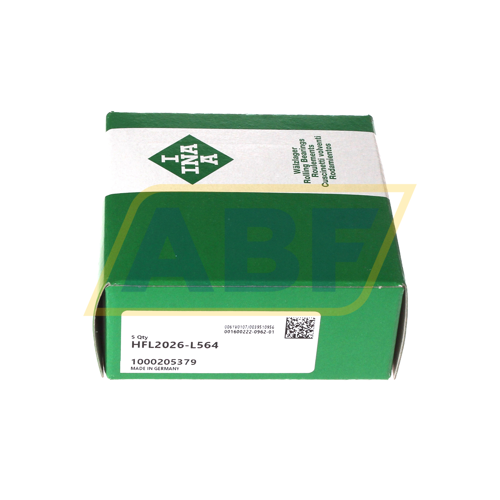

Item NumberHFL2026-L564 INA
Manufacturer Part Number0016002220962
Also known as
HFL2026
EAN4047643183185
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
20
Outer (D) MM
26
Width (B) MM
26
Inner (d) Inch
0.7874
Outer (D) Inch
1.0236
Width (B) Inch
1.0236
Weight (kg)
0.03
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Under roller diameter (F w) mm
20
Radial Static Load Rating C0r (N)
11400
Radial Dynamic Load Rating Cr (N)
8500
Limiting speed for rotating shaft (n GW)
7000
Limiting speed for rotating outer ring (n GA)
6500
ECLASS number
23-05-21-90
ECLASS2 number
23-05-21-90
Medias description
Drawn cup roller clutch HFL, with bearing
Suffix description
L564Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication
