Specifications
Availability70 pcs
BrandINA
Item NumberHFL3030-L564 INA
Manufacturer Part Number0016002490962
Also known as
HFL3030
EAN4012802106732
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
30
Outer (D) MM
37
Width (B) MM
30
Inner (d) Inch
1.1811
Outer (D) Inch
1.4567
Width (B) Inch
1.1811
Weight (kg)
0.055
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Under roller diameter (F w) mm
30
Radial Static Load Rating C0r (N)
16900
Radial Dynamic Load Rating Cr (N)
11600
Limiting speed for rotating shaft (n GW)
4500
Limiting speed for rotating outer ring (n GA)
4500
ECLASS number
23-05-21-90
ECLASS2 number
23-05-21-90
Medias description

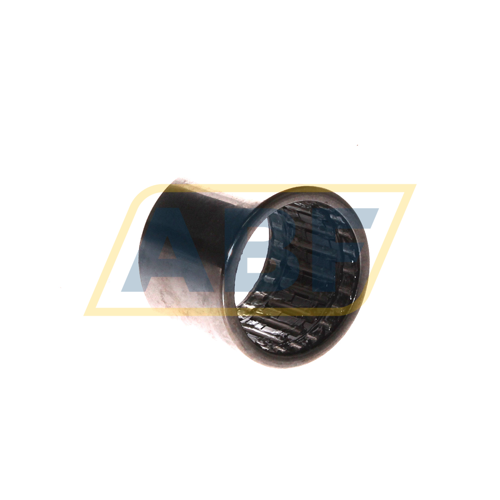

Drawn cup roller clutch HFL, with bearing
Suffix description
L564Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication
