Loading equivalents
Specifications
Availability77 pcs
BrandINA

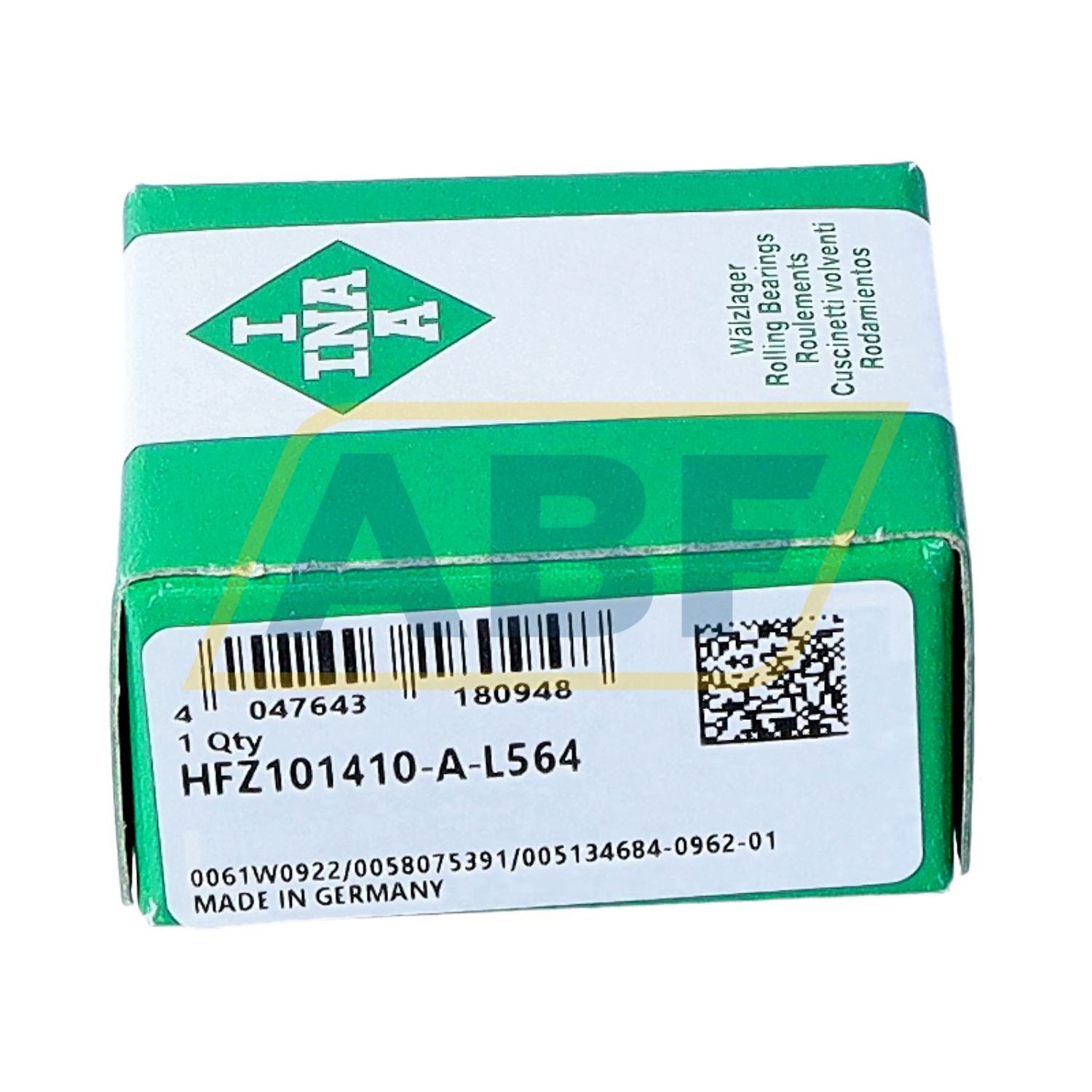

Item NumberHFZ101410-A-L564 INA
Manufacturer Part Number0051346840962
Also known as
HFZ101410
RC101410
EAN4047643180948
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
15,88
Outer (D) MM
22,23
Width (B) MM
15,88
Inner (d) Inch
0.625
Outer (D) Inch
0.875
Width (B) Inch
0.625
Weight (kg)
0.016
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Under roller diameter (F w) mm
15,875
Permissible torque (M d per)
19
Limiting speed for rotating shaft (n GW)
8500
Limiting speed for rotating outer ring (n GA)
5000
ECLASS number
23-05-21-90
ECLASS2 number
23-05-21-90
Suffix description
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
L564Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication
