Loading equivalents
Specifications
Availability55 pcs
BrandINA

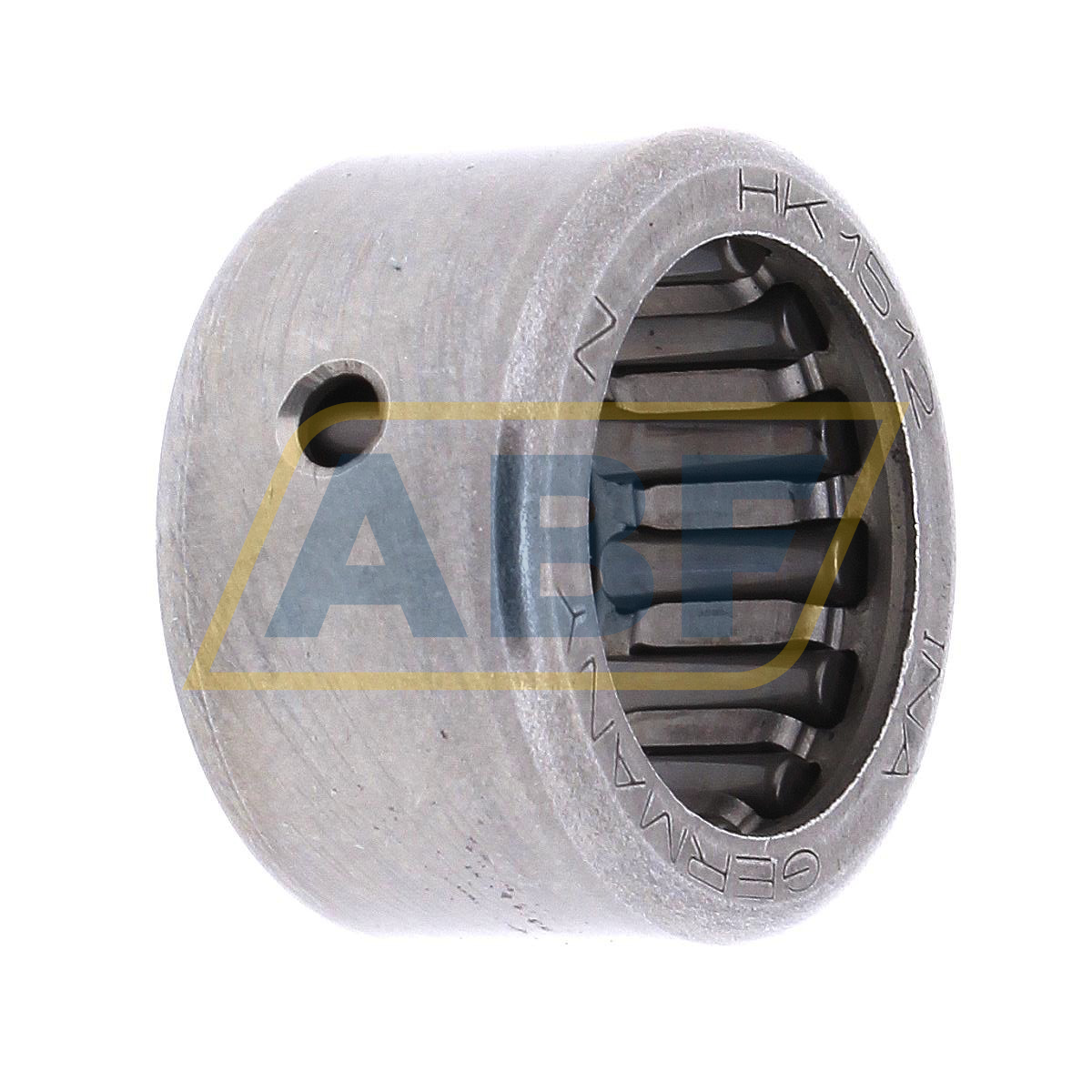

Item NumberHK1512-AS1-B INA
Manufacturer Part Number0037372090000
EAN4012802417623
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
15
Outer (D) MM
21
Width (B) MM
12
Inner (d) Inch
0.5906
Outer (D) Inch
0.8268
Width (B) Inch
0.4724
Weight (kg)
0.011
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Under roller diameter (F w) mm
15
Width (C) mm
12
Radial Static Load Rating C0r (N)
9400
Radial Dynamic Load Rating Cr (N)
7900
Limiting speed (n G)
16300
Limiting speed for grease lubrication (n G Grease)
9800
Reference speed (n ϑr)
12300
ECLASS number
23-05-09-05
ECLASS2 number
23-05-09-05
Medias description
Drawn cup needle roller bearing open end HK..-AS1-B, single row, with cage
Suffix description
AS1Needle Roller Bearing With Lubrication Hole(s) In The Outer Ring. A Figure Following The As Indicates The Number Of Holes
BThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
