Specifications
Availability307 pcs
BrandINA
Item NumberHK2012-B INA
Manufacturer Part Number0000592930000
EAN4012802417258

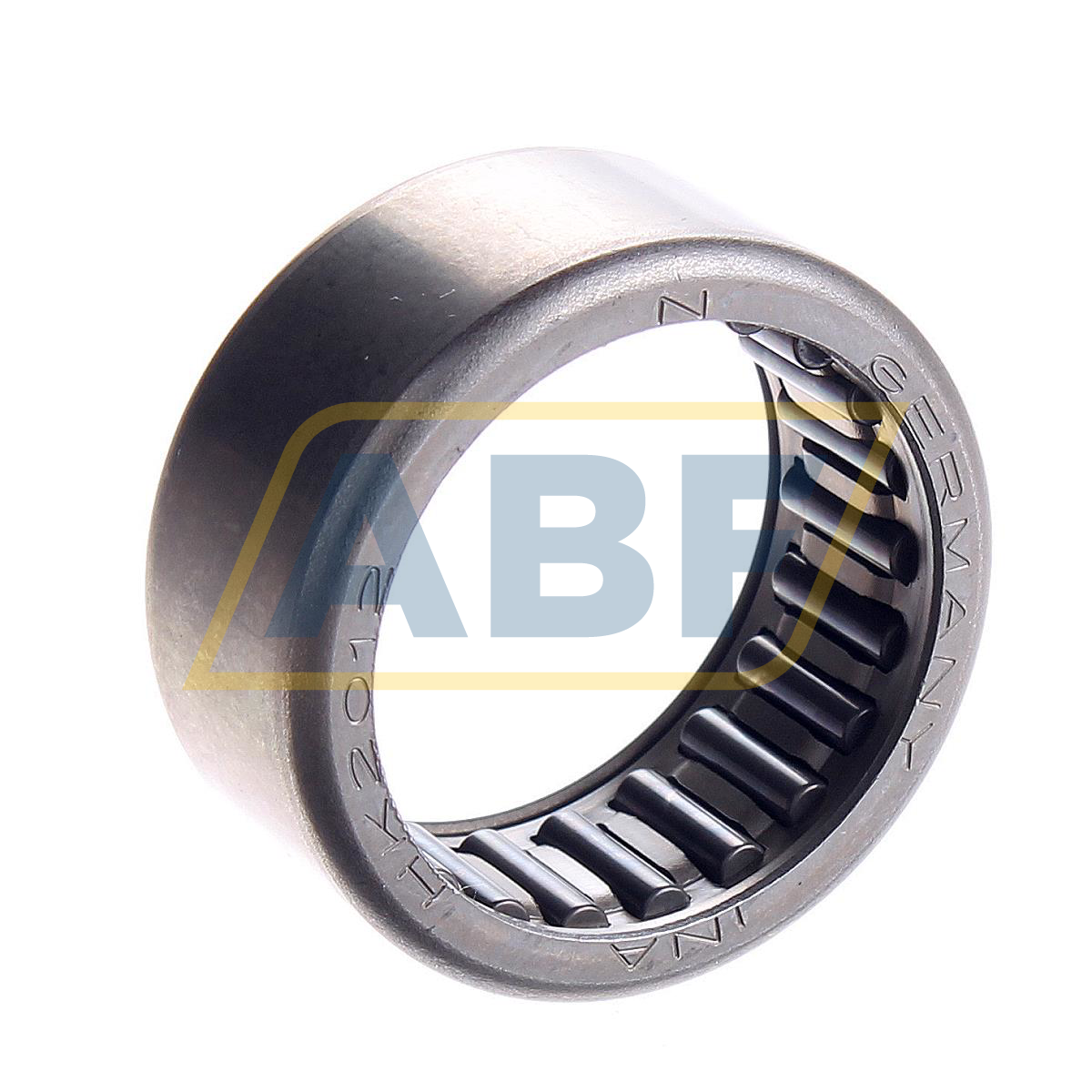

CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
20
Outer (D) MM
26
Width (B) MM
12
Inner (d) Inch
0.7874
Outer (D) Inch
1.0236
Width (B) Inch
0.4724
Weight (kg)
0.014
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Under roller diameter (F w) mm
20
Width (C) mm
12
Radial Static Load Rating C0r (N)
12100
Radial Dynamic Load Rating Cr (N)
8600
Limiting speed (n G)
12700
Limiting speed for grease lubrication (n G Grease)
7600
Reference speed (n ϑr)
9700
ECLASS number
23-05-09-05
ECLASS2 number
23-05-09-05
Medias description
Drawn cup needle roller bearings with open ends HK, to DIN 618/ISO 3245
Suffix description
BThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
