Specifications
Availability8 pcs
BrandINA
Item NumberHK2016-AS1-B INA
Manufacturer Part Number0035930880000
EAN4012802422641
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
20
Outer (D) MM
26
Width (B) MM
16
Inner (d) Inch
0.7874
Outer (D) Inch
1.0236
Width (B) Inch
0.6299
Weight (kg)
0.019
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Under roller diameter (F w) mm
20
Width (C) mm
16
Radial Static Load Rating C0r (N)
20100
Radial Dynamic Load Rating Cr (N)
12700
Limiting speed (n G)
12700
Limiting speed for grease lubrication (n G Grease)
7600
Reference speed (n ϑr)
9300
ECLASS number
23-05-09-05
ECLASS2 number
23-05-09-05
Medias description

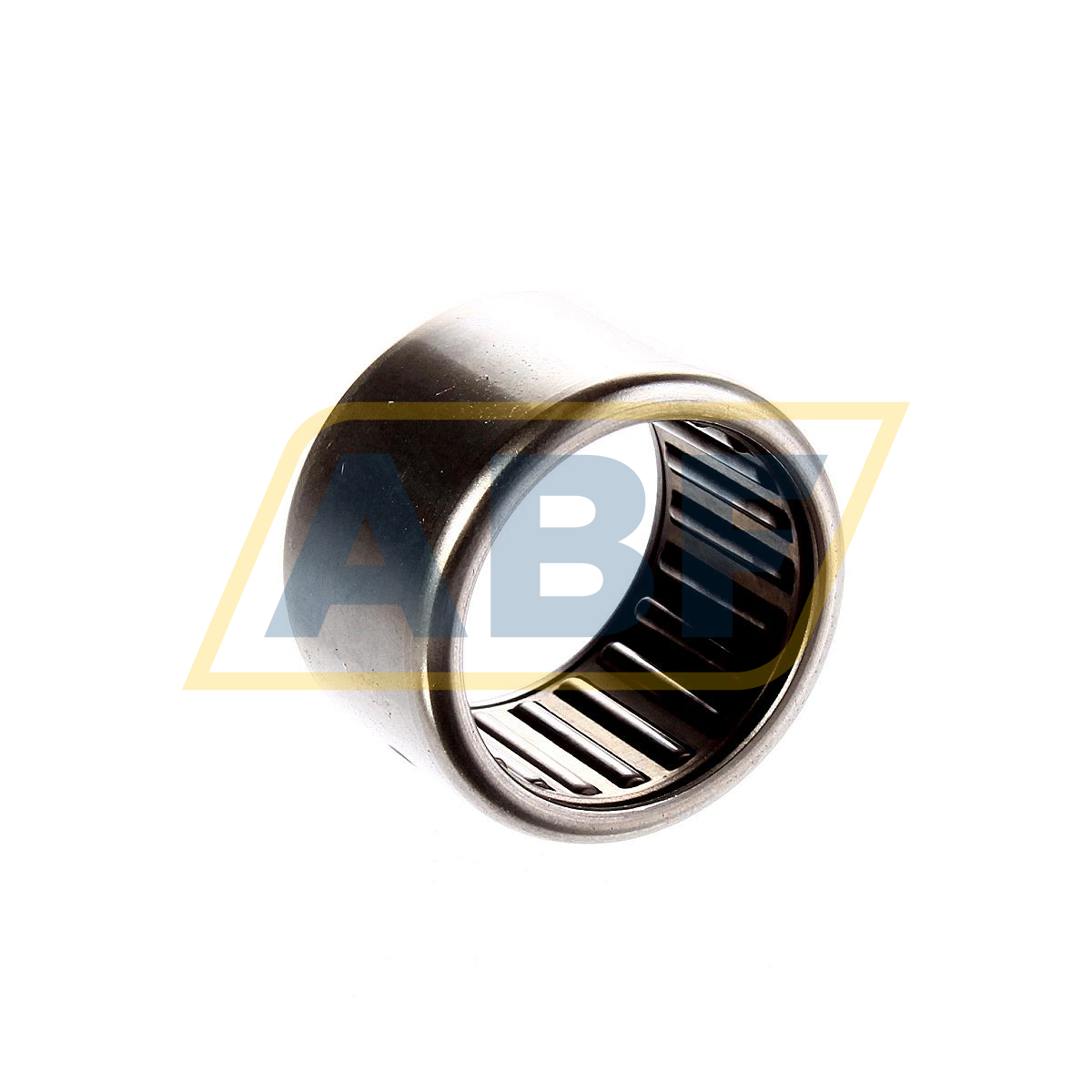

Drawn cup needle roller bearing open end HK..-AS1-B, single row, with cage
Suffix description
AS1Needle Roller Bearing With Lubrication Hole(s) In The Outer Ring. A Figure Following The As Indicates The Number Of Holes
BThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
