Specifications
Availability220 pcs
BrandINA

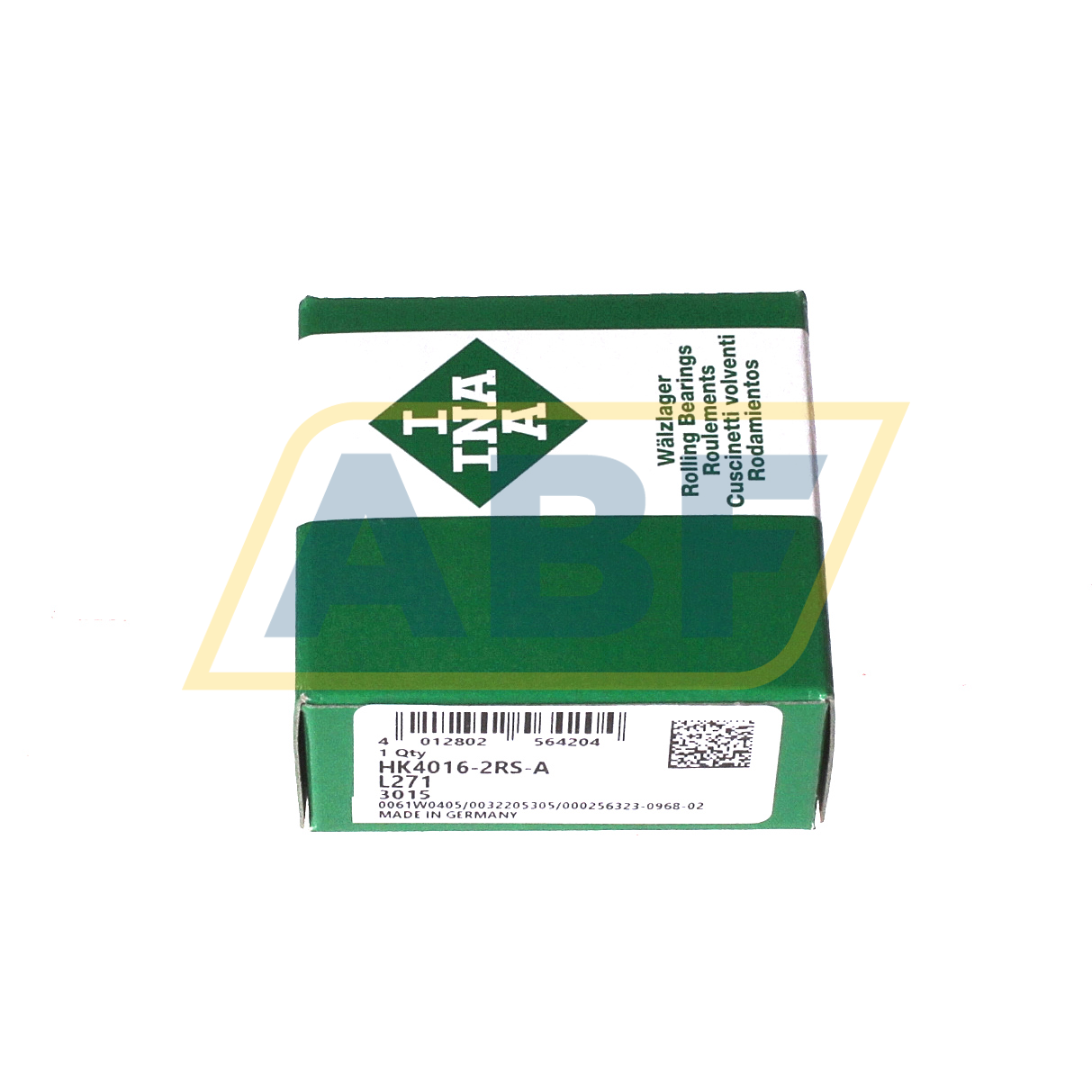

Item NumberHK4016-2RS-A-L271 INA
Manufacturer Part Number0002563230968
Also known as
HK4016 2RS
HK4016-2RS
HK4016-2RS-A
EAN4012802564204
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
40
Outer (D) MM
47
Width (B) MM
16
Inner (d) Inch
1.5748
Outer (D) Inch
1.8504
Width (B) Inch
0.6299
Weight (kg)
0.0345
Product Properties
Seal
2RS - Rubber Seal on Two Sides
Data from Schaeffler (medias)
Under roller diameter (F w) mm
40
Radial Static Load Rating C0r (N)
24300
Radial Dynamic Load Rating Cr (N)
14000
Limiting speed (n G)
3950
Limiting speed for grease lubrication (n G Grease)
3950
ECLASS number
23-05-09-05
ECLASS2 number
23-05-09-05
Medias description
Drawn cup needle roller bearings with open ends HK..-2RS, lip seals on both sides, to DIN 618
Suffix description
2RSLip Seals On Both Sides
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
