Loading equivalents
Specifications
Availability12 pcs
BrandINA

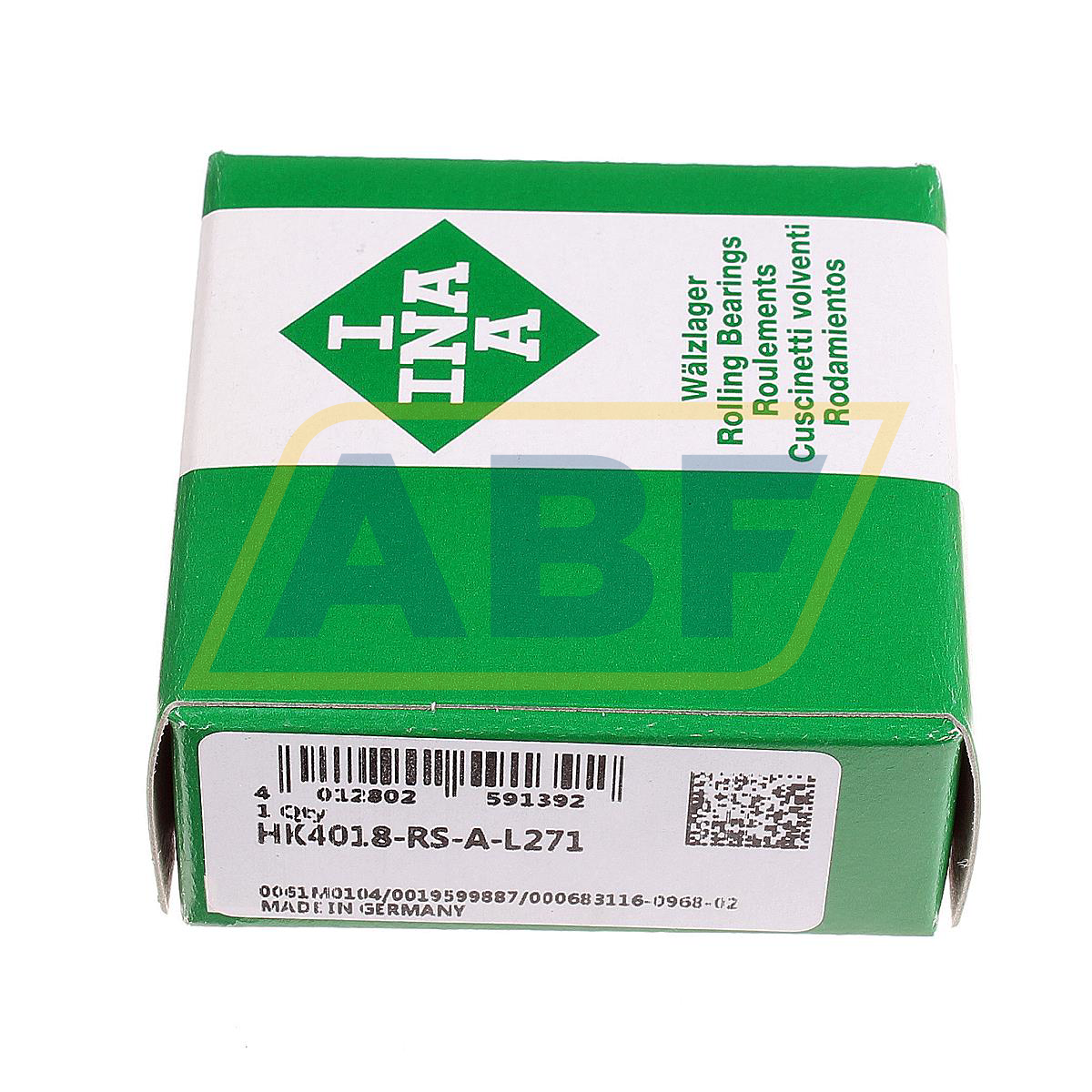

Item NumberHK4018-RS-A-L271 INA
Manufacturer Part Number0006831160968
EAN4012802591392
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
40
Outer (D) MM
47
Width (B) MM
18
Inner (d) Inch
1.5748
Outer (D) Inch
1.8504
Width (B) Inch
0.7087
Weight (kg)
0.047
Product Properties
Seal
RS - Rubber Seal on One Side
Data from Schaeffler (medias)
Under roller diameter (F w) mm
40
Width (C) mm
18
Radial Static Load Rating C0r (N)
38500
Radial Dynamic Load Rating Cr (N)
20000
Limiting speed (n G)
3950
Limiting speed for grease lubrication (n G Grease)
3950
ECLASS number
23-05-09-05
ECLASS2 number
23-05-09-05
Medias description
Drawn cup needle roller bearings with open ends HK..-RS, lip seal on one side, to DIN 618
Suffix description
RSOne Seal, Buna-N Rubber, Radial Type
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
