Specifications
Availability22 pcs expected on Fri 12 Jun
BrandINA

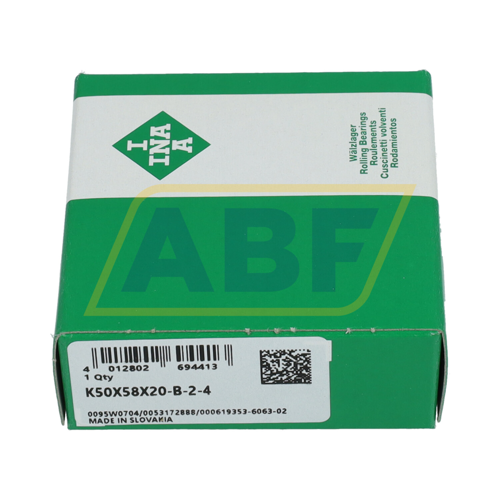

Item NumberK50X58X20-B/0-7 INA
Manufacturer Part Number0006193536063
EAN4012802694413
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
50
Outer (D) MM
58
Width (B) MM
20
Inner (d) Inch
1.9685
Outer (D) Inch
2.2835
Width (B) Inch
0.7874
Weight (kg)
0.065
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Outside diameter of needle roller complement (E w) mm
58
Width (B c) mm
20
Radial Static Load Rating C0r (N)
62000
Radial Dynamic Load Rating Cr (N)
35500
Limiting speed (n G)
9100
Reference speed (n ϑr)
5400
ECLASS number
23-05-09-04
ECLASS2 number
23-05-09-04
Medias description

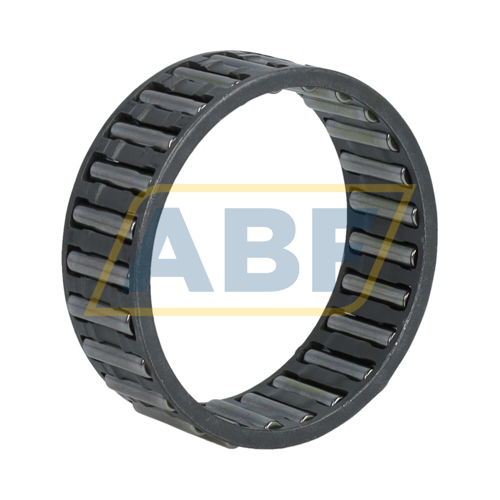

Needle roller cage assembly K, single row
Suffix description
BThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
