Loading equivalents
Specifications
Availability40 pcs
BrandINA

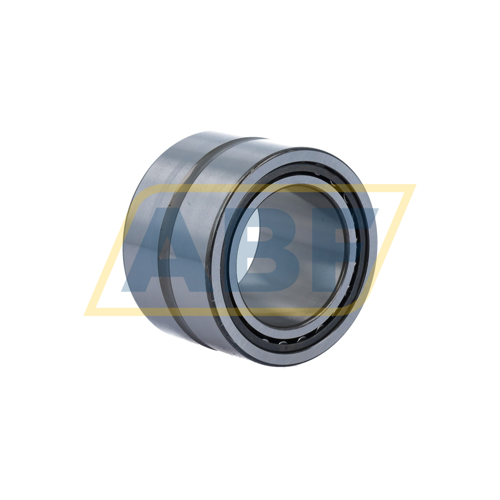

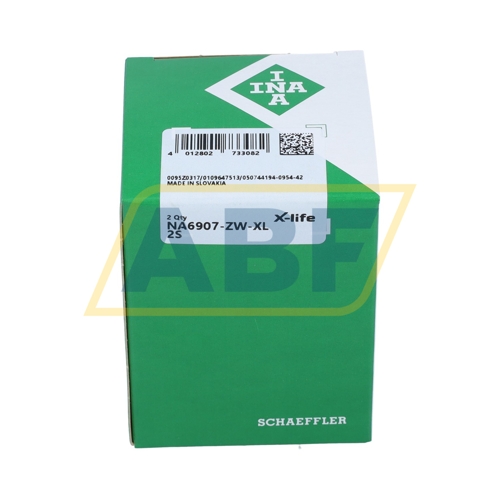

Item NumberNA6907-ZW-XL-2S INA
Manufacturer Part Number0507441940954
Also known as
NA6907-ZW-2S
EAN4012802733082
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
35
Outer (D) MM
55
Width (B) MM
36
Inner (d) Inch
1.378
Outer (D) Inch
2.1654
Width (B) Inch
1.4173
Weight (kg)
0.31
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Width (b) mm
36
Basic static load rating, radial (C 0r)
86000
Limiting speed (n G)
10700
Reference speed (n ϑr)
5900
ECLASS number
23-05-09-07
ECLASS2 number
23-05-09-07
Suffix description
ZWDouble Row Needle Roller And Cage Assembly
XLX-Life
2SIf Two Or More Bearings Are Located Adjacent To Each Other In A Planet (2, 3 Or 4 Bearings), These Must Be Ordered Using The Suffix 2S, 3S Or 4S So That They Are Sorted Together
