Specifications
Availability51 pcs
BrandINA
Item NumberNKXR20-Z-XL INA
Manufacturer Part Number0507917880000
Also known as
NKXR20-Z
EAN4012802736250
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
20
Outer (D) MM
30
Width (B) MM
30
Inner (d) Inch
0.7874
Outer (D) Inch
1.1811
Width (B) Inch
1.1811
Weight (kg)
0.084
Product Properties
Seal
Z - Steel Seal on One Side
Data from Schaeffler (medias)
Height (C) mm
30
Radial Static Load Rating C0r (N)
23800
Radial Dynamic Load Rating Cr (N)
18600
Axial Static Load Rating C0a (N)
53000
Axial Dynamic Load Rating Ca (N)
25000
Limiting speed (n G)
10000
Reference speed (n ϑr)
4200
ECLASS number
23-05-12-03
ECLASS2 number
23-05-12-03
Medias description

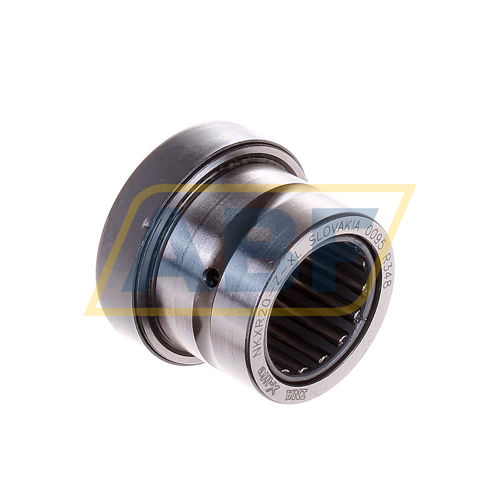

Needle roller/axial cylindrical roller bearings NKXR..-Z, axial component, single direction, to DIN 5429, with end cap, for grease lubrication
Suffix description
ZShield Of Pressed Sheet Steel On One Side Of The Bearing
