Specifications
Availability10 pcs
BrandINA

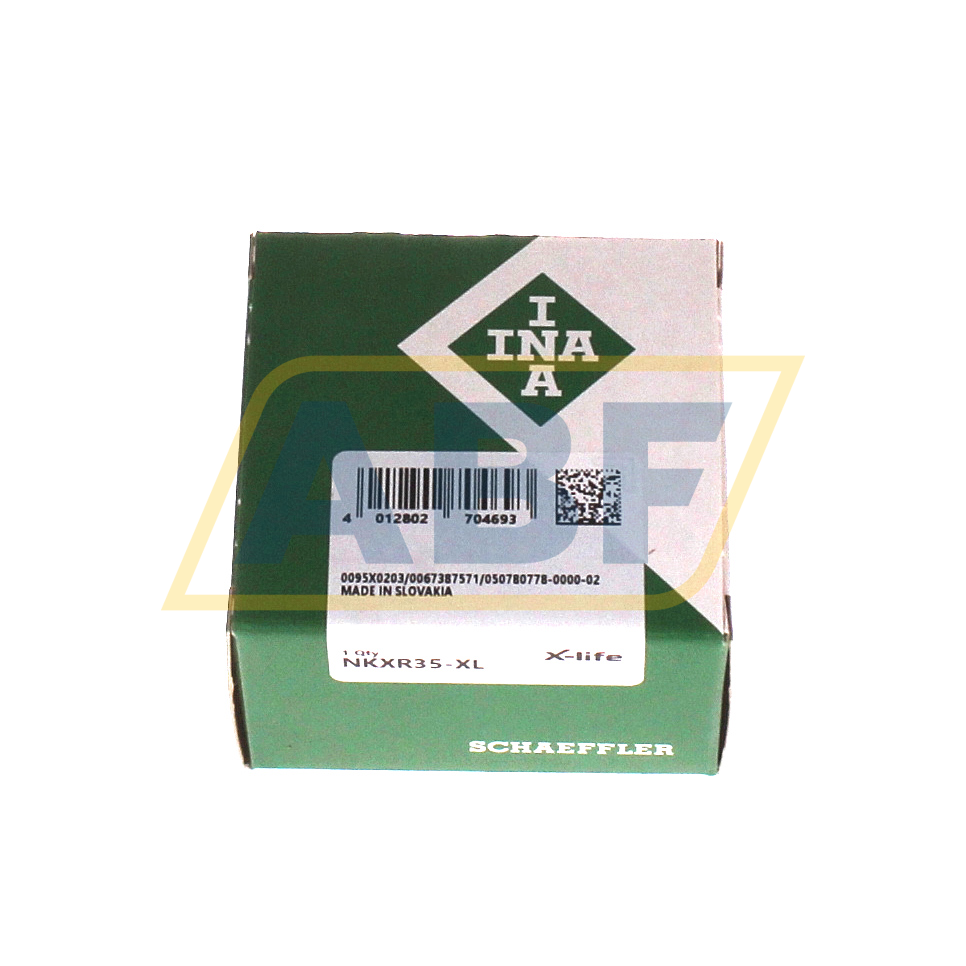

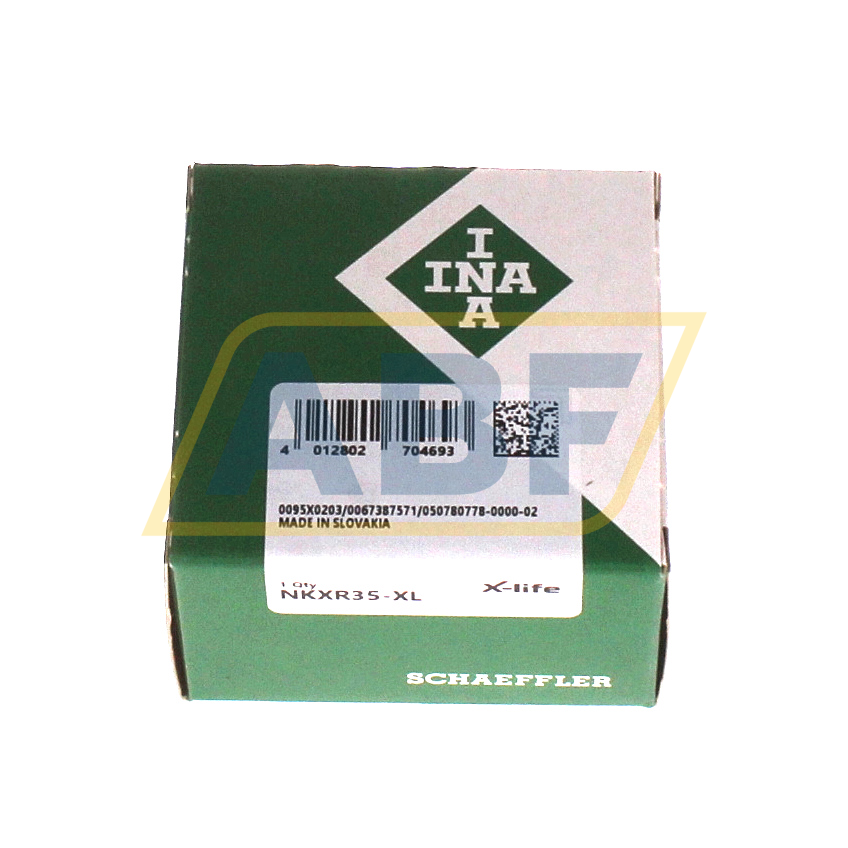

Item NumberNKXR35-XL INA
Manufacturer Part Number (MPN)0507807780000
Also known as
NKXR35
EAN4012802704693
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
35
Outer (D) MM
47
Width (B) MM
30
Inner (d) Inch
1.378
Outer (D) Inch
1.8504
Width (B) Inch
1.1811
Weight (kg)
0.156
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Height (C) mm
30
Radial Static Load Rating C0r (N)
41500
Radial Dynamic Load Rating Cr (N)
27500
Axial Static Load Rating C0a (N)
101000
Axial Dynamic Load Rating Ca (N)
39000
Limiting speed (n G)
6500
Reference speed (n ϑr)
2500
ECLASS number
23-05-12-03
ECLASS2 number
23-05-12-03
Medias description
Needle roller/axial cylindrical roller bearings NKXR, axial component, single direction, to DIN 5429, without end cap, for oil lubrication
