Specifications
Availability16 pcs
BrandINA

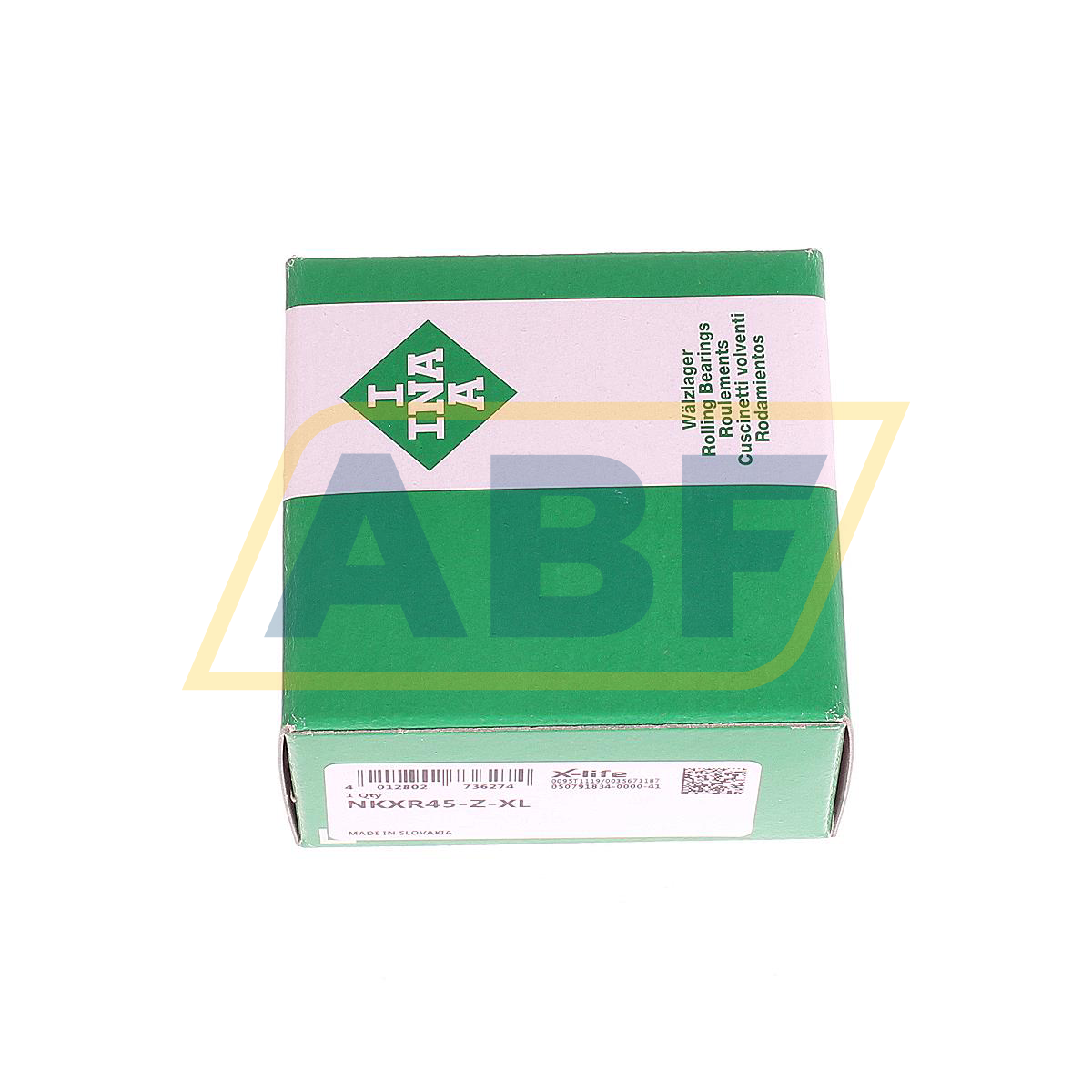

Item NumberNKXR45-Z-XL INA
Manufacturer Part Number0507918340000
Also known as
NAXR45X.Z
NKXR45-Z
EAN4012802736274
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Outer (D) MM
58
Width (B) MM
32
Outer (D) Inch
2.2835
Width (B) Inch
1.2598
Weight (kg)
0.26
Product Properties
Seal
Z - Steel Seal on One Side
Data from Schaeffler (medias)
Radial Static Load Rating C0r (N)
53000
Axial Static Load Rating C0a (N)
163000
Reference speed (n ϑr)
1900
ECLASS number
23-05-12-03
ECLASS2 number
23-05-12-03
Medias description
Needle roller/axial cylindrical roller bearings NKXR..-Z, axial component, single direction, to DIN 5429, with end cap, for grease lubrication
Suffix description
ZShield Of Pressed Sheet Steel On One Side Of The Bearing
