Specifications
Availability7 pcs
BrandINA

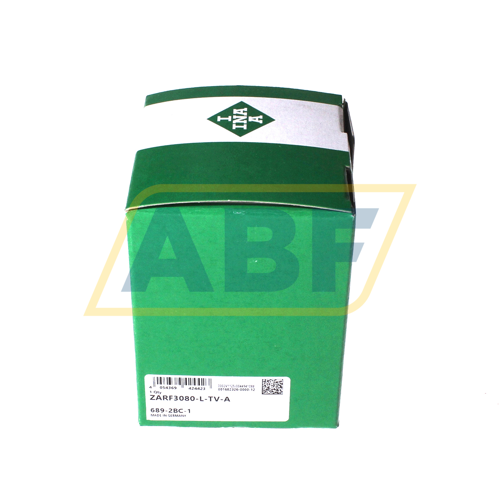

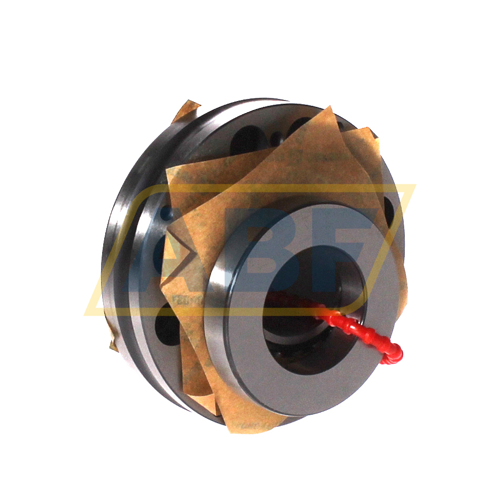

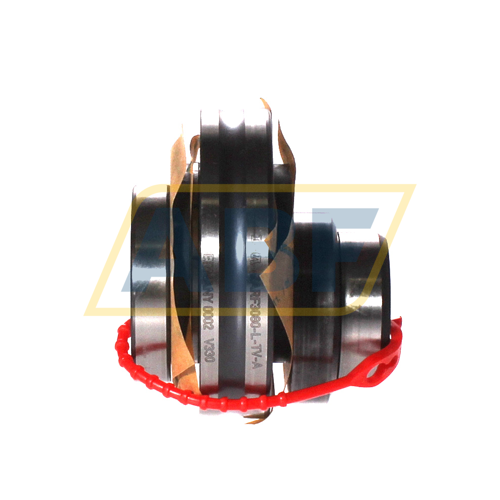

Item NumberZARF3080-L-TV-A INA
Manufacturer Part Number0016823260000
EAN4054369424423
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
30
Outer (D) MM
80
Width (B) MM
65
Inner (d) Inch
1.1811
Outer (D) Inch
3.1496
Width (B) Inch
2.5591
Weight (kg)
0.9
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Height (H) mm
65
Radial Static Load Rating C0r (N)
41500
Radial Dynamic Load Rating Cr (N)
24300
Axial Static Load Rating C0a (N)
101000
Axial Dynamic Load Rating Ca (N)
39000
Limiting speed for grease lubrication (n G Grease)
1800
Limiting speed for oil lubrication (n G Oil)
5500
ECLASS number
23-05-12-03
ECLASS2 number
23-05-12-03
Medias description
Needle roller/axial cylindrical roller bearings ZARF..-L, double direction, for screw mounting, long shaft locating washer
Suffix description
LLong Locating Washers
TVPolyamide Cage
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
