Specifications
Availability4 pcs
BrandINA

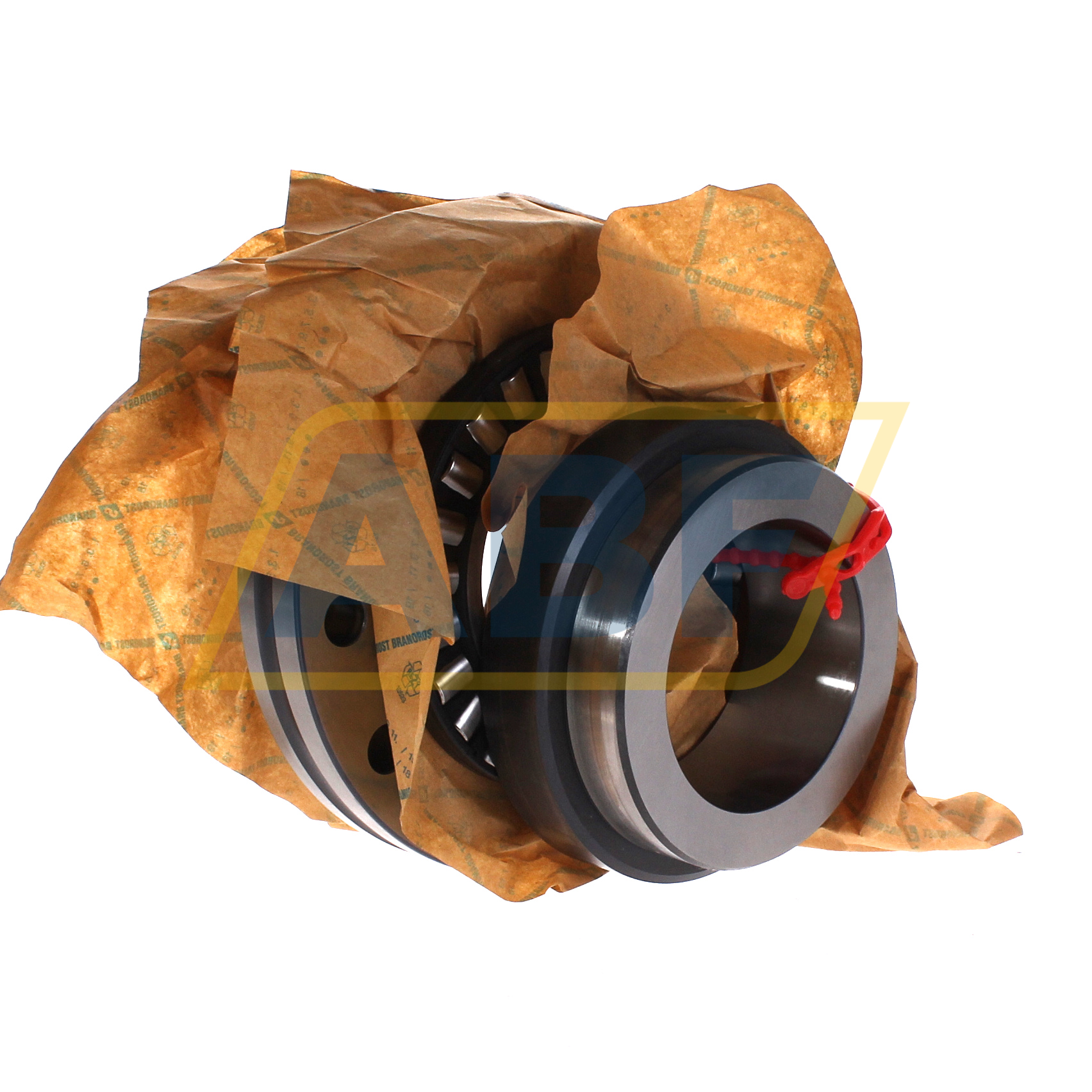

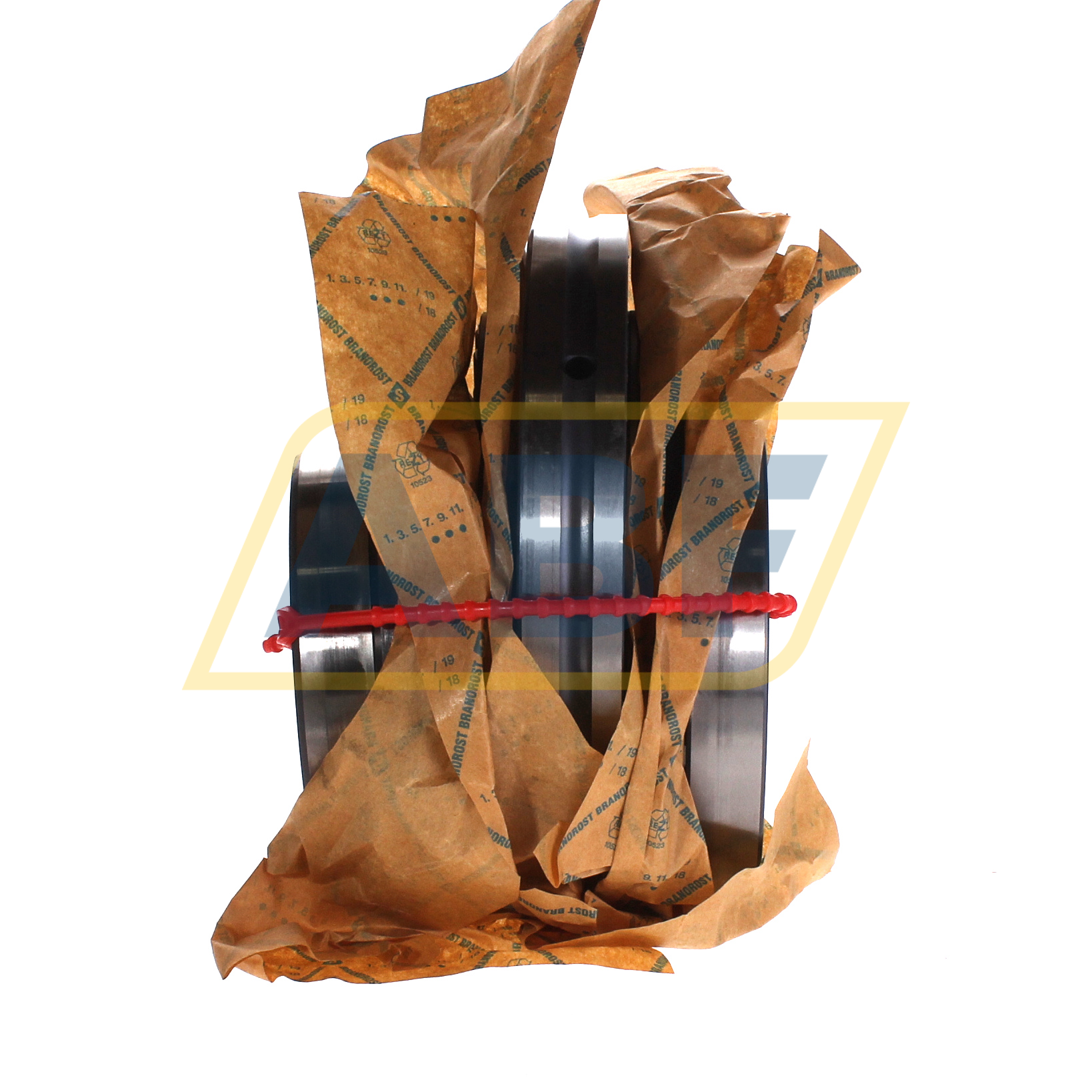

Item NumberZARF70160-L-TV-A INA
Manufacturer Part Number0016835510000
EAN4047643182577
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
70
Outer (D) MM
160
Width (B) MM
103
Inner (d) Inch
2.7559
Outer (D) Inch
6.2992
Width (B) Inch
4.0551
Weight (kg)
5.95
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Height (H) mm
103
Radial Static Load Rating C0r (N)
119000
Radial Dynamic Load Rating Cr (N)
56000
Axial Static Load Rating C0a (N)
630000
Axial Dynamic Load Rating Ca (N)
201000
Limiting speed for grease lubrication (n G Grease)
800
Limiting speed for oil lubrication (n G Oil)
2400
ECLASS number
23-05-12-03
ECLASS2 number
23-05-12-03
Medias description
Needle roller/axial cylindrical roller bearings ZARF..-L, double direction, for screw mounting, long shaft locating washer
Suffix description
LLong Locating Washers
TVPolyamide Cage
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
