Specifications
Availability6 pcs
BrandINA

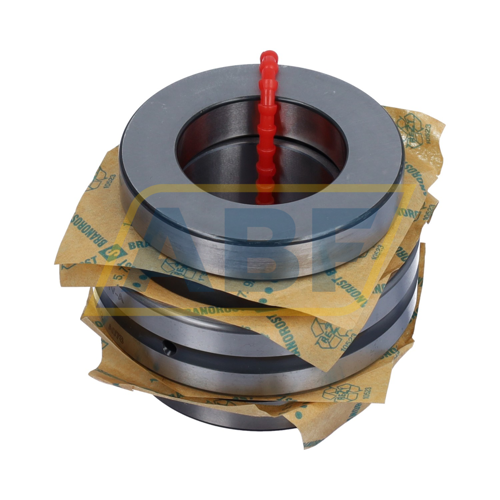

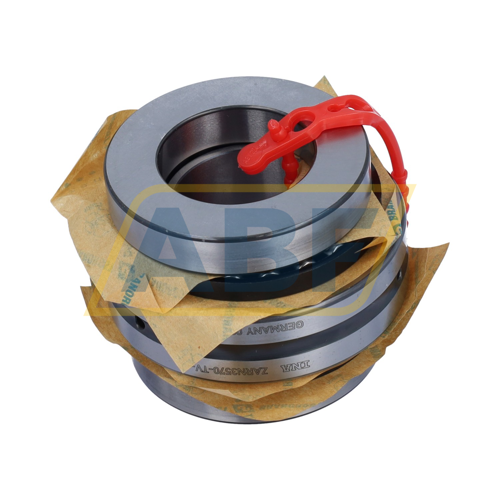

Item NumberZARN3570-TV-A INA
Manufacturer Part Number0016823420000
Also known as
AXZN3570TN
ZARN3570TN
EAN4012802439908
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
35
Outer (D) MM
70
Width (B) MM
54
Inner (d) Inch
1.378
Outer (D) Inch
2.7559
Width (B) Inch
2.126
Weight (kg)
0.8
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Height (H) mm
54
Radial Static Load Rating C0r (N)
47000
Radial Dynamic Load Rating Cr (N)
26000
Axial Static Load Rating C0a (N)
148000
Axial Dynamic Load Rating Ca (N)
56000
Limiting speed for grease lubrication (n G Grease)
1700
Limiting speed for oil lubrication (n G Oil)
4800
ECLASS number
23-05-12-90
ECLASS2 number
23-05-12-90
Medias description
Needle roller/axial cylindrical roller bearings ZARN, double direction
Suffix description
TVPolyamide Cage
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
