Specifications
Availability5 pcs
BrandINA

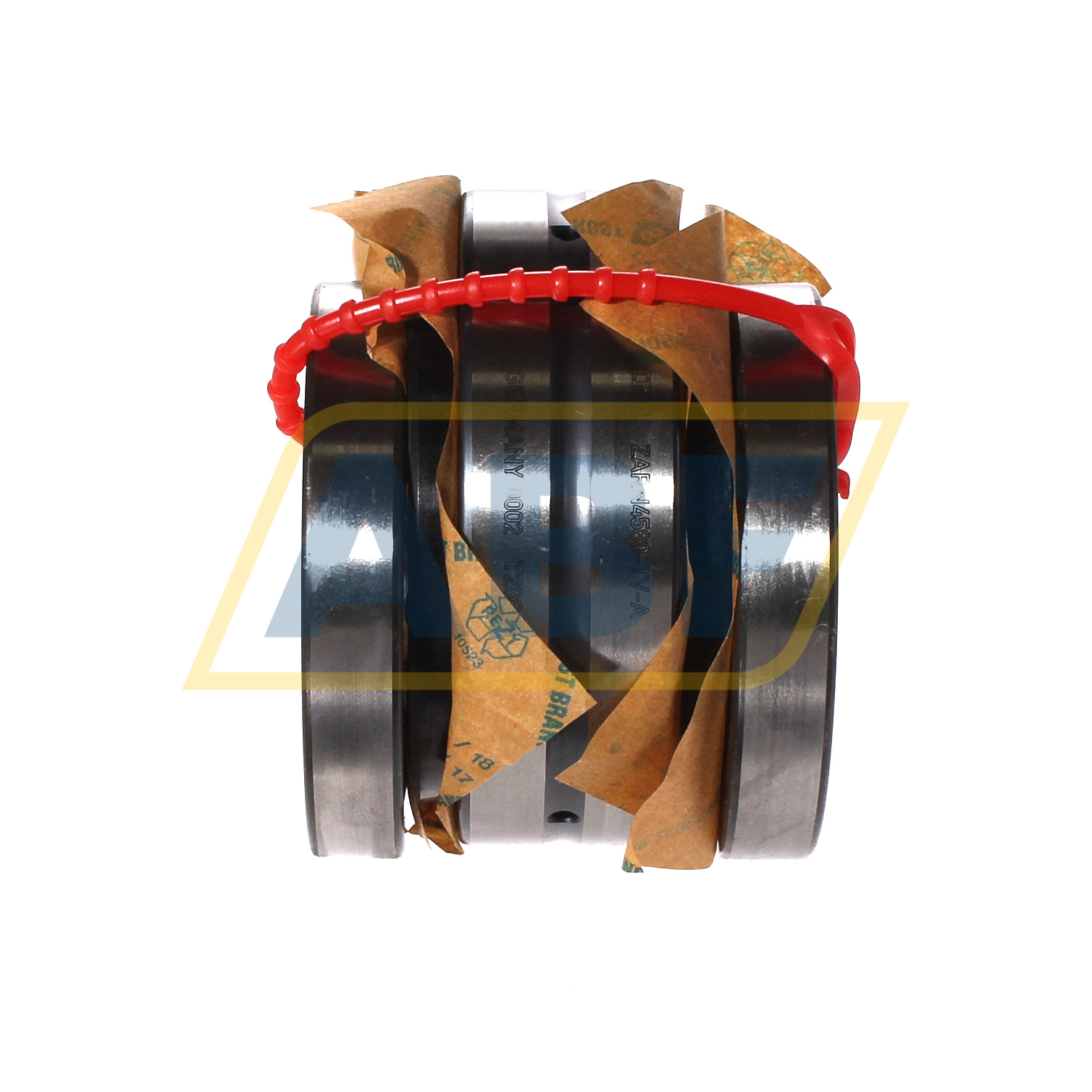

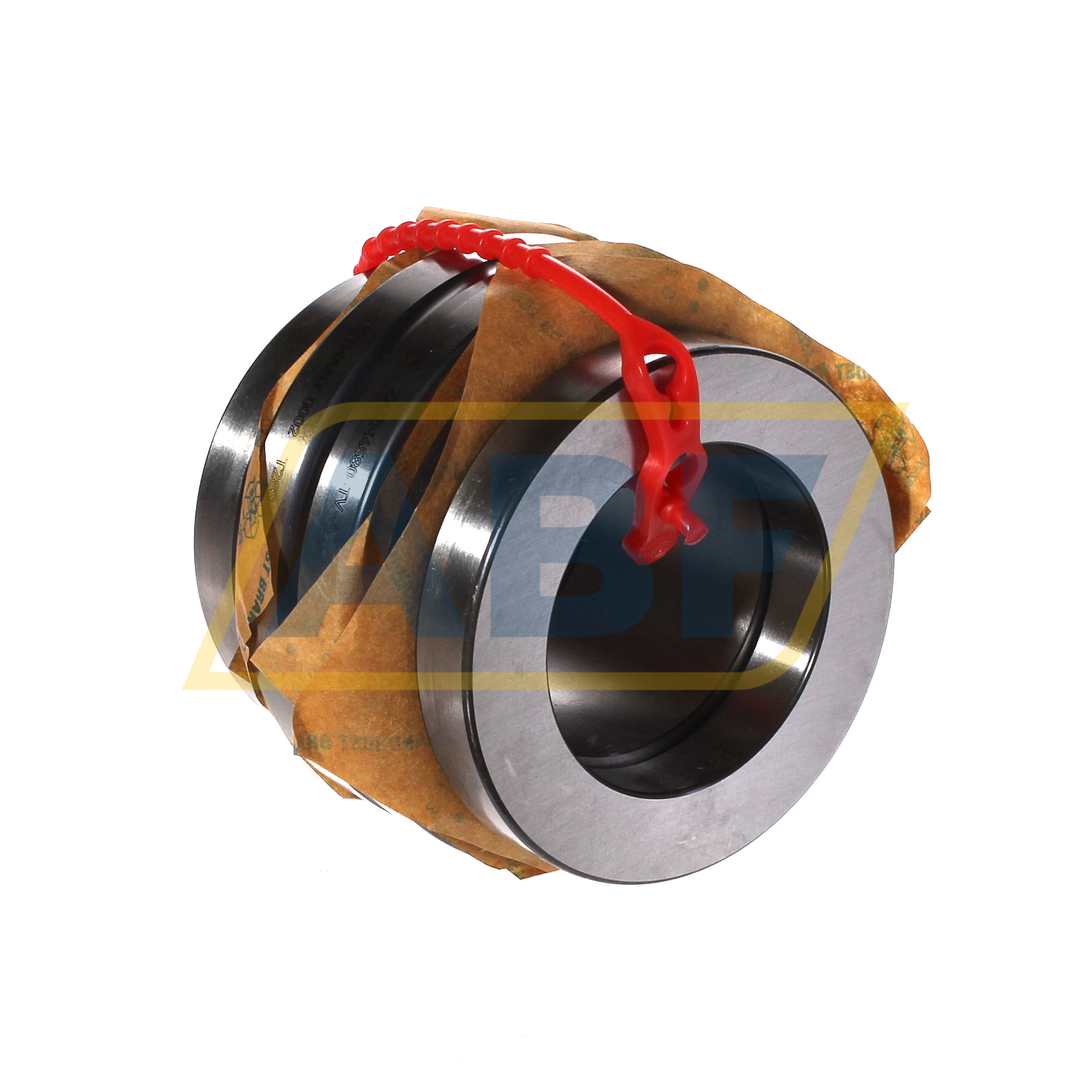

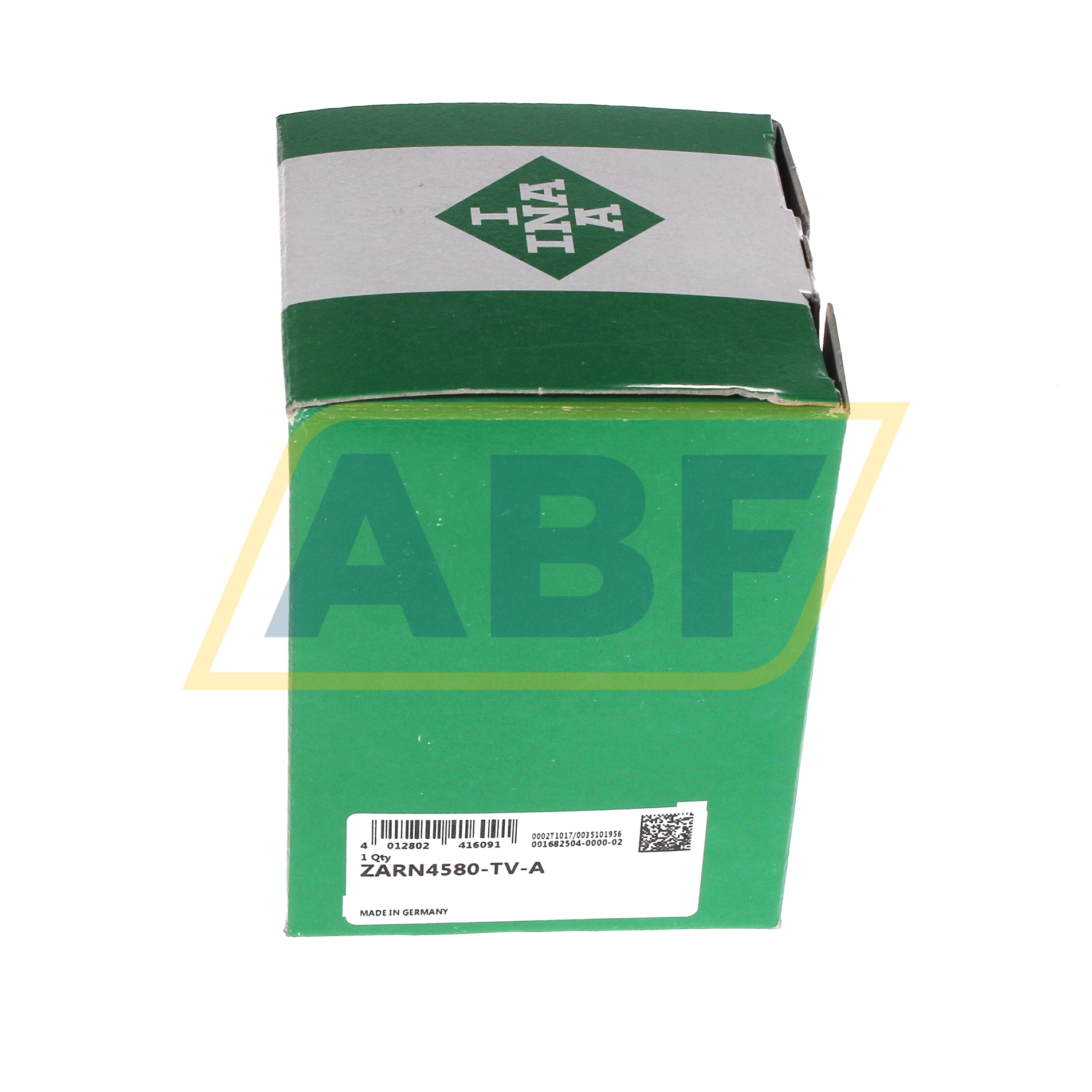

Item NumberZARN4580-TV-A INA
Manufacturer Part Number0016825040000
EAN4012802416091
CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM
45
Outer (D) MM
80
Width (B) MM
60
Inner (d) Inch
1.7717
Outer (D) Inch
3.1496
Width (B) Inch
2.3622
Weight (kg)
1.12
Product Properties
Seal
No Seal
Data from Schaeffler (medias)
Height (H) mm
60
Radial Static Load Rating C0r (N)
74000
Radial Dynamic Load Rating Cr (N)
38000
Axial Static Load Rating C0a (N)
177000
Axial Dynamic Load Rating Ca (N)
61000
Limiting speed for grease lubrication (n G Grease)
1500
Limiting speed for oil lubrication (n G Oil)
4000
ECLASS number
23-05-12-90
ECLASS2 number
23-05-12-90
Medias description
Needle roller/axial cylindrical roller bearings ZARN, double direction
Suffix description
TVPolyamide Cage
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
